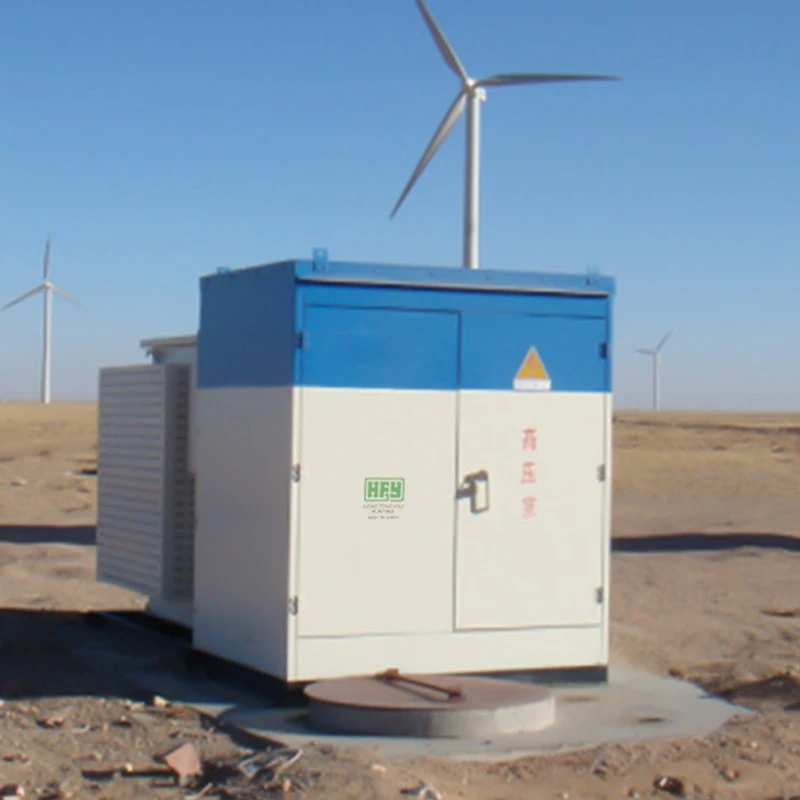

Hengfengshuai Wind Power Equipment Compact Transformer is a fully‑integrated three‑phase oil‑immersed ONAN/ONAF compact step‑up transformer specially engineered for on‑shore & near‑coastal wind turbine generator systems It adapts to variable wind output, frequent load fluctuation, harmonic disturbance and harsh outdoor field conditions. Available for both 50Hz and 60Hz grid requirements. Products have been delivered to USA, Canada, Chile, Brazil, Argentina, Vietnam, Philippines, Iraq, Kazakhstan, South‑Africa and other regions. Widely deployed for on‑shore wind farm turbine step‑up, distributed wind generation, remote wind micro‑grid, hybrid wind‑solar energy storage station, and auxiliary power for wind‑field infrastructure
This product complies with IEC/IEEE 60076‑16, IEEE C57.12.34, IEC 60076‑1/2/5, IEC 62271‑202 and global energy‑efficiency standards for renewable energy transformers Adopt fully‑sealed anti‑leakage tank construction; two optional versions: standard compact type and integrated protection compact version. Under standard operating environment, design service life reaches 30 years, factory warranty for 24‑month. The product is optimized for anti‑vibration capability, harmonic load endurance, short‑circuit withstand performance, salt‑fog corrosion resistance, wide‑temperature adaptability, small‑footprint layout and whole‑life O&M economy

Product Advantages of Wind Power Equipment Compact Transformer
Core is manufactured from high‑grade oriented CRGO silicon steel sheet with step‑lap stacking process, meeting international renewable transformer energy‑efficiency requirements. Low no‑load loss controls static energy consumption of wind farm; optimized loss curve maintains stable performance under 20%‑140% fluctuating wind turbine output load, reducing lifecycle operational cost
Optional integrated compact protection suite: HV vacuum load‑switch‑fuse assembly, bayonet fuses, surge arresters, gas relay, pressure‑relief valve, liquid level indicator and temperature monitoring module. No extra independent protection cabinet required, realizing compact all‑in‑one layout for wind turbine tower‑base installation, improving system fault isolation and operational stability
Fully‑sealed robotic welded tank with electrostatic epoxy anti‑corrosion coating; optional enhanced anti‑salt‑fog version achieves salt‑spray resistance ≥1200 hours. Suitable for coastal wind farms, desert wind zones, high‑altitude cold areas, dusty plateau environments. Zero‑oil‑leak integrated sealing design stabilizes insulating medium performance over long‑term field running
Optimized compact layout reduces footprint up to 48% compared with conventional European‑type prefabricated substation. Reinforced anti‑vibration structure specially adapted for wind turbine mechanical vibration; reinforced lifting lugs and foundation brackets, compatible with wind‑farm standard concrete foundation, shorten site installation and commissioning cycle, reduce civil‑engineering investment
Copper or aluminum winding optional: oxygen‑free copper winding provides excellent temperature‑rise performance, stronger anti‑short‑circuit and anti‑harmonic capacity for heavy‑duty wind working conditions; aluminum winding fits large‑volume wind‑farm EPC tender projects to balance total project budget. Rated operation winding temperature rise ≤60K, top‑oil temperature rise ≤55K.
Low‑noise & anti‑vibration optimization: complete vibration‑damping structure, sound level ≤58dB at 1‑meter measuring point, avoiding noise interference for wind‑farm surrounding residential zones.
Full‑scope factory acceptance tests, including ratio test, winding DC resistance test, dielectric withstand test, induced voltage test, partial‑discharge measurement, short‑circuit withstand test, harmonic simulation load‑loss test, gas‑relay function verification. Each unit comes with complete FAT factory test report before shipment.
| No. | Item | Specification & Model | Remarks |
|---|---|---|---|
| 1 | Core | High‑grade CRGO silicon steel sheet, step‑lap stacked core | Low magnetostriction, anti‑vibration, low noise |
| 2 | Primary & Secondary Winding | Copper / aluminum conductor, high‑temperature paper insulation, vacuum pressure impregnation | Anti‑harmonic, anti‑fluctuating‑load; customizable |
| 3 | Tank Enclosure | Carbon‑steel; 304 stainless‑steel optional; IP54 standard (IP65 optional) | Fully‑sealed welded anti‑leakage tank |
| 4 | Insulating Oil | Mineral transformer oil / biodegradable vegetable ester oil | Ester oil for eco‑sensitive wind‑farm zones |
| 5 | Tap Device | Off‑circuit tap‑changer, ±2×2.5% | Adjustment permitted only under power‑off condition |
| 6 | Protection Package (Integrated Compact Version) | HV vacuum load‑switch‑fuse combination, surge arrester, gas relay, pressure relief valve, oil‑level gauge, PT/CT for monitoring | Integrated protection for wind turbine step‑up application |
| 7 | Standard Fittings | Reinforced lifting lugs, wind‑farm mounting brackets, oil drain valve, oil‑sampling valve, grounding terminal, laser‑etched stainless‑steel nameplate | Matches on‑site wind‑farm installation requirements |
| 8 | Optional Accessories | Spare bushing kit, oil‑sampling tool set, temperature remote‑indicator, anti‑vibration damping pads, communication module for four‑remote monitoring | Quoted separately |
1. Tower‑Base Compact Step‑up Unit for Mountain Onshore Wind Farm Installed at the foundation of individual wind turbines in hilly and mountainous wind bases. Compact footprint adapts to narrow mountain terrain and limited transport conditions. Anti‑vibration design handles frequent wind fluctuation and turbine vibration, stepping turbine low‑voltage output to medium voltage for collector network.
2. Compact Transformer for Cold‑Climate Wind Farm (Mongolia, Siberia, Northern Kazakhstan) Customised for frigid wind sites with minimum ambient temperature down to ‑40℃. Low‑pour‑point insulating oil and heating tracing system are adopted for reliable cold start. Fully sealed structure prevents condensation and freeze‑thaw damage in long‑term winter operation.
3. Desert & Gobi Onshore Wind Farm for Central Asia & Middle East Dust‑tight and sand‑proof sealed enclosure for arid desert wind projects. Optimised thermal design withstands large temperature swings between day and night. Anti‑sand ingress protection reduces maintenance frequency for remote unattended wind farms.
4. Coastal & Tidal Flat Wind Farm with High Salt Spray For coastal wind sites with high humidity and salt fog. C5‑M heavy anti‑corrosion coating and enhanced pollution‑resistant bushings are equipped to resist marine salt spray corrosion, suitable for near‑shore wind clusters and intertidal zone wind projects.
5. High‑Altitude Wind Farm (Above 1000m) Enhanced insulation and creepage distance for thin‑air high‑altitude wind zones. Derating design matched to altitude requirements, stable insulation performance without flashover risk for plateau wind bases.
6. Distributed Wind & Microgrid Wind Power Project For small‑scale distributed wind clusters and isolated microgrids. Integrated compact structure combines transformer, switch and protection devices, supporting flexible grid connection and off‑grid power supply for remote villages and independent power plants.
7. Wind Farm Repowering & Turbine Retrofit Project Space‑saving compact design fits the original foundation layout during wind farm upgrade and turbine replacement. It can seamlessly connect with existing medium‑voltage collector loops to reduce civil modification work and shorten project construction cycle.
8. Nearshore / Floating Offshore Wind Turbine Step‑up System High vibration resistance, marine anti‑corrosion and high‑IP sealing design. Compact size fits limited space inside turbine tower or platform, coping with wave vibration, high humidity and salt mist in offshore wind projects.
9. Wind‑Solar Hybrid Base Collector Node Deployed at the power collection node of wind‑solar complementary bases. Adaptable to bidirectional and fluctuating power flow from mixed wind and PV sources, matching the unified medium‑voltage collection network of new energy bases.
10. Remote Unattended Wind Farm in Isolated Regions Low‑maintenance fully sealed structure, compatible with remote online monitoring. Suitable for sparsely populated, remote wind zones with inconvenient on‑site access, supporting long‑term unattended operation.
This product is strictly manufactured in accordance with mainstream international specifications for wind‑energy transformers. Corresponding certificates, test documents and third‑party type‑test reports can be provided per project requirements:
| Country / Region | System | Applicable Standards | Certifications |
|---|---|---|---|
| North America | ANSI/IEEE | IEEE C57.12.34, IEC/IEEE 60076‑16, IEEE C57.12.00, IEEE C57.12.90 | UL Listing, DOE efficiency compliance certificate |
| Canada | ANSI/IEEE | CAN/CSA C2.2, IEC/IEEE 60076‑16 | cUL / CSA certificate |
| EU / Middle East | IEC | IEC 60076‑1/-2/-5, IEC/IEEE 60076‑16, IEC 62271‑202 | CE marking, KEMA / CESI type‑test report |
| Latin‑America | IEC / ANSI | IEC/IEEE 60076‑16, IEEE C57.12.34 | UL or KEMA report, factory routine‑test certificate |
| Southeast‑Asia | IEC | IEC 60076 series, IEC/IEEE 60076‑16 | CE, local grid‑access document support |
| Africa | IEC | IEC 60076‑1/2/5, IEC/IEEE 60076‑16 | KEMA type‑test report, factory acceptance document |
| Routine Tests (free of charge) | Type Tests (chargeable) | Special Tests (chargeable) |
|---|---|---|
| 1) Winding DC resistance test | 1) Temperature‑rise test under wind‑type fluctuating‑load mode | 1) Anti‑harmonic special insulation performance test |
| 2) Voltage ratio measurement & vector‑group verification | 2) Full dielectric type‑test | 2) Winding hot‑spot temperature‑rise measurement |
| 3) Short‑circuit impedance & load‑loss measurement | 3) Sound‑level & anti‑vibration determination | 3) Capacitance‑to‑earth and inter‑winding capacitance measurement |
| 4) No‑load loss & no‑load current measurement | 4) Short‑circuit withstand capability test | 4) Dielectric dissipation‑factor measurement of insulation system |
| 5) Winding‑to‑earth DC insulation resistance measurement | 5) No‑load loss test under 90%‑110% rated‑voltage | 5) Transient over‑voltage transfer characteristic test |
| 6) Routine dielectric withstand test | 6) Gas‑relay & pressure‑relief‑valve functional test | 6) Zero‑sequence impedance measurement |
| 7) Off‑circuit tap‑changer operation test | 7) Mechanical vibration simulation test for wind‑turbine operating condition | |
| 8) Tank pressure‑sealing leakage test | 8) Bidirectional power‑flow simulation performance test | |
| 9) Insulating‑oil performance test | ||
| 10) Integrated protection component functional verification |
| No. | Test Items | Relevant Standards (IEC / IEEE) |
|---|---|---|
| 1 | Winding DC resistance measurement | IEC 60076‑1, IEEE C57.12.90 |
| 2 | Voltage ratio & vector‑group verification | IEC 60076‑1, IEEE C57.12.90, IEC/IEEE 60076‑16 |
| 3 | Short‑circuit impedance and load‑loss measurement | IEC 60076‑5, IEEE C57.12.90 |
| 4 | No‑load loss & excitation‑current measurement | IEC 60076‑1, IEEE C57.12.90 |
| 5 | Insulation resistance & dissipation‑factor test | IEC 60076‑3, IEEE C57.12.90 |
| 6 | Routine dielectric withstand test | IEC 60076‑3, IEEE C57.12.00 |
| 7 | Tap‑changer mechanical & electrical test | IEC 60076‑1 |
| 8 | Insulating oil performance test | IEC 60296, ASTM D117 |
| 9 | Special tests | |
| 9.1 | Anti‑harmonic & fluctuating‑load special test | IEC/IEEE 60076‑16 |
| 9.2 | Vibration & sound‑level determination | IEC 60076‑10, IEEE C57.12.90 |
| 9.3 | Short‑circuit withstand type‑test | IEC 60076‑5, IEEE C57.12.90 |
Target‑oriented design for wind‑energy complex working‑conditions to optimize full‑lifecycle cost Our wind‑power compact transformer adopts self‑developed anti‑harmonic, anti‑fluctuating‑load technical solution. Fully considering wind‑turbine frequent output swing, harmonic interference and field vibration characteristics. Compared to general‑purpose distribution transformers, it achieves stable performance under variable wind‑generation working‑conditions, design service‑life reaches 30‑years under standard maintenance, lowering long‑term replacement and maintenance expenditure. Products can be engineered complying with IEC, IEEE, IEC/IEEE 60076‑16 renewable‑energy dedicated standards, satisfying grid‑access acceptance requirements for global on‑shore and near‑coastal wind‑farm projects. UL, CSA, KEMA and other third‑party certificates can be applied on project‑basis
Whole‑process quality‑control & standardized factory acceptance for new‑energy equipment Production runs under ISO9001 quality‑management‑system. Full traceability control covers raw‑material procurement, incoming‑component inspection, winding assembly, tank welding and finished‑product testing. Every compact wind‑power transformer completes full‑set FAT test before shipment. Test records, inspection videos can be provided upon request; witness inspection by client or third‑party organization is supported to guarantee delivery quality for wind‑farm EPC projects.
High‑flexibility customization adapting diversified global wind‑farm site conditions Full OEM & ODM capacity available. Voltage‑combination, protection configuration, winding material, insulating‑oil category, enclosure anti‑corrosion grade, IP protection grade, altitude‑derating treatment, monitoring communication function and nameplate language can be configured in accordance with project drawing, local grid‑code, wind‑turbine parameters and foundation installation requirements. We support large‑volume wind‑farm EPC tender orders and small‑batch spare‑unit orders for operators & distributors. Matching MV switchgear, ring‑main‑units and auxiliary power‑distribution equipment can be supplied together for one‑stop procurement to reduce multi‑supplier communication interface cost.
Mature overseas delivery & stable supply‑chain for renewable‑energy export projects Our power‑transformer products are exported to more than 50 countries & regions. We accumulate abundant practical experience in on‑shore wind‑farm new‑energy projects across America, Latin‑America, Middle‑East, Africa and Southeast‑Asia. Familiar with export document preparation, heavy‑duty sea‑worthy reinforced packaging and international multi‑modal‑transport coordination. Standard configuration products can be delivered within 35‑45 working‑days; production lead‑time will be adjusted according to raw‑material supply and customization complexity. We keep updating production progress, inspection milestone and logistics information through whole project cycle for predictable cross‑border project execution.
Full‑cycle professional technical service for wind‑energy projects Pre‑sales engineering team provides targeted configuration optimization suggestion based on wind‑turbine capacity, generator‑side voltage, collection‑grid parameters, site altitude, temperature, salt‑fog corrosion class and load fluctuation characteristics. After‑delivery we provide installation guidance, wiring and commissioning technical documents. Upon written fault notice we deliver initial troubleshooting proposal within 12‑hours and support remote diagnosis. On‑site technical support can be negotiated for large‑scale wind‑farm EPC projects. Complete technical datasheets, drawings and test‑reports are supplied for on‑site commissioning, routine maintenance and grid‑acceptance work.
Long‑term partnership‑oriented cooperation mode Beyond single‑unit equipment supply, we deliver integrated new‑energy power‑solution covering technical quotation, type‑selection, equipment supply and after‑sales‑service for wind‑farms, wind‑solar hybrid stations and distributed‑wind projects. We balance equipment performance, procurement‑capital and whole‑project construction‑efficiency to build stable win‑win partnership with global power utilities, renewable‑energy EPC contractors, engineering institutes and distributors.
Get A Quote
Q1: What is the design service‑life of HFS wind‑power compact transformer?
A: Under rated working‑condition, ambient temperature range ‑40℃ ~ +45℃, avoiding continuous severe overload and with regular maintenance, design service‑life reaches 30‑years. Actual service‑life is affected by site salt‑fog corrosion degree, wind‑turbine frequent fluctuation‑load, harmonic content and sealing‑condition.
Q2: What is the difference between standard compact version and integrated‑protection compact version?
A: Integrated‑protection compact version integrates HV load‑switch‑fuse set, surge arrester, gas relay and monitoring elements, realizing internal fault rapid isolation without external separate protection cabinet, which is preferred for tower‑base compact layout wind‑turbine projects. Standard compact version reserves external interface for matching client‑existing wind‑farm high‑voltage protection devices, suitable for projects with unified central‑protection configuration.
Q3: Can this transformer adapt for both 50Hz and 60Hz wind‑farm grids?
A: Yes. We will optimize core magnetic‑circuit design and loss parameters accordingly, and customize voltage‑ratio to match local wind‑farm grid‑specifications for either 50Hz or 60Hz system.
Q4: What is lead‑time for bulk wind‑farm tender orders?
A: Standard configuration compact transformer: 35‑45 working‑days. Customized version with stainless‑steel tank, vegetable ester insulating‑oil, high‑altitude derating, enhanced C5‑M salt‑fog anti‑corrosion: 50‑65 working‑days.
Q5: Is enhanced salt‑fog anti‑corrosion coating standard configuration?
A: Standard tank coating satisfies general inland plateau wind‑farm environment. For coastal near‑shore wind‑farm, enhanced C5‑M anti‑corrosion version with ≥1200‑hour salt‑spray test needs to be clearly specified during RFQ inquiry phase.
Q6: What special working‑conditions should be considered for wind‑power compact transformers compared with ordinary distribution transformers?
A: Wind‑energy equipment faces frequent fluctuating output load, harmonic current from generator converter, mechanical vibration from wind‑turbine set, wide ambient‑temperature swing. Our product strengthens anti‑harmonic winding design, anti‑vibration tank‑structure and enhanced short‑circuit‑withstand capacity to cope with these special new‑energy working‑conditions.
Q7: Does this compact transformer support high‑altitude site application?
A: Yes. For elevation above 1000 m, altitude‑derating design is required. Please offer project site altitude data during inquiry so we can adjust insulation margin and cooling capacity accordingly.
| No. | Item | Unit | Parameter |
|---|---|---|---|
| 1 | Manufacturer | — | Hengfengshuai Electric |
| 2 | Product Model | — | Wind Power Equipment Compact Transformer (Three‑Phase) |
| 3 | Applicable Standards | — | IEC/IEEE 60076‑16; IEEE C57.12.34; IEC 60076‑1/2/5; IEC 62271‑202 |
| 4 | Energy Efficiency Standard | — | Global renewable‑energy transformer efficiency requirements |
| 5 | Rated Capacity | kVA | 800‑5750 (customizable according to wind‑turbine MW grade) |
| 6 | Rated High‑Voltage | kV | 6‑35kV (10kV /35kV mainstream; custom voltage available) |
| 7 | HV Tap Range | % | ±2×2.5% (Off‑circuit tap‑changer) |
| 8 | Rated Low‑Voltage | kV | 0.69 /1.14 (generator‑side, customizable) |
| 9 | Vector Group | — | Dyn11 / DYn11 (selectable) |
| 10 | Frequency | Hz | 50 / 60 |
| 11 | Phase | — | Three‑phase |
| 12 | Cooling Method | — | ONAN oil‑immersed self‑cooled; ONAF forced‑air‑cooling optional |
| 13 | Installation Type | — | Outdoor ground‑mount compact layout for wind‑farm site |
| 14 | Insulation Class | — | Class A |
| 15 | Winding Material | — | Oxygen‑free copper winding; aluminum winding optional |
| 16 | Insulating Fluid | — | Non‑PCB mineral transformer oil; FR3 vegetable ester oil optional |
| 17 | HV Bushing | — | Porcelain bushing; polymer composite bushing optional |
| 18 | LV Bushing | — | Porcelain bushing; polymer composite bushing optional |
| 19 | Short‑circuit Impedance | % | 6.5% (±10%, customizable for wind‑farm short‑circuit coordination) |
| 20 | No‑load Loss (typical for 2500kVA) | W | 1480 |
| 21 | Load Loss (75℃, typical for 2500kVA) | W | 13200 |
| 22 | No‑load Current | % | 0.7% |
| 23 | Sound Level (1‑meter) | dB | ≤58 |
| 24 | Lightning Impulse Withstand HV / LV | kV | 200 / 50 |
| 25 | Power‑frequency Withstand HV / LV | kV | 85 / 20 |
| 26 | Temperature‑Rise Winding / Top‑Oil | K | 60K / 55K |
| 27 | Overall Dimension L × W × H; Total Weight; Oil Charge | mm / kg / kg | Customized according to capacity |
| 28 | Ambient Conditions Max ambient temp; Operating temp; Relative humidity; Corrosion‑class; Max altitude | °C / °C / — / — / m | +45℃; ‑40 ~ +45℃; <95% non‑condensing; ISO‑12944‑2 C3 (C5‑M coastal optional); ≤4000 (derating required above 1000 m) |
| 29 | Standard Accessories | — | Reinforced lifting lugs, wind‑farm mounting bracket, oil‑drain & sampling valve, pressure‑relief valve, grounding terminal, stainless‑steel laser‑etched name‑plate |
| 30 | Tank Pressure‑sealing Test | kPa | 70kPa, hold 1‑hour without leakage |
| 31 | Warranty Period | month | 24 (negotiable for large wind‑farm EPC projects) |
| 32 | Packaging & Shipment | — | Sea‑worthy reinforced container‑packaging; Loading port: Qingdao; EXW / FOB available |
| 33 | Type‑Test Report | — | Available upon client request |
| 34 | Optional Structure | — | Integrated‑protection compact version / Standard compact version |
Need a customized solution for your project?
Please provide below technical information for accurate quotation and drawing confirmation:
* Rated Capacity (match wind‑turbine generator MW rating)
* Primary & Secondary rated voltage (specify generator‑side LV and wind‑farm collection‑network HV)
* Frequency: 50Hz or 60Hz
* Structure type: Integrated‑protection compact version / Standard compact version
* Winding Material: Copper winding / Aluminum winding
* Insulating Oil: Mineral transformer oil / Vegetable ester environmental‑friendly oil
* Tank & Enclosure Material: Carbon‑steel / 304 stainless‑steel
* Application Environment: Inland wind‑farm / Coastal near‑shore anti‑salt‑fog grade; site altitude; max & min ambient‑temperature
* Tap‑changer requirement: ±2×2.5% or other custom tap‑range
* Protection & monitoring function requirement: gas‑relay, remote‑temperature‑monitoring, four‑remote communication or not
* Certificate requirement: UL/cUL/CSA/KEMA / only factory FAT‑test report
* Quantity, destination port, special sea‑worthy‑packaging requirement, name‑plate‑language, client‑standard drawing or wind‑utility specification requirement
