Product advantages

---

13.8 KV Distribution Transformer Global Certification Standards
Our 13.8 KV Distribution Oil Transformer complies with international high-voltage power equipment standards and American grid industry specifications. The product strictly follows IEC 60076 international transformer standards, ANSI C57.12 American standard and GB/T 1094 national standards. It has obtained CE certification (LVD/EMC) and ISO9001 quality management system certification. All products pass strict professional tests including power frequency withstand voltage test, partial discharge test, short-circuit resistance test, temperature rise endurance test and insulation performance test, fully meeting 13.8kV grid access and safety operation standards in various countries.

13.8 KV Distribution Transformer Exported Countries & Market Coverage
With standard 13.8kV high-voltage specification, stable grid adaptability and complete qualification certifications, our 13.8KV Distribution Oil Transformer has been widely exported to global regions with 13.8kV grid systems. It has stable long-term operation cases in North America (USA, Canada), Latin America (Mexico, Brazil, Argentina, Peru), Southeast Asia (Philippines, Indonesia, Malaysia), Middle East (UAE, Saudi Arabia, Kuwait) and Africa (South Africa, Nigeria, Kenya). The product perfectly adapts to 60Hz mainstream grid frequency and local high-voltage power grid operation norms, gaining widespread recognition in overseas high-voltage distribution projects.

13.8 KV Distribution Transformer Core Product Features
1. Professional 13.8kV High-Voltage Resistant Design: Adopts high-grade insulating materials and reinforced winding insulation structure, specially optimized for 13.8kV medium-high voltage working conditions. It has excellent overvoltage resistance and insulation stability, effectively avoiding insulation breakdown and flashover faults caused by grid voltage fluctuation, ensuring long-term safe operation of high-voltage grid.
2. Low Loss & High Energy-Saving Performance: Equipped with high-quality grain-oriented silicon steel sheet core and high-purity copper winding. The optimized electromagnetic circuit design greatly reduces no-load loss and load loss, reaching international high energy-saving level. It effectively lowers long-term power transmission and distribution consumption for high-voltage grid systems.
3. Reliable Oil-Immersed Cooling & Heat Dissipation: Adopts mature ONAN natural oil circulation cooling system, with scientific internal oil circuit layout and large-area heat dissipation structure. It realizes uniform and efficient heat dissipation inside the equipment, effectively controls temperature rise under full-load and intermittent overload operation, and delays insulation aging.
4. Strong Anti-Interference & Anti-Fault Capability: Reinforced winding fastening structure enhances short-circuit impact resistance, preventing winding deformation and displacement caused by instantaneous grid short circuit. The optimized vibration reduction and anti-harmonic design suppress electromagnetic interference, ensuring stable output in complex high-voltage grid environments.
5. Excellent All-Weather Environmental Adaptability: The outer oil tank adopts high-strength steel plate and anti-corrosion electrostatic spraying process, with outstanding waterproof, dustproof, rust-proof and anti-ultraviolet performance. It can stably adapt to high temperature, low temperature, humid rainy and sandstorm environments, suitable for outdoor long-term unattended operation.

13.8 KV Distribution Transformer Advantages
1. Standard High-Voltage Compatibility & Wide Applicability: Strictly manufactured in accordance with 13.8kV international general high-voltage standard, perfectly matching American standard and global mainstream 13.8kV power grid systems. It can quickly pass local grid inspection and project acceptance, with no market access barriers.
2. High Operation Stability & Low Maintenance Cost: Mature high-voltage oil-immersed structure and high-quality accessories ensure low failure rate and strong operational stability. The fully sealed oil tank structure avoids insulating oil deterioration and leakage, greatly reducing later maintenance workload and operation cost.
3. Excellent Cost-Performance & Long-Term Benefit: Low energy loss design effectively reduces long-term grid operation power consumption. With stable performance and long service life, it balances initial investment and long-term operation benefits, bringing significant economic value for high-voltage power distribution projects.
4. Safe & Reliable Grid Operation: Multiple protection designs of overvoltage, overcurrent, short circuit and over-temperature effectively avoid high-voltage operation faults. It ensures safe and stable power supply for industrial production and municipal power grids, reducing power failure and safety accident risks.
5. Flexible Customization & Complete Global Service: Support customized capacity, low-voltage grade, wiring group and protection configuration according to customer project requirements. We provide complete certification documents, multilingual technical manuals and professional global after-sales technical support to meet personalized overseas project needs.

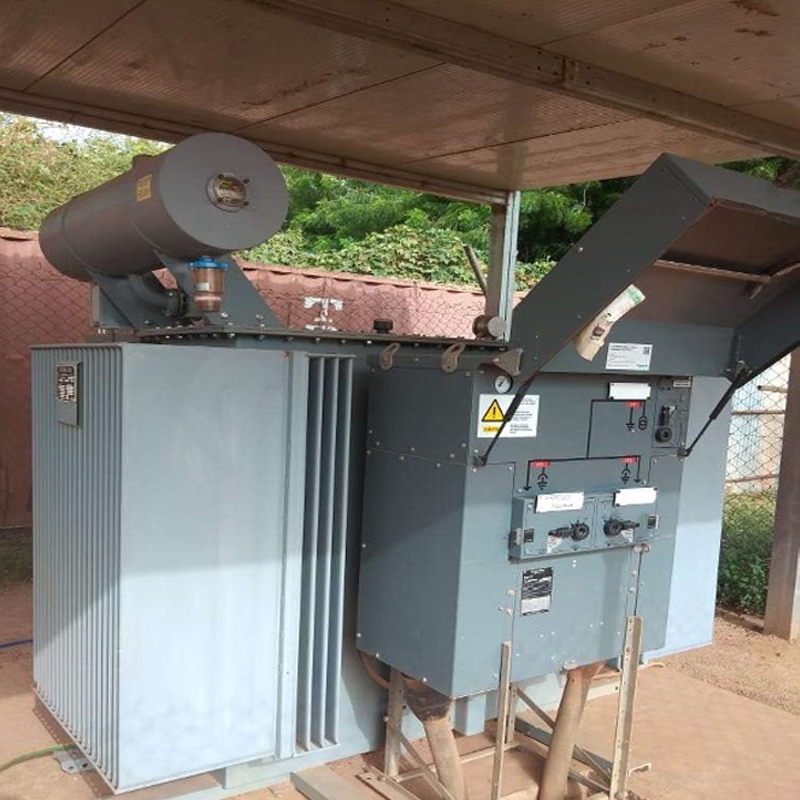

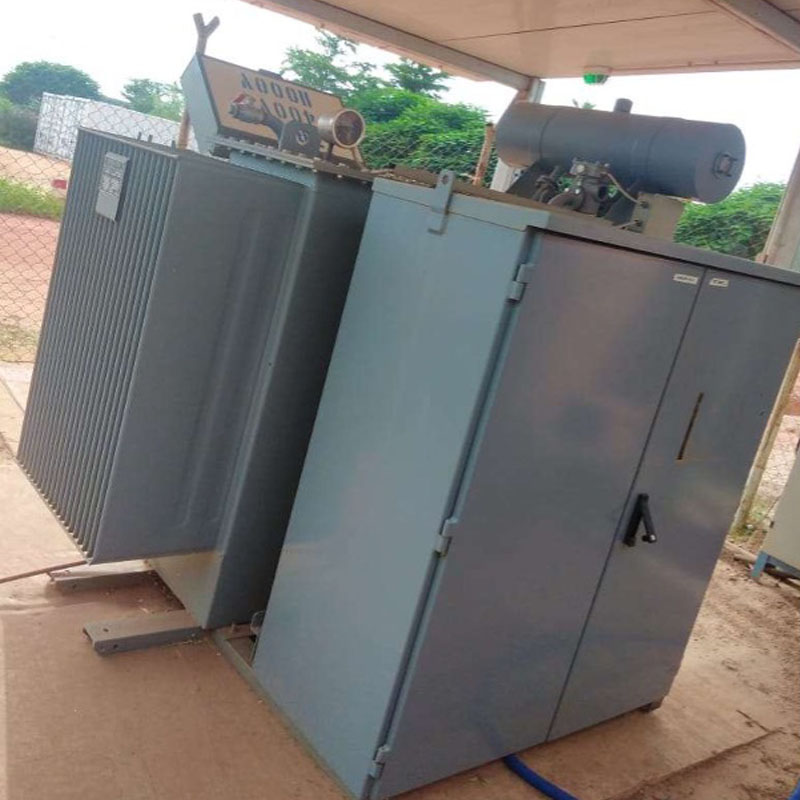

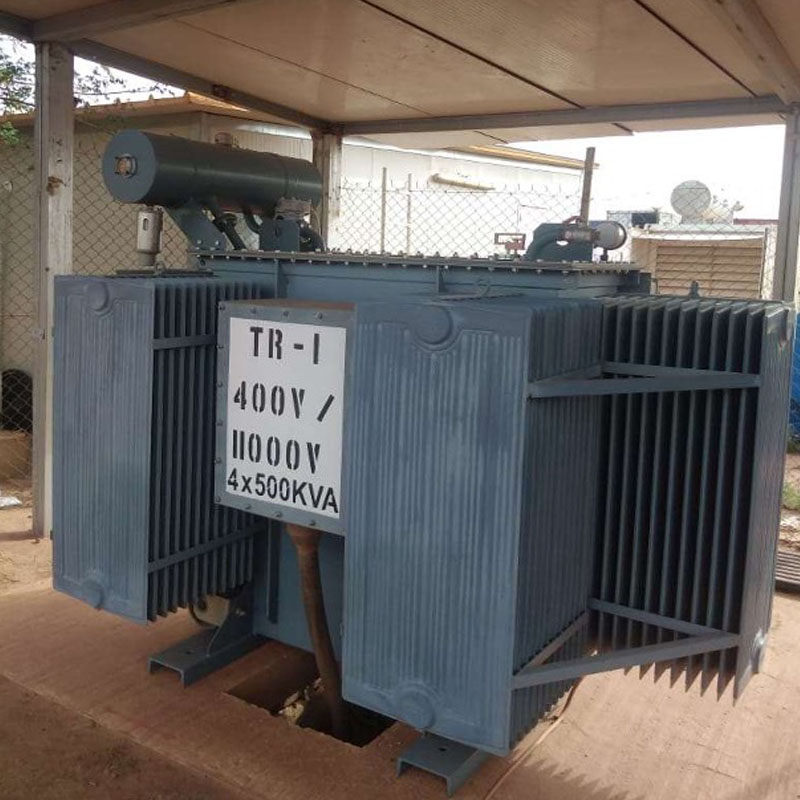

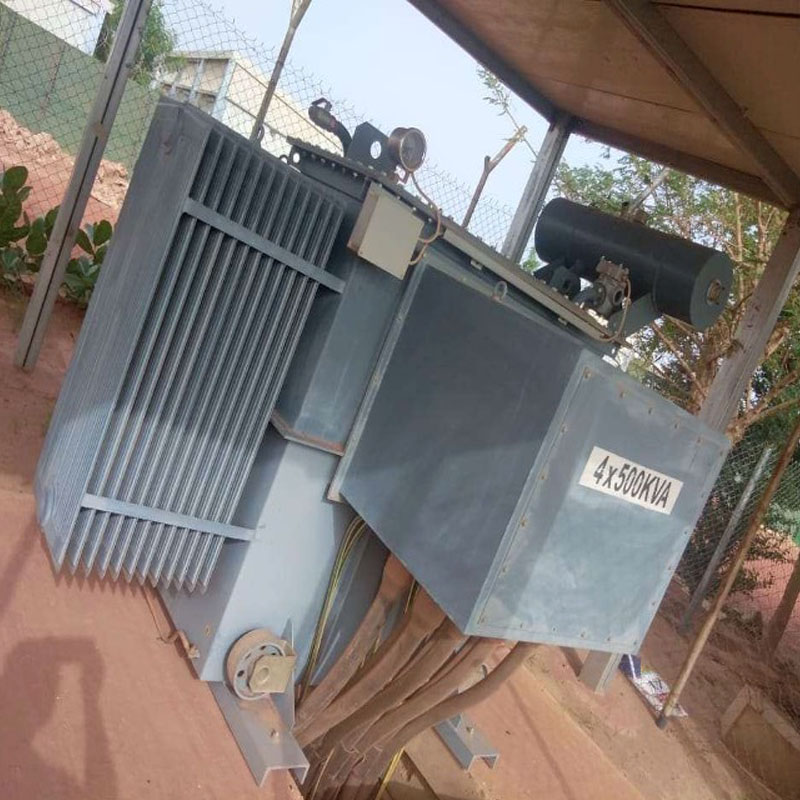

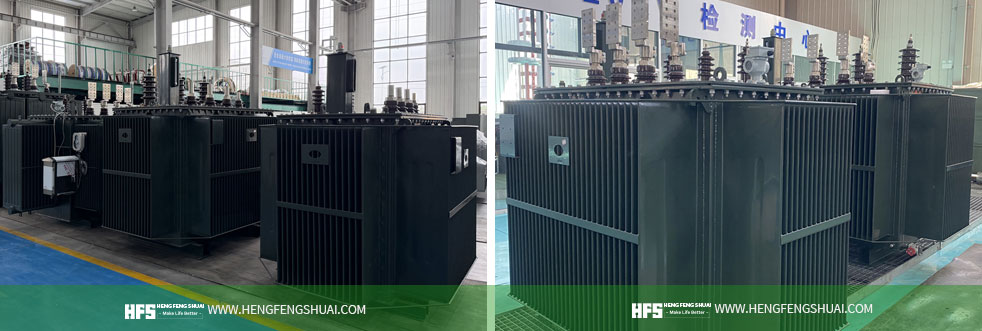

13.8 KV Distribution Transformer Case


13.8 KV Distribution Transformer FAQ

1. International Standards & Grid Compliance

Q1: What core standards apply to your 13.8kV oil-immersed transformers? Can they comply with US and Southeast Asian utility grid codes?
A1: Our 13.8kV oil-immersed transformers are primarily designed and type-tested per ANSI/IEEE C57.12 series (American utility standard) and IEC 60076 global standard, fully matching 13.8kV medium-voltage public grid specifications widely adopted in North America, Southeast Asia, Latin America and Middle East. In addition, we support adaptive compliance with EN, GOST, AS/NZS, INMETRO and SASO standards. Unlike 6kV/6.6kV industrial exclusive equipment, 13.8kV transformers belong toutility-grade public grid distribution equipment with stricter grid access, overvoltage tolerance and harmonic stability requirements. We can provide grid compliance verification reports, utility certification files and third-party authorization documents to meet official grid connection and filing requirements of national power bureaus.
Q2: Can you provide full set of utility-level type test reports? Are third-party witnessed tests mandatory for grid bidding projects?
A2: We provide complete CNAS-accredited full type test reports for 13.8kV voltage class, covering utility exclusive test items: power frequency withstand voltage, full-wave lightning impulse, switching impulse, partial discharge test, temperature rise cycling test and long-term overload stability test. For national grid bidding, municipal power transformation and large-scale industrial park grid access projects requiring mandatory third-party supervision, we support exclusive Factory Witnessed Test (WTT) and batch sampling inspection. SGS, BV, TUV and other international authoritative institutions are acceptable for on-site witnessing, with independent test reports provided for project bidding and grid filing.
Q3: What technical documents are included in standard delivery? Can you provide utility-standard multi-language certificates?
A3: The standard document package fully complies with international utility project requirements, including English utility-grade nameplate, overall dimension drawing, foundation installation drawing, high-low voltage wiring schematic, complete FAT test report, official operation and maintenance manual, factory quality certificate and full material traceability list. For cross-border utility and EPC projects, customized official documents in Spanish, Portuguese, Arabic, French and Russian are available. All documents meet local power grid filing, customs inspection and project acceptance standards to support one-stop project delivery.

2. Professional Technical Performance & Grid Adaptability

Q4: What winding configurations are available for 13.8kV utility transformers? Can material quality and stability be guaranteed in contracts?
A4: We provide two utility-grade winding solutions: high-purity oxygen-free copper winding for long-term full-load grid operation and high-performance aluminum alloy winding for cost-effective municipal projects. All winding material components, mechanical strength and insulation matching parameters can be clearly defined in technical agreements and formal contracts, with original factory material certificates and full production traceability records attached. Different from low-voltage industrial transformers, 13.8kV equipment adopts high-strength integrated winding fixation and utility-grade reinforced insulation system, which resists frequent grid voltage fluctuation, switching surge and long-term continuous overload operation, effectively avoiding partial discharge and insulation aging failure of public grid equipment.
Q5: Are 13.8kV utility-grade electrical parameters customizable? How do you handle unqualified finished products?
A5: All core utility-level parameters support personalized customization according to national grid standards, including low-loss core no-load loss, grid-grade load loss, precise short-circuit impedance, multi-grade on-load/off-load tap range and grid adaptive temperature rise threshold. Customized parameters fully match local 13.8kV grid design datasheets and utility bidding technical requirements. Every transformer undergoes 100% full-item utility-standard factory testing and aging inspection before delivery. All non-compliant equipment is strictly prohibited from delivery, with free rework, parameter calibration or full machine replacement, undertaking all costs to ensure zero defective equipment connected to public power grids.
Q6: Can 13.8kV transformers adapt to complex utility scenarios such as coastal salt spray, high altitude, tropical high temperature and humid rainy climates?
A6: We provide targeted utility environmental upgrade solutions for global 13.8kV grid scenarios. For high-altitude areas above 1000m, we upgrade high-voltage insulation margin and optimize creepage distance to prevent low-pressure insulation breakdown. For coastal grid zones and offshore industrial parks, C5M marine-grade heavy anti-corrosion coating is adopted to resist salt spray and chemical corrosion. For tropical high-temperature and high-humidity areas, fully sealed oil tank and constant-temperature moisture-proof structure are equipped to adapt to long-term high-temperature operation. For seismic and mining grid areas, integral mechanical reinforcement and anti-vibration optimization are carried out. All upgrades are customized according to local meteorological and grid operation parameters.
Q7: Is the 13.8kV transformer suitable for large-scale photovoltaic, wind farm and energy storage grid-tie projects? What is its harmonic resistance capability?
A7: Our 13.8kV anti-harmonic utility transformers are specially developed for centralized new energy grid connection scenarios, perfectly matching large-scale PV power stations, onshore wind farms and industrial energy storage station grid-tie demands. Adopting low-loss high-permeability CRGO silicon steel core and asymmetric balanced winding design, it effectively suppresses high-order harmonics and voltage distortion generated by large-capacity inverter equipment, solves harmonic overheating and power quality fluctuation problems caused by intermittent new energy power generation. It stably adapts to frequent load switching and random power fluctuation of new energy grids, ensuring long-term safe and stable operation of medium-voltage public grids.
Q8: What is the standard noise level of 13.8kV grid transformers? Can ultra-low noise design be used for urban residential and municipal core areas?
A8: Under IEEE and IEC standard test conditions, the standard operating noise of 13.8kV oil-immersed transformers is ≤59dB. For urban central areas, residential intensive areas, municipal supporting facilities and commercial districts with strict environmental protection requirements, we provide customized ultra-low noise version (≤48dB). Through multi-layer damping shock absorption system, core gap precise optimization and silent sealed oil tank structure, the operating noise is greatly reduced, meeting urban environmental assessment standards. Exclusive noise test qualification certificates can be provided for project approval and environmental filing.
Q9: Does the 13.8kV transformer have strong lightning protection and short-circuit fault resistance for public grid operation?
A9: The equipment adopts professional 13.8kV high-grade lightning impulse insulation design, with higher lightning overvoltage and switching overvoltage tolerance than ordinary medium-voltage transformers, suitable for outdoor long-term public grid operation. The integral reinforced anti-short-circuit structure and optimized winding mechanical strength greatly improve the ability to withstand sudden short-circuit faults and grid surge impact, fully meeting strict public grid operation safety standards. Professional short-circuit withstand test reports and grid safety certification are available upon request.
Q10: What is the design service life of 13.8kV utility transformers? How to control long-term insulation aging?
A10: The utility-grade design service life of 13.8kV transformers is 25 years, higher than ordinary industrial medium-voltage equipment. Adopting high-quality anti-aging oil-paper composite insulation system and redundant insulation margin design, the service life can reach 30–35 years under standardized grid operation and regular maintenance. The equipment strictly follows the international 6℃ insulation aging rule, with sufficient temperature safety margin reserved, effectively delaying insulation aging and ensuring stable full-load operation of public grid equipment for a long time.
Q11: Are you a professional manufacturer specializing in 13.8kV utility-grade transformers?
A11: We are a professional medium and high voltage transformer manufacturer with decades of R&D and manufacturing experience in 13.8kV utility grid transformers. We have independent utility-grade dedicated production lines and professional high-voltage test benches, with all core processes including winding assembly, high-voltage insulation matching, vacuum oil injection and grid-level pressure testing completed in-house without outsourcing. Our products are widely exported to global public grid renovation, municipal power supply, large industrial and new energy grid-tie projects, and factory audits and third-party inspections are warmly welcomed.

3. Customization, Dimension & Cross-Border Transportation

Q12: What non-standard customization can be provided for 13.8kV utility transformers?
A12: We support full-scene non-standard customization for 13.8kV public grid equipment, covering grid-grade electrical parameter adjustment, on-load tap changer customization, 50Hz/60Hz frequency conversion adaptation, pad-mounted/pole-mounted/indoor substation installation mode optimization and extreme climate special upgrade. High-voltage bushings, intelligent temperature controllers, pressure relief valves and other core accessories can be equipped with customer-specified international famous brands. All customized contents are recorded in detailed technical agreements to fully meet utility project bidding and design specifications.
Q13: Can you provide accurate grid-grade dimension and weight data? Is the equipment suitable for international large-scale cross-border transportation?
A13: Official quotations are attached with accurate net/gross weight, overall dimension, foundation installation size, hoisting parameters and center of gravity data of 13.8kV transformers. For large-capacity utility equipment, we pre-evaluate over-limit transportation risks, provide professional hoisting fixing schemes and cross-border logistics optimization solutions, and support super-large equipment bulk carrier transportation to ensure safe and damage-free delivery of grid key equipment.
Q14: What professional export packaging is adopted for long-distance ocean transportation of 13.8kV grid transformers?
A14: Standard medium and small-capacity 13.8kV transformers adopt full oil-sealed delivery for fast on-site grid commissioning. For transoceanic long-distance transportation and multi-transshipment utility projects, we adopt professional oil-drained and nitrogen-filled sealed protection, equipped with high-precision full-process transportation impact recorders to monitor vibration and inclination in real time. All export packages pass IPPC fumigation treatment, with multi-layer anti-rust, moisture-proof and shockproof protection, fully meeting international long-distance ocean transportation and quarantine standards.

4. Production Schedule & FAT Quality Inspection

Q15: What is the production cycle of 13.8kV utility transformers? How to guarantee on-time delivery for grid projects?
A15: The production cycle of standard 13.8kV oil-immersed grid transformers is 18–25 working days; for non-standard customized, 60Hz frequency conversion and extreme climate adaptive utility models, the production cycle is 25–40 working days. The exact delivery time is locked in the formal contract. We implement phased production progress updates and special person tracking for grid key projects, adopt flexible production scheduling and contractual risk restraint mechanisms to ensure on-time delivery and smooth grid project commissioning.
Q16: Is on-site FAT witnessing by customers and third-party institutions supported for 13.8kV grid equipment?
A16: We fully support on-site FAT witnessing and acceptance by customers and international authoritative third-party institutions such as SGS, BV and TUV for utility projects. We flexibly adjust test schedules according to project progress, fully open production workshops and high-voltage test links, and provide complete production records, material qualification certificates and grid-level test data to ensure transparent and traceable acceptance process for bidding projects.
Q17: Are core components traceable? Are key high-voltage processes outsourced?
A17: All core components of 13.8kV utility transformers have independent batch numbers, full-process traceability records and grid-grade qualification certificates. Key high-voltage processes related to grid operation safety and equipment performance are all self-produced and self-inspected in the factory without any outsourcing, fundamentally ensuring the stability, consistency and safety of public grid equipment quality.

5. Quotation, Payment & Customs Clearance Service

Q18: What is the quotation validity period for 13.8kV grid transformers? Will raw material price fluctuations affect the price?
A18: The standard quotation validity for 13.8kV utility transformers is 15 days with fixed price, not affected by short-term fluctuations in copper and silicon steel prices. For large-scale grid renovation and long-term strategic cooperative projects, the quotation validity can be extended to 120–180 days. Expired quotations can be reissued free of charge according to the latest project requirements and grid standards.
Q19: What payment terms are supported for 13.8kV utility projects? Is L/C acceptable for large EPC grid projects?
A19: We support flexible international payment methods suitable for utility projects, including TT telegraphic transfer and irrevocable sight L/C, which is widely applicable to large overseas grid EPC projects. The advance payment ratio and commercial terms can be negotiated according to project scale, order quantity and cooperation cycle, with all terms clearly specified in formal foreign trade contracts to ensure standardized and compliant transactions.
Q20: Can you provide official customs documents to assist tariff preference and smooth customs clearance?
A20: We provide complete customs clearance documents including CO certificate of origin, FORM A, FORM E and other preferential tariff certificates, which can help overseas customers successfully apply for tariff reduction and exemption, simplify customs clearance procedures, reduce project import costs and ensure efficient customs clearance of grid key equipment.

6. Export Packaging, Logistics & Cargo Insurance

Q21: Does the export packaging of 13.8kV transformers meet international marine transportation standards?
A21: All 13.8kV utility-grade transformers adopt exclusive foreign trade export packaging, with multi-layer anti-corrosion, moisture-proof, shockproof and anti-compression professional protection. The packaging wooden cases pass IPPC fumigation quarantine treatment, fully meeting global import quarantine and long-distance ocean transportation standards, with zero customs clearance obstacles.
Q22: What diversified logistics solutions are available for overseas 13.8kV grid projects?
A22: We provide customized logistics solutions for different regional grid projects: ocean freight for global conventional utility projects, bulk carrier transportation for large-capacity over-limit equipment, China-Europe railway for inland Eurasian grid projects, and cross-border truck transportation for neighboring country municipal power projects. We select the safest and most cost-effective logistics scheme according to equipment parameters and project location.
Q23: What is the cargo damage insurance claim process? Will you provide full-process support?
A23: All exported 13.8kV grid equipment is covered with full-process cargo transportation insurance covering sea, land and railway transportation. After goods arrival, customers only need to collect on-site damage evidence and submit an insurance application within 48 hours. We provide full sets of transportation documents, factory qualification certificates and test reports to assist third-party loss assessment and insurance claim settlement, minimizing project economic losses.

7. On-site Installation, Commissioning & SAT Service

Q24: Do you provide overseas on-site installation, commissioning and SAT acceptance services for 13.8kV grid transformers?
A24: We provide global one-stop professional technical services for 13.8kV utility transformers, including on-site installation guidance, high-voltage power-on commissioning, grid system debugging, fault detection and project SAT acceptance, with independent customized service quotations. Meanwhile, 24/7 free online remote technical support is permanently available to solve equipment operation and grid commissioning problems in real time.

8. Warranty Policy & After-sales Support

Q25: What is the warranty period and coverage of 13.8kV utility-grade transformers?
A25: The standard warranty period is 1 year. For municipal grid, new energy grid-tie and large EPC utility projects, the warranty period can be extended to 3–5 years. The warranty covers all equipment manufacturing defects and original accessory quality faults. Equipment failures caused by artificial improper operation, overload operation, external force damage and unauthorized modification are excluded from the warranty scope.
Q26: Can you supply original factory spare parts permanently after warranty expiration?
A26: We provide lifelong supply of 13.8kV exclusive original matching spare parts, including high-voltage insulating accessories, sealing components, control parts and protective devices. All spare parts are 100% matched with utility-grade equipment to ensure long-term safe and stable operation of public grid facilities.
Q27: What is the response speed of after-sales technical support? How to handle grid equipment emergency faults?
A27: We provide 24/7 online real-time technical support with instant response for conventional operation and maintenance problems. On-site after-sales service can be arranged within 7–15 working days upon negotiation. For emergency faults such as grid equipment tripping, shutdown and power failure, we activate the grid emergency response mechanism to prioritize fault disposal and reduce public power supply loss.
Q28: What quality control system is adopted for 13.8kV utility transformers?
A28: Our factory strictly implements ISO9001 full-process quality management system and exclusive utility-grade high-voltage equipment inspection standards. Every 13.8kV transformer passes professional high-voltage full-item test and long-term aging test before delivery. We fully support third-party institutions such as SGS, BV and TUV to conduct factory audits, sampling inspections and factory supervision to ensure 100% qualified delivery of grid key equipment.

Product parameters

---

• Rated Capacity Range: 50kVA ~ 3150kVA

• Rated High Voltage: 13.8kV (standard), customizable 12.47kV

• Rated Low Voltage: 0.4kV / 0.415kV / 0.48kV (customizable)

• Rated Frequency: 60Hz (mainstream) / 50Hz (customizable)

• Cooling Method: ONAN (Oil Natural Air Natural)

• Insulation Grade: Class A

• Protection Grade: IP20 / IP23 (optional)

• Operating Temperature Range: -40℃ ~ +55℃

• Energy Efficiency Standard: Compliant with IEC international high energy-saving standard

• Full-Load Noise: ≤55dB

• Installation Method: Outdoor floor-mounted / Pole-mounted optional

• Design Service Life: 25 years under standard operation and maintenance

Ordering instructions

---

- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer operating environment (altitude, temperature, humidity, location, etc.)
- Other customization requirements (tap switch, color, oil pillow, etc.)
- The minimum order quantity is 1 sets, worldwide delivery within 7 days
- Normal delivery period of 30 days, worldwide fast delivery
