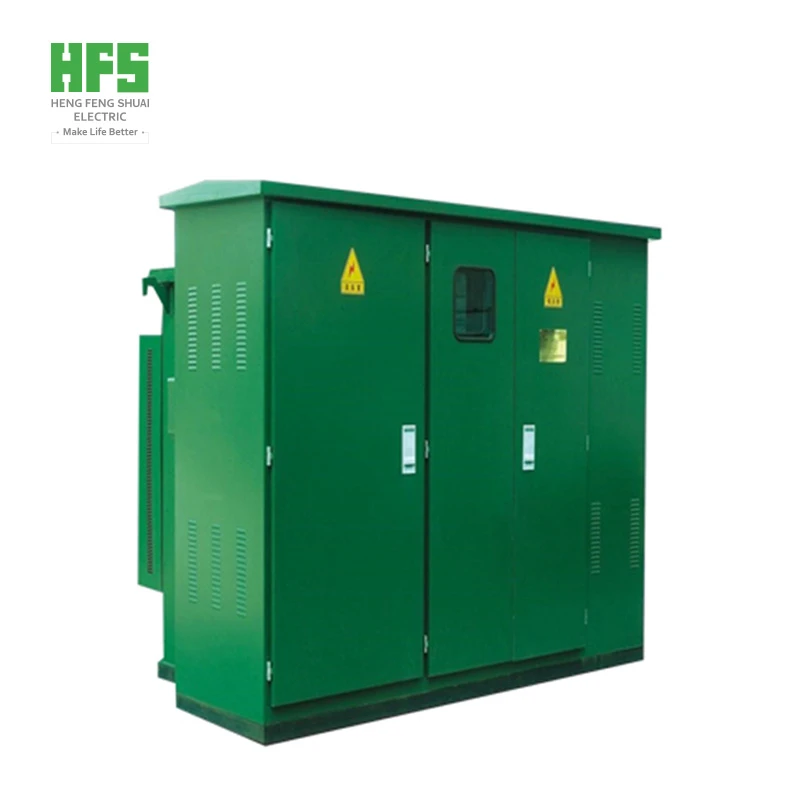

ZGS-13 Series 150KVA Pad Mounted Transformer

  • Classification: Pad Mounted Transformer
  • Number of Views: 165次
  • Date of issue: 2026-10-12 17:03:56


  • Product overview:ZGS-13 Series 150kVA Pad-Mounted Transformer: A cost-effective, high-reliability, intelligent urban power distribution solution.
    Integrated Design: Combines transformer, switchgear, fuses, tap changer, low-voltage distribution and auxiliary equipment, supporting energy metering, reactive power compensation and low-voltage branching.
    Electrical Performance: Rated frequency 50Hz/60Hz, maximum operating voltage up to 38.5kV.
    Applications: Widely used in industrial parks, urban residential areas, commercial centers and high-rise buildings.
    Market & Service: Mainly supplied to North America, East Asia, Southeast Asia, the Middle East and other regions; OEM/ODM services available.
    Standards: ANSI C57, IEEE, DOE, CSA, IEC 60067, GB 1094, GB 17467-2010, GB/T 14048.8.1, GB 4208.

Product advantages

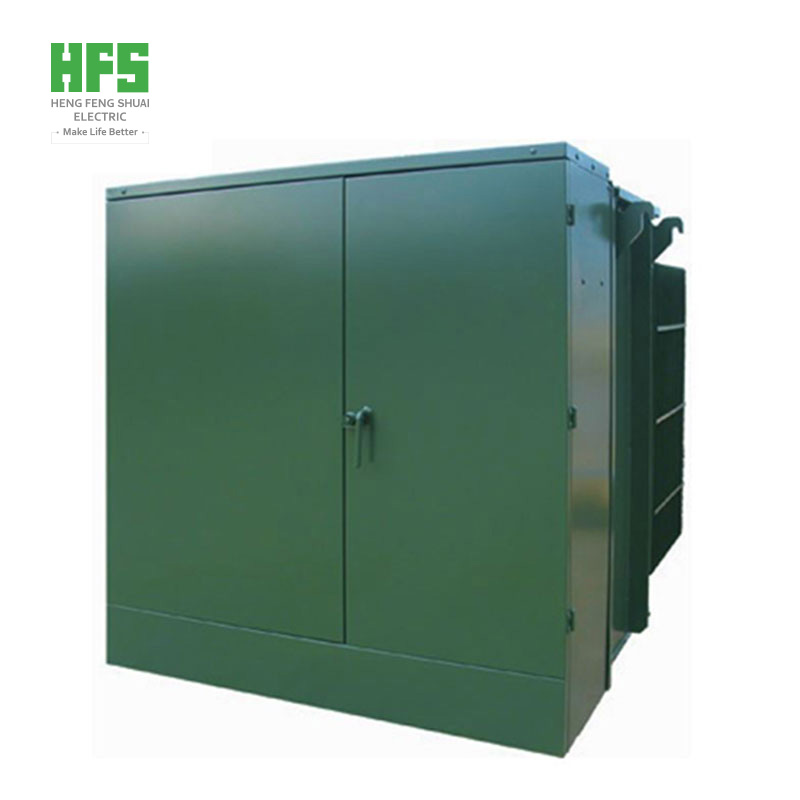

ZGS-13 Series 150KVA Pad Mounted Transformer
Leading technology
• Fully enclosed and insulated structure, safe and reliable operation
• Low loss, low noise, low temperature rise, excess capacity load ability, strong resistance to sudden short circuit
• Flexible connection mode, can be used for terminal system, also can be used for ring network system, easy conversion, improve power supply reliability
• Easy to operate, maintenance-free, low equipment cost

enclosure
• Assembly of cold rolled high quality hot dip galvanized sheet
• Laser CNC equipment cutting, drilling, bending, ensure processing accuracy
• Surface electrostatic spray treatment, 30 years of paint
• The transformer is the low loss oil-immersed transformer produced by Hengfengshuai Electric

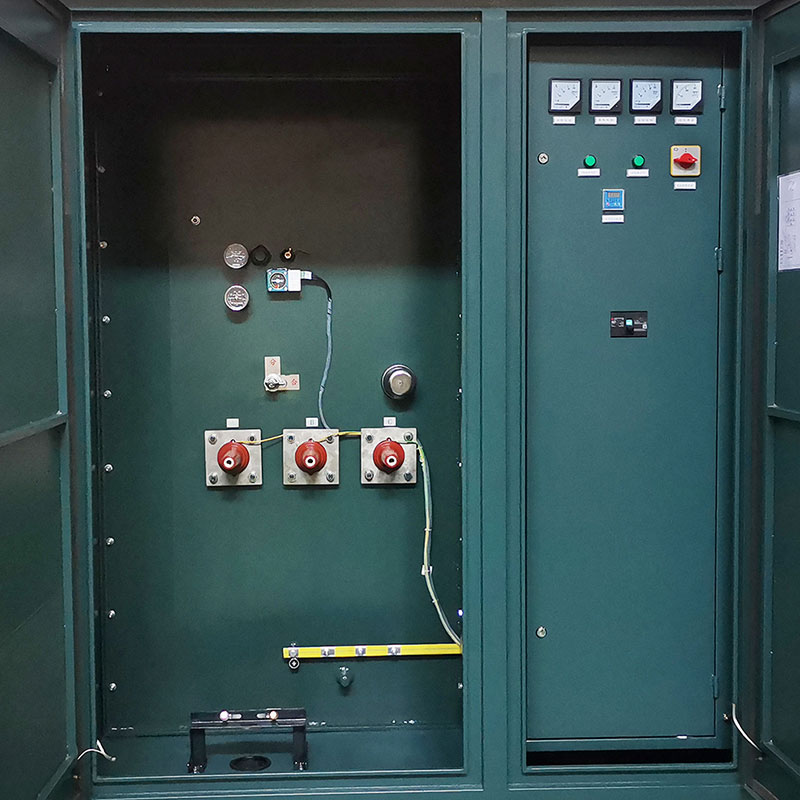

Processing and assembly
• Assembly workers must be trained for at least 6 months
• Secondary wiring is cut for automatic equipment to ensure reliable wiring
• Bolt reinforcement using power tools to ensure proper torque
• The copper busbar is CNC punched and bent
• All kinds of experimental tests before delivery to ensure normal operation

The company advantage
• Authoritative product certification: ISO, CE, CB, UL, etc
• Perfect SQA quality management system to ensure high quality products
• Quick quotation, can provide electrical design services
• Short lead time and fast global delivery
• Perfect after-sales service system, so that customers buy without worry.
• Welcome customers to visit the factory and provide OEM/ODM



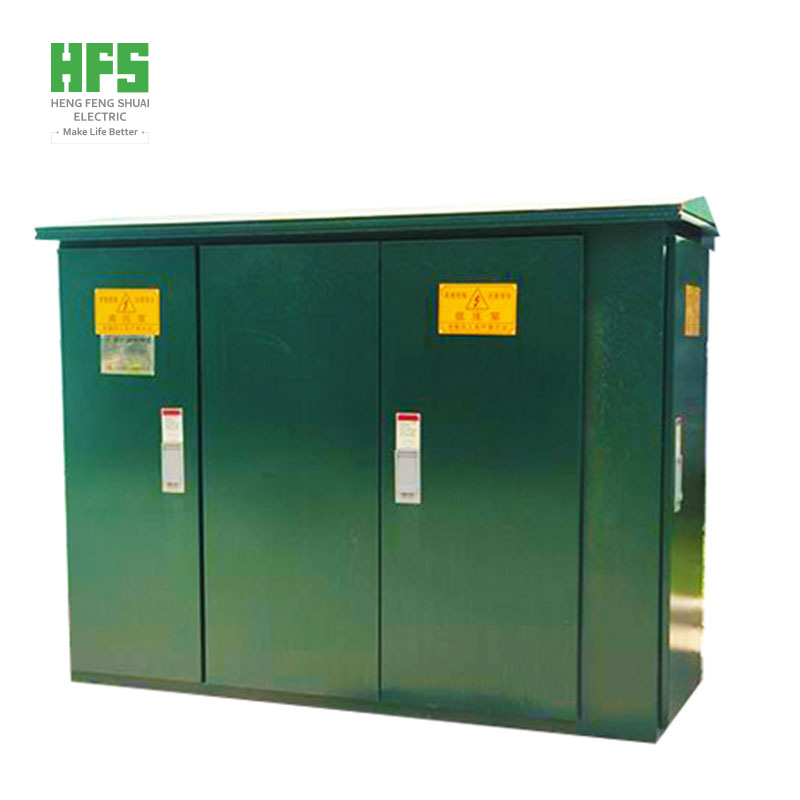

150KVA  Three Phase Pad Mounted Transformer Case

Three Phase Pad Mounted Transformer Case



150KVA  Three Phase Pad Mounted Transformer FAQ

1. Standard & Certification

Q1: What full set of industry standards does your 150kVA pad-mounted transformer comply with? Is it fully eligible for North American municipal grid and global commercial grid integration? A1: Our 150kVA three-phase oil-filled pad-mounted transformers are strictly designed, type-tested and mass-produced per ANSI/IEEE C57.12 series, CSA C2.1/C227.4 and DOE 2016 energy efficiency mandatory standards, fully meeting grid access requirements for the United States, Canada and North American municipal distribution networks. The product also supports global standard compliance covering IEC 60076, EN European power standards, GB national standards and AS/NZS Oceania standards. This 150kVA small-capacity unit is widely used for small residential subdivisions, retail strip malls, suburban municipal microgrids, small workshops and low-power distributed PV grid-tie projects. We can carry out targeted standard verification according to project location and deliver complete certification packages for local grid inspection, municipal engineering acceptance and third-party audit.

Q2: Can you provide official DOE energy efficiency certificates and full third-party test reports? Do you support witnessed factory inspection and field grid acceptance? A2: We supply authentic DOE 2016 energy efficiency certification for small-capacity pad-mounted transformers, along with CNAS-recognized full type test reports and authoritative third-party test documents from SGS, BV or TUV. Test items cover no-load loss, load loss, impedance voltage, insulation resistance, lightning impulse withstand, short-circuit withstand capability, mechanical structural stability and all safety protection indicators. For community grid retrofits, residential power upgrades and small commercial power supply projects, witnessed FAT testing and on-grid acceptance inspection are available. All performance data meets North American and international 150kVA distribution transformer access thresholds and grid operation specifications.

Q3: What complete technical documents are included in formal delivery? Are multi-language engineering operation manuals available for overseas construction teams? A3: Each 150kVA pad-mounted transformer is delivered with a full set of English technical files: equipment nameplate datasheet, overall pad installation layout drawing, foundation embedding drawing, high & low voltage wiring schematic, full-item FAT factory test report, dedicated O&M manual for outdoor pad-mounted transformers, product specification sheet and spare parts list. Custom multi-language manuals (Spanish, Portuguese, French, Arabic) can be provided upon request. All documents are optimized for overseas municipal construction and site guidance, with standardized operating procedures tailored for 150kVA light-load operating conditions.

2. Technical Performance & Structural Features

Q4: What winding material options are available for the 150kVA model? Can the winding system sustain long-term outdoor continuous operation and seasonal load fluctuation? A4: This 150kVA pad-mounted transformer offers two industrial-grade winding options: high-purity oxygen-free copper winding and high-temperature reinforced aluminum winding, suitable for long-term outdoor continuous distribution and mild seasonal peak load swings. Winding conductivity, temperature resistance and structural parameters will be confirmed in technical agreements, with complete raw material certificates and full production traceability records. Optimized winding layout reduces operational losses and improves power supply efficiency. Equipped with F/H-class composite high-temperature insulation and reinforced insulation structure, it can withstand large outdoor temperature variations and stable long-term light-load operation for residential, municipal and light industrial applications.

Q5: Are voltage grades and core electrical parameters customizable? How do you control product quality and handle non-conforming products? A5: All core electrical parameters support full customization to fit different global grid environments. Primary voltage options include 11kV, 12.47kV, 13.2kV, 13.8kV; secondary voltage covers 208Y/120V, 277/480V, 400V, 480V and other mainstream commercial & residential voltages. No-load loss, load loss and impedance can be adjusted to match local energy-saving and industrial power supply requirements. Every 150kVA unit undergoes 100% full-scope factory testing before shipment. Any non-conforming products found during production or testing will be reworked or replaced free of charge; defective units are strictly blocked from delivery to guarantee field power supply safety.

Q6: Can the 150kVA pad-mounted transformer adapt to harsh outdoor environments including coastal salt spray, high temperature, high humidity and urban vibration zones? A6: It adopts fully sealed outdoor construction with strong environmental adaptability and targeted solutions for harsh working conditions. For coastal and polluted zones, C5M high-grade anti-corrosion electrostatic spraying and internal rust-proof treatment are applied to resist salt spray and industrial flue gas corrosion. For tropical high-temperature high-humidity areas, the heat dissipation and insulation systems are upgraded for better thermal stability under continuous high temperature. The fully sealed enclosure delivers waterproof, dustproof and moisture-proof performance. For seismic zones and vibration-prone roadside areas, thickened reinforced base and multi-point damping structure are fitted to mitigate mechanical shock and vibration. The design supports long-term unattended outdoor municipal and community power distribution.

Q7: Is the 150kVA model suitable for distributed PV grid-tie, urban centralized power supply and commercial building grid connection? What is its harmonic suppression capability? A7: The 150kVA pad-mounted transformer is optimized for small-scale distributed photovoltaic grid connection, urban residential block centralized power supply, neighborhood power supply and small commercial plant grid-tie scenarios. Optimized core magnetic circuit and anti-harmonic winding structure effectively suppress high-order harmonics from PV inverters, household appliances and small variable-frequency commercial loads, lowering harmonic heating, voltage fluctuation and waveform distortion. It handles intermittent power output from small distributed energy systems and gentle residential load peak-valley variation, ensuring stable, low-distortion grid-tie operation.

Q8: What is the standard noise level of the 150kVA transformer? Is ultra-low-noise configuration available for residential and scenic business areas? A8: With core shock-absorbing fixation and silent structural optimization, standard operating noise of the 150kVA pad-mounted transformer is ≤46dB under IEC test conditions, satisfying residential environmental protection standards. For noise-sensitive locations such as residential neighborhoods, school districts, municipal parks and scenic commercial areas, customized ultra-low-noise version (≤42dB) is available, fitted with integrated damping base, sound isolation structure and optional noise reduction baffles. Official noise test certificates can be supplied for environmental assessment and municipal acceptance.

Q9: Does the 150kVA pad-mounted transformer have reliable lightning protection and short-circuit resistance for outdoor grid operation? A9: This unit comes with standard outdoor lightning impulse protection system and built-in high-sensitivity overvoltage protection devices to withstand lightning surges and grid switching overvoltage in open-air sites. Reinforced anti-short-circuit winding and core construction can sustain instantaneous short-circuit faults triggered by line aging, grid fluctuation and equipment abnormality. It fully meets safety standards for municipal residential and commercial grids, and complete lightning impulse & short-circuit withstand test reports are available for project evaluation and filing.

Q10: What is the design service life of the 150kVA transformer? How does the insulation system guarantee long-term outdoor ageing resistance? A10: The standard design service life of this outdoor 150kVA pad-mounted transformer is 25 years, matching the long service cycle of urban residential blocks and small commercial facilities. It uses high-stability oil-paper composite insulation, following the 6℃ insulation ageing rule, with sufficient thermal and ageing margin for long-term light-load operation and outdoor temperature cycling. With regular oil quality inspection, sealing check and routine maintenance, actual service life can reach 30 years for unattended outdoor municipal and residential distribution.

Q11: What are your core manufacturing advantages for 150kVA small-capacity pad-mounted transformers? A11: We are a professional manufacturer specializing in R&D and custom production of outdoor pad-mounted transformers, with abundant overseas project references in North America, Europe, Southeast Asia and Middle East residential and municipal power projects. Core processes including core stamping, winding fabrication, insulation wrapping, sealing assembly and full performance testing are completed in-house without outsourcing. Our 150kVA pad-mounted transformers feature compact integrated layout, low loss, low noise, strong environmental resistance and competitive cost performance, widely adopted for community grid renovation, residential cluster power supply, commercial auxiliary power and small PV grid-tie projects. Factory audit and third-party inspection are supported.

3. Customization, Dimension & On-site Installation

Q12: Can you provide non-standard customized 150kVA pad-mounted transformers for special municipal and residential scenarios? A12: Full non-standard customization is available for special working conditions and project requirements. Customizable options include region-specific voltage matching, landscape color coating to match community style, reinforced anti-theft door locks, IP grade upgrade, customized foundation size, high/low temperature adaptation upgrade and load performance optimization. Key accessories can be selected to specified international brands. All customized technical indicators will be confirmed in formal technical agreements to satisfy site construction and residential power supply codes.

Q13: Can you provide foundation dimension drawings and gross/net weight data? Is the equipment convenient for hoisting and cross-border transportation? A13: Complete dimension drawings, foundation construction drawings, installation spacing specs and gross/net weight data will be provided along with the quotation. The integrated 150kVA pad-mounted transformer has compact footprint and light weight, no oversize or overweight transport restrictions. It supports one-piece hoisting and positioning installation to shorten construction schedules for municipal and residential projects. Suitable for sea, rail and road cross-border transport without special heavy cargo permits, enabling efficient global delivery.

Q14: What export packaging standards are adopted for 150kVA pad-mounted transformers for overseas transportation? A14: We apply graded professional export packaging for small power equipment. For short cross-border shipments, fully oil-sealed integrated packaging is used for direct placement and fast commissioning without secondary assembly. For long transoceanic delivery, oil drained, nitrogen-filled anti-oxidation protection plus reinforced shockproof wooden case is adopted, equipped with vibration impact indicators. Multi-layer rust-proof, moisture-proof and weather-proof treatment protects sealed structure and internal components from collision, moisture and corrosion during long ocean transit.

4. Production & FAT Acceptance

Q15: What is the production cycle of standard and customized 150kVA transformers? How to guarantee on-time delivery for key municipal and residential projects? A15: Lead time for standard 150kVA pad-mounted transformers is 8–14 working days. Customized versions with special environmental upgrades, appearance changes or parameter adjustments, as well as bulk orders, take 14–22 working days. Delivery schedule is clearly stated in contract. We regularly share production photos, process inspection records and intermediate test reports during manufacturing. Priority production scheduling can be arranged for municipal community grid and residential supporting projects to align with site construction progress.

Q16: Do you support customer and third-party witnessed FAT factory acceptance? A16: We fully support on-site factory inspection and full witnessed FAT by customers and authorized third parties such as SGS, BV and TUV. We coordinate production and test schedules in advance, providing full process records, raw material certificates and complete performance test data. The acceptance workflow is transparent and compliant with international tender and engineering acceptance specifications.

Q17: Are core components traceable? Are key production processes outsourced? A17: All core components (silicon steel core, winding coil, insulating oil, sealed bushing, overvoltage protection device, temperature control system) carry full batch traceability records and qualification certificates. All key manufacturing steps are finished in-house without outsourcing, eliminating quality risks from external subcontracting and ensuring consistent product quality and long-term reliability.

5. Quotation, Payment & Customs Clearance

Q18: What is the quotation validity period? Will the price fluctuate with raw material market changes? A18: Standard quotation remains valid for 15 working days with fixed unit price. For bulk municipal orders and long-term strategic partners, quotation validity can be extended to 120 days with price lock. After expiry, price will be updated according to copper, silicon steel and other raw material market fluctuations to maintain fair pricing.

Q19: What international payment terms are supported? Is L/C acceptable for overseas engineering projects? A19: We accept flexible international payment terms including TT and irrevocable sight L/C, fitting overseas engineering procurement practice. Advance payment ratio and installment terms can be negotiated based on order quantity and project type. All commercial clauses are clearly defined in formal export contracts to protect both parties’ interests.

Q20: Can you provide preferential certificates of origin to help customers reduce tariff costs? A20: We supply full customs clearance documents including CO, FORM E China-ASEAN certificate and FORM A generalized preferential certificate of origin. These official documents help buyers apply for tariff reduction or exemption in destination countries, lowering project procurement and customs clearance cost and guaranteeing smooth customs release.

6. Packaging, Logistics & Insurance

Q21: Does the export packaging meet international sea freight standards for long-distance overseas transportation? A21: All export packaging uses multi-layer anti-rust, moisture-proof, shockproof and weather-resistant treatment designed for small outdoor electrical equipment. Wooden cases carry full IPPC fumigation marks, complying with international quarantine and ocean freight requirements. The sealed package withstands marine high humidity and salt fog to protect equipment performance and structure during transoceanic transport.

Q22: What diversified logistics solutions are available for 150kVA pad-mounted transformers? A22: Thanks to compact and lightweight design, multiple logistics options are available: sea freight for bulk orders with low total cost; China-Europe railway for Eurasian projects with shorter transit time; truck transport for nearby cross-border deliveries. Logistics cost is competitive and schedule stable without complex heavy cargo approval.

Q23: What is the cargo damage claim process during transportation? A23: All exported 150kVA transformers are covered by cargo transportation insurance. If packaging damage or equipment failure caused by transport occurs after arrival, customers need to collect photos, videos and waybill evidence within 48 hours and submit claim application. We provide contract, packing list and test reports to support insurance assessment and settlement, subject to insurance policy and third-party professional evaluation.

7. SAT & On-site Commissioning Service

Q24: Do you provide overseas on-site installation guidance and project commissioning services? A24: We offer full-cycle global on-site technical services, including foundation installation guidance, equipment positioning calibration, HV/LV wiring debugging, grid-tie performance test, load trial run and SAT site acceptance. On-site engineering service is quoted separately according to project scale and region. Meanwhile, free 24/7 remote technical support is available to resolve installation and operation faults quickly to realize fast energization for residential and municipal projects.

8. Warranty & After-sales Service

Q25: What is the warranty period and coverage scope of the 150kVA pad-mounted transformer? A25: Standard warranty is 1 year counted from qualified on-site acceptance. For key municipal grid projects and bulk customized orders, 2–3 years extended free warranty is available. Warranty covers manufacturing defects and original accessory quality faults. Failures caused by improper field operation, man-made damage, unauthorized modification and continuous overload operation are excluded.

Q26: Can you supply original genuine spare parts after warranty expiration? A26: We provide lifetime supply of original spare parts for all delivered 150kVA transformers, including sealing kits, protection devices, temperature control components, insulating oil and consumable parts, to sustain long-term safe equipment operation and continuous O&M support.

Q27: What is the response speed of after-sales and technical support? A27: 24/7 online technical consultation and after-sales support are available. Normal technical inquiries and minor faults get response within 1 hour. Certified electrical engineers can be arranged for on-site troubleshooting in 7–12 working days depending on region. Emergency response mechanism will be activated for sudden power failure of critical projects to minimize outage losses.

Q28: What is your factory quality control system for pad-mounted transformers? A28: We run full-process ISO quality management system, customized for the unattended light-load outdoor working mode of 150kVA transformers. Strict QC is implemented for sealing performance, anti-corrosion, loss parameters, insulation stability and short-circuit resistance. Every unit passes full factory tests (insulation, loss, noise, sealing, load test) before shipment. Third-party factory audits and inspections by SGS, BV and other organizations are accepted to meet global municipal, residential and commercial distribution standards.



Product parameters

Capacity: 150KVA Pad Mounted Transformer
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 34.5kV,35kV;
Maximum operating voltage:38.5kV

Pad Mounted Transformer Technical Specification

RatedPower(KVA)

H.V(KV)

L.V(V)

Loss(W)

Dimension(CM)

Weight(KG)

No-loadLoss (W)

On-loadLoss (W)

W

D

H

Oil   Weight

Total  Weight

75KVA

34.5KV
19.92KV
13.8KV
13.2KV
7.62KV
12.47KV
7.2KV

240V480V4
80Y/277V
600Y/347V

180

1250

1390

910

1430

120

645

112.5KVA

200

1500

1420

920

1430

138

729

150KVA

280

2200

1510

980

1530

201

989

225KVA

400

3050

1600

1000

1660

230

1195

300KVA

480

3650

1660

1080

1680

260

1415

500KVA

680

5100

1810

1160

1790

325

1905

750KVA

980

7500

2030

1300

2030

535

2755

1000KVA

1150

10300

1651

1549

1854

650

3235

1500KVA

1640

14500

2210

1470

2150

748

5835

2000KVA

2160

20645

2380

1600

2220

950

6430

2500KVA

2680

27786

2480

1650

2330

1020

8865


STANDARD COMPONENTS
Connections and neutral configurations
•     Delta - Wye: Low voltage neutral shall be a fully insulated X0 bushing with removable ground strap.
•     Grounded Wye-Wye: High voltage neutral shall be internally tied to the low voltage neutral and brought out as the H0X0 bushing in the secondary compartment with a removable ground strap.
•     Delta-Delta: Transformer shall be provided without a neutral bushing.
•     Wye-Wye: High voltage neutral shall be brought out as the H0 bushing in the primary compartment and the low voltage neutral shall be brought as the X0- bushing in the secondary compartment.
•     Wye-Delta: High voltage neutral shall be brought out as the H0 bushing in the primary compartment. No ground strap shall be provided (line to line rated fusing is required).
High and low voltage bushings
•     200 A bushing wells (15, 25, and 35 kV)
•     200 A, 35 kV Large Interface
•     600 A (15, 25, and 35 kV) Integral bushings (dead-front)
Electrical-grade wet-process porcelain bushings(live-front)

Tank/cabinet features
•    Bolted cover for tank access (45-2500 kVA)
•    Welded cover with hand hole (>2500 kVA)
•    Three-point latching door for security
•    Removable sill for easy installation
•    Lifting lugs (4)
•    Stainless steel cabinet hinges and mounting studs
•    Steel divider between HV and LV compartment
•    20" Deep cabinet (45-1000 kVA)
•    24" Deep cabinet (1500-7500 kVA)
•    30" Deep cabinet (34.5/19.92 kV)
•    Pentahead captive bolt
•    Stainless steel 1-hole ground pads (45-500 kVA)
•    Stainless steel 2-hole ground pads (750-10,000 kVA)
•    Parking Stands (dead-front)
Valves/plugs
•    One-inch upper filling plug
•    One-inch drain plug (45-500 kVA)
•    One-inch combination drain valve with sampling device in low voltage compartment (750-10,000 kVA)
•    Automatic pressure relief valve
Nameplate
•    Laser-scribed anodized aluminum nameplate


Ordering instructions
When ordering, the customer should provide the following information:
• Main loop scheme diagram and secondary loop system diagram.
• Electrical schematic diagram of auxiliary circuit and wiring terminal layout
• Equipment layout drawing, combination drawing, floor plan drawing.
• Brand, model, specification and quantity of main electrical components of the equipment.
• Incoming and outgoing lines and cable specifications.
• Equipment surface color (RAL chromatography).
• Other special requirements can be negotiated with Hengfengshuai Electric
