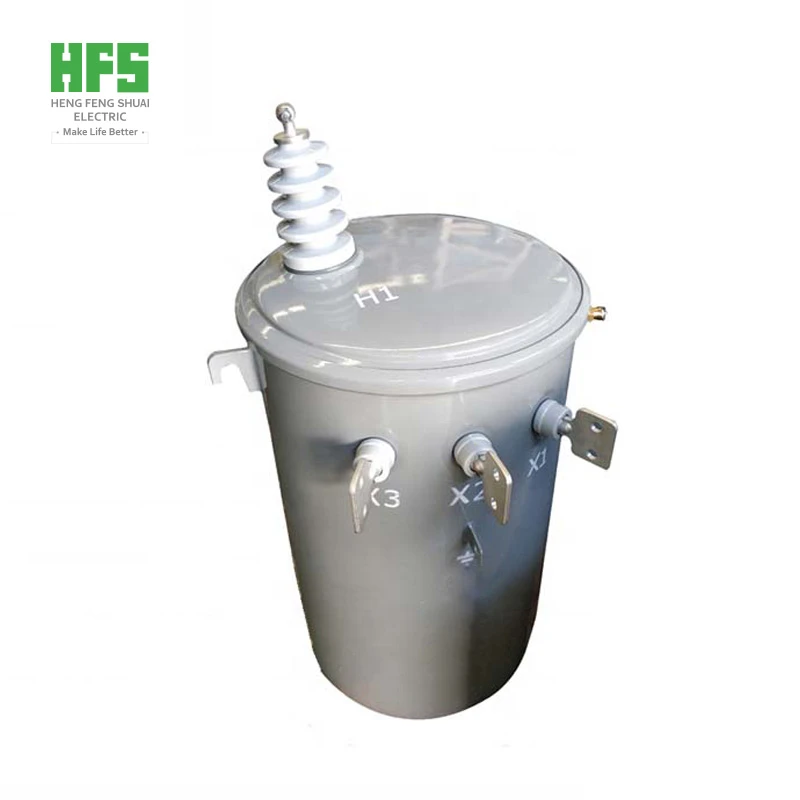

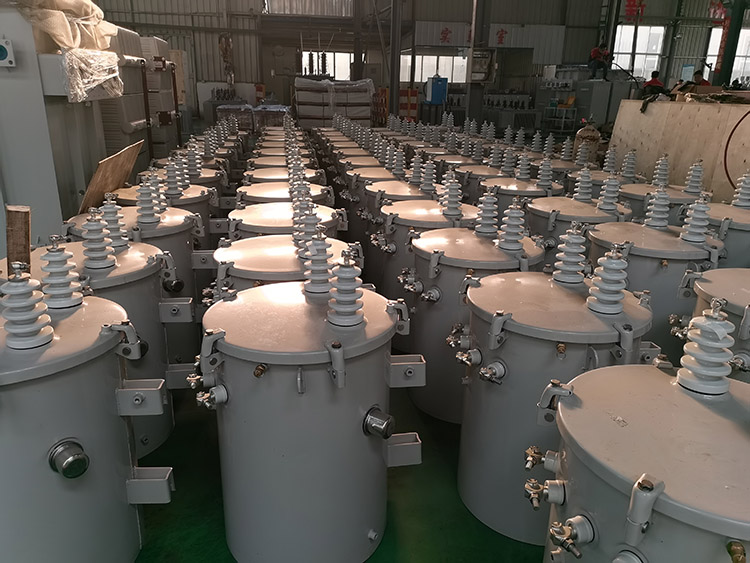

167 kva Single Phase Pole Mounted Transformer

  • Classification: Pole Mount Transformer
  • Number of Views: 123次
  • Date of issue: 2026-11-13 11:13:17


  • Product overview:

    Hengfengshuai 167 kVA single-phase oil-immersed ONAN pole mounted transformer is designed for 60Hz grids in North America and Latin America, with 50Hz customization available for regional markets. It has been successfully supplied to the United States, Chile,Canada,Honduras,Ecuador,Guyana,Venezuela, Brazil,the Philippines, Iraq and other regions. Widely applied in municipal distribution networks, rural electrification, agricultural loads, remote residential communities, telecom base station power supply and small commercial distribution projects.


    This product complies with ANSI C57.12, IEEE C57.12.20, IEC 60076 and DOE 2016 energy efficiency standards. It adopts fully sealed tank construction and is available in standard type and CSP (Completely Self-Protected) version. Under standard operating conditions, the design service life reaches 30 years, with a 24-month factory warranty. The product is optimized for lightning resistance, loss performance, sealing reliability, environmental adaptability, installation compatibility and full-lifecycle operation & maintenance economy.





Product advantages

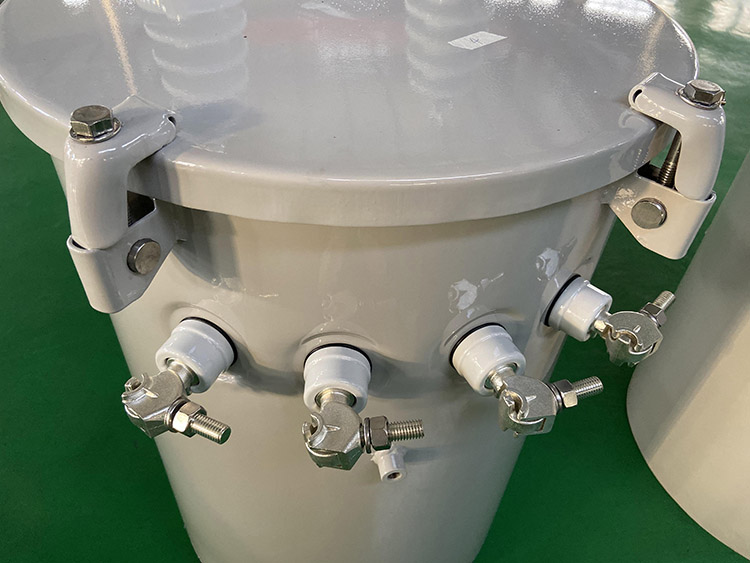

167 kva Single Phase Pole Mounted Transformer

Product Advantages of 167kVA Single‑phase Pole‑mounted Transformer

Core made of high-grade CRGO silicon steel sheet to meet DOE 2016 efficiency requirements. Excellent no-load loss control reduces continuous grid energy consumption; stable loss curve within 20%–120% variable load range improves long-term operational economy.

Optional integrated CSP protection package with primary fuses, secondary circuit breakers and surge arresters. No extra protection cabinet required, matching integrated configuration of overhead lines and enhancing operational stability.

Fully sealed welded tank with electrostatic epoxy coating, salt spray resistance ≥1000 hours. Suitable for coastal, high-humidity, dusty and high-temperature tropical environments. Integrated sealing structure ensures stable oil chamber performance over long service periods.

Optimized lifting lugs and bracket design compatible with ANSI cross-arm installation. No concrete foundation required for fast on-site commissioning and shorter construction & installation cycle.

Copper or aluminum winding available: Copper winding delivers superior temperature rise performance and better long-term stability; aluminum winding fits bulk grid tender projects to balance project investment. Temperature rise ≤55K under rated operation.

Low-noise design: ≤52dB at 1 meter, suitable for suburban residential distribution corridors.

Full range factory tests including ratio test, winding resistance test, dielectric withstand test, induced voltage test, partial discharge test, load and no-load loss test. Complete factory test report provided for each unit.




Integrated Components & Core Configuration


No. Item Specification & Model Remarks
1 Core High-grade CRGO silicon steel sheet, step-lap core Low magnetostriction, low noise
2 Primary & Secondary Winding Copper / aluminum conductor, paper insulated, vacuum impregnated Customizable
3 Tank Carbon steel, 304 stainless steel optional; ANSI 60 grey paint Fully sealed welded structure
4 Insulating Oil Mineral transformer oil / biodegradable vegetable ester oil Ester oil for environmentally sensitive areas
5 Tap Device Off-circuit tap changer, ±2×2.5% Adjustment only when power off
6 Protection Package (CSP Version) Primary expulsion fuse, secondary bayonet fuse, surge arrester, pressure relief valve, liquid level gauge CSP = Completely Self-Protected
7 Standard Fittings Lifting lugs, pole mounting brackets, oil drain valve, sampling valve, nameplate Compatible with ANSI overhead installation
8 Optional Accessories Spare bushing set, oil sampling kit, grounding clamp, temperature indicator Quoted separately

Typical Application Scenarios For 167 kVA Single Phase Pole Mounted Transformer



Large Rural Residential Clusters & Village Central Loads

The 167 kVA Single Phase Pole Mounted Transformer is designed for concentrated rural residential clusters, village central markets and combined domestic water pumping loads. It steps down single‑phase medium voltage to 120/240V low voltage, catering to higher aggregated single‑phase demand and avoiding costly three‑phase feeder extension.


Medium‑sized Distributed PV Grid‑tied Systems

The 167 kVA Single Phase Pole Mounted Transformer matches medium capacity rooftop solar arrays and village‑scale ground‑mounted PV systems. It handles voltage conversion, grid interconnection and metering for single‑phase solar generation, supporting net metering and stable power export to the distribution network.


Commercial Agricultural & Aquaculture Loads

The 167 kVA Single Phase Pole Mounted Transformer is widely used for centralized farm irrigation stations, large livestock farms, aquaculture aeration systems and primary agricultural processing equipment. The pole‑mounted layout saves foundation space in farm zones and wetlands.


Remote Small Commercial Hubs & Service Outlets

The 167 kVA Single Phase Pole Mounted Transformer serves remote rural supermarkets, fuel stations, roadside logistics yards, resort clusters and centralized cold storage units in off‑mainline areas. Robust ONAN oil‑immersed construction delivers continuous power for heavy single‑phase commercial loads.


Coastal Townships & Fishing Industry Power Supply

The 167 kVA Single Phase Pole Mounted Transformer is suitable for coastal fishing villages, dock auxiliary facilities and seafood preliminary processing sites. Anti‑salt‑fog coating option is available to resist marine corrosive atmosphere, ensuring steady operation under high humidity and salt spray conditions.


Long‑term Temporary Works & Permanent Rural Grid Upgrade

The 167 kVA Single Phase Pole Mounted Transformer can be deployed for long‑duration remote infrastructure projects such as road construction camps and water conservancy sites. After construction completion, the transformer can be retained on the pole and converted into permanent distribution equipment for local grid reinforcement.

Standards & Certifications


This product is manufactured in strict accordance with mainstream international specifications for distribution transformers. Corresponding certificates, test documents and third-party certification support can be provided upon project requirements:
Country System Applicable Standards Certifications
USA ANSI/IEEE IEEE C57.12.20, C57.12.00, C57.12.90, C57.12.31, C57.91; DOE 2016 (10 CFR 431); NEMA TR1 UL Listing, DOE compliance certificate, RUS (for rural grid projects)
Canada ANSI/IEEE CAN/CSA C2.2, IEEE C57.12.20, C57.12.00 cUL / CSA certificate
Ecuador ANSI/IEEE IEEE C57.12.20, C57.12.90, C57.12.00 UL or KEMA/CESI type test report, factory routine test certificate
Saudi Arabia ANSI/IEEE IEEE C57.12.20, SASO technical specification SASO certificate, UL or KEMA report
UAE IEC IEC 60076-1/-2/-3; DEWA/ADDC specification CE marking, KEMA type test report
Colombia ANSI/IEEE IEEE C57.12.20, C57.12.90 UL or KEMA report, RETIE relevant documents
Peru ANSI/IEEE IEEE C57.12.20, NEMA TR1, C57.12.90 UL or KEMA report, factory test certificate
Mexico ANSI/IEEE IEEE C57.12.20, NEMA TR1 UL or KEMA/CESI type test report
Philippines ANSI/IEEE IEEE C57.12.20, NEMA TR1 UL or KEMA report, ERC relevant documents

FAT (Factory Acceptance Test) Items


Factory Tests and Reports
Routine Tests (free of charge) Type Tests (chargeable) Special Tests (chargeable)
1) Winding resistance test 1) Temperature rise test 1) Special insulation test
2) Voltage ratio measurement and connection group symbol verification 2) Insulation type test 2) Measurement of winding hot-spot temperature rise
3) Measurement of short-circuit impedance and load loss 3) Sound level determination for each cooling method 3) Measurement of capacitance to earth and between windings
4) Measurement of no-load loss and no-load current 4) Power measurement of fan and oil pump motors 4) Measurement of dielectric dissipation factor of the insulation system capacitance
5) Measurement of DC resistance to earth and between windings 5) Measurement of no-load loss and no-load current at 90%–100% of rated voltage 5) Determination of transient voltage transfer characteristics
6) Routine insulation test   6) Measurement of zero-sequence impedance of three-phase transformers
7) On-load tap changer test   7) Short-circuit withstand test
8) Pressure sealing test for liquid-immersed transformers
9) Pressure sealing test for gas-filled transformer tanks
10) Ratio and polarity test of built-in current transformers
11) Insulation measurement of core and clamps of liquid-immersed transformers
12) Insulating liquid test



Transformer Test Items and Relevant Standards

No. Test Items Relevant Standards (ANSI / IEEE / ASTM)
1 Winding resistance measurement IEEE C57.12.90, Resistance measurements
2 Voltage ratio measurement and connection group symbol verification IEEE C57.12.90, Ratio, polarity and phase-relation tests
3 Measurement of short-circuit impedance and load loss IEEE C57.12.90, Impedance and load loss measurements
4 Measurement of no-load current and no-load loss IEEE C57.12.90, No-load loss and excitation current measurements
5 Measurement of winding-to-earth insulation resistance and/or dielectric dissipation factor of the insulation system capacitance IEEE C57.12.90
6 Routine insulation test IEEE C57.12.90, Dielectric tests; per IEEE C57.12.00
7 On-load tap changer test IEEE C57.131; verified per IEEE C57.12.90
8 Insulating oil test ASTM D117 / IEEE C57.106
9 Special tests
9.1 Special insulation test IEEE C57.12.90, Special dielectric tests
9.2 Measurement of zero-sequence impedance of three-phase transformers IEEE C57.12.90
9.3 Sound level determination IEEE C57.12.90, Audible sound level measurements

Why Choose Hengfengshuai Electric?



Efficient technical design to optimize full-lifecycle cost

This 167 kVA single phase pole mounted transformer adopts self-developed energy-saving design with strictly controlled losses. General distribution transformers feature a 25-year design life, while this model reaches a 30-year design life under standard maintenance conditions, cutting long-term maintenance and replacement expenditure and lowering total cost of ownership. It can be engineered to ANSI/IEEE, IEC and DOE standards to meet grid access and acceptance requirements in America, Africa, the Middle East and other global regions. UL, CSA, SGS and other required certificates can be applied for per project.



Full-process quality control and standardized factory acceptance

We operate under ISO9001 quality management system. Full control covers raw material procurement, incoming component inspection, assembly and finished product testing with traceable key materials. Every 167 kVA transformer completes full FAT before delivery. Test records and inspection videos are available upon request, and witness inspection by clients or third parties is supported to guarantee delivery quality.



Flexible customization for diverse overseas project conditions

Complete OEM & ODM capability is available. Voltage combination, CSP/standard structure, winding material, insulating oil type, anti-corrosion grade and nameplate language can be configured according to project drawings, local grid parameters and pole installation requirements. We support bulk EPC tender orders and small orders for distributors and end users. Switchgears, RMUs and other power distribution equipment can be supplied together for one-stop procurement to reduce multi-supplier communication costs.



Mature overseas delivery and stable supply chain

Our products are exported to more than 50 countries and regions. We have rich practical experience in single-phase distribution projects across America, the Middle East and Africa, familiar with export documentation, reinforced sea packaging and international shipping coordination. Standard units can be delivered within 25 working days. Production schedules are adjusted according to material availability and customization complexity. Production progress, inspection milestones and logistics information are updated throughout the project for predictable cross-border execution.



Full-cycle professional technical service

Pre-sales engineers provide configuration optimization advice based on local grid parameters, load and environmental conditions. Installation, wiring and commissioning guidance are provided after delivery. We aim to deliver initial troubleshooting proposals within 12 hours upon written fault notifications and remote diagnosis is available. On-site technical support can be negotiated for major projects. Complete technical documents and test reports are provided to support commissioning, maintenance and project acceptance.



Long-term partnership model

Beyond single equipment supply, we deliver integrated power solutions covering quotation, selection, supply and after-sales service for distribution networks, rural electrification, new energy and telecom infrastructure. We balance performance, procurement cost and project efficiency to build stable and mutually beneficial partnerships with overseas power utilities, EPC contractors, engineering firms and distributors.



   Get A Quote

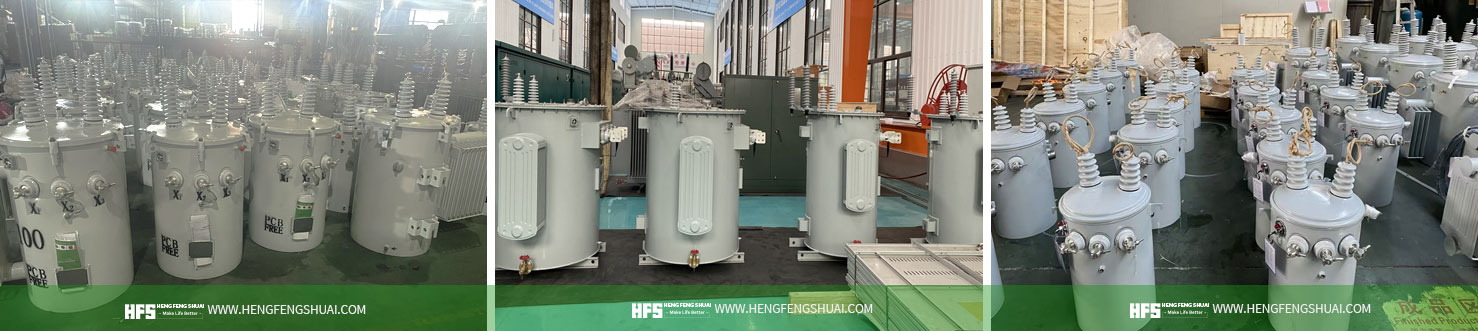

167 kva Single-Phase Pole Mounted Transformer Case





167 kva Single-Phase Pole Mounted Transformer FAQ


Q1: What is the design service life of the 167 kVA single phase pole mounted transformer?
A: It is designed for 30 years under rated load, ambient temperature between -20℃ and +40℃ and regular maintenance. Actual service life is affected by environmental corrosion, lightning surge frequency and load cycling.


Q2: What is the difference between standard type and CSP type?
A: The CSP version integrates fuses, surge arresters and pressure relief protection for autonomous internal fault isolation without external protection cabinets. The standard type can be matched with customer’s existing pole-mounted fuses and arresters, suitable for projects with established protection systems.


Q3: Can this transformer be used for 50Hz power grids?
A: Yes. We can adjust core design and loss parameters accordingly, and customize voltage ratios to match local 50Hz distribution specifications.


Q4: What is the lead time for bulk orders?
A: Standard configuration: 25–35 working days. Customized versions with special voltage, stainless steel tank or vegetable ester oil: 40–50 working days.


Q5: Is salt spray anti-corrosion treatment standard?
A: Standard coating is suitable for conventional inland environments. The enhanced coastal version with 1000-hour salt spray test is optional and must be specified during RFQ.


Q6: What factors affect the long-term operation performance of pole mounted transformers?
A: Lightning surges, continuous overload, sealing conditions and insulation status under high humidity will influence operational performance. CSP protection plus fully sealed tank improves stability under complex working conditions.



Product parameters
Selection Table

No. Item Unit Parameter
1 Manufacturer — Hengfengshuai Electric
2 Product Model — Single-phase Pole-mounted Transformer
3 Applicable Standards — IEEE C57.12.00 / IEEE C57.12.90 / IEC 60076 / NEMA TR-1
4 Energy Efficiency Standard — Compliant with DOE 2016
5 Rated Capacity kVA 167
6 Rated High Voltage V 34500 / 19920 / 13800 / 13200 / 12470 or custom
7 HV Tap Range % ±2×2.5% (No-load Tap Changer)
8 Rated Low Voltage V 120-240 / 240-480 / 277 / 347 / 600 or custom
9 Vector Group — Ii0 / Ii6
10 Frequency Hz 50/60
11 Phase — Single-phase
12 Cooling Method — ONAN Oil-immersed Self-cooled
13 Installation Type — Outdoor Pole-top Mounting
14 Insulation Class — Class A
15 Winding Material — Oxygen-free Copper; Aluminum Winding Optional
16 Insulating Fluid — Non-PCB Mineral Oil; FR3 Vegetable Oil Optional
17 HV Bushing — Porcelain Bushing; Polymer Bushing Optional
18 LV Bushing — Porcelain Bushing; Polymer Bushing Optional
19 Short-circuit Impedance % 4.0% (±10%, Customizable)
20 No-load Loss W 350
21 Load Loss (75°C) W 1410
22 No-load Current % 0.6%
23 Sound Level (NEMA TR-1) dB <55dB
24 Lightning Impulse Withstand Voltage HV / LV kV 95 / 30
25 Power Frequency Withstand Voltage HV / LV kV 35 / 5
26 Temperature RiseWinding Temperature RiseTop Oil Temperature Rise KK 65K55K
27 Overall DimensionL × W × HTotal WeightOil Charge mmkgkg 810 × 760 × 1350680138
28 Ambient ConditionsMax. Ambient TemperatureOperating Ambient TemperatureRelative HumidityCorrosion Class °C°C—— +45°C-40 ~ +45°C<95% (Non-condensing)ISO-12944-2 C3; C5-M Optional
29 Standard AccessoriesSelf-sealing Pressure Relief ValveNEMA Standard Bracket & Support PlatesOil Drain & Sampling ValveSurge ArresterCurrent-limiting Fuse AssemblyEarthing TerminalStainless Steel Laser-etched NameplateLifting Lugs pcssetpcssetsetpcspcsset 11111211
30 Tank Pressure Test kPa 69kPa, hold for 1h, no leakage
31 Warranty Period month 18 (Negotiable for projects)
32 Packaging & Shipment — Containerized packaging; Loading Port: Qingdao; EXW Available
33 Type Test Report — Available upon request
34 Optional Structure — CSP Completely Self-Protected Version / Standard Version


   Get Technical Support

Ordering instructions

Need a customized solution for your project?


Please provide the following technical information for accurate quotation and drawing confirmation:


       *  Rated Capacity: 167 kVA (fixed for this model)

       *  Primary & Secondary Voltage (specify line-to-line / line-to-neutral)

       *  Frequency: 50Hz or 60Hz

       *  Structure: CSP Completely Self-Protected Type / Standard Type

       *  Winding Material: Copper winding / Aluminum winding

       *  Insulating Oil: Mineral oil / Vegetable ester oil

       *  Tank Material: Carbon steel / 304 stainless steel

       *  Application Environment: Standard inland / Coastal anti-salt-fog grade

       *  Tap Requirement: ±2×2.5% or other tap range

       *  Certificate Requirement: UL/cUL/CSA / Factory test report only

       *  Quantity, destination port, packing requirement, special marking or utility drawing requirements
