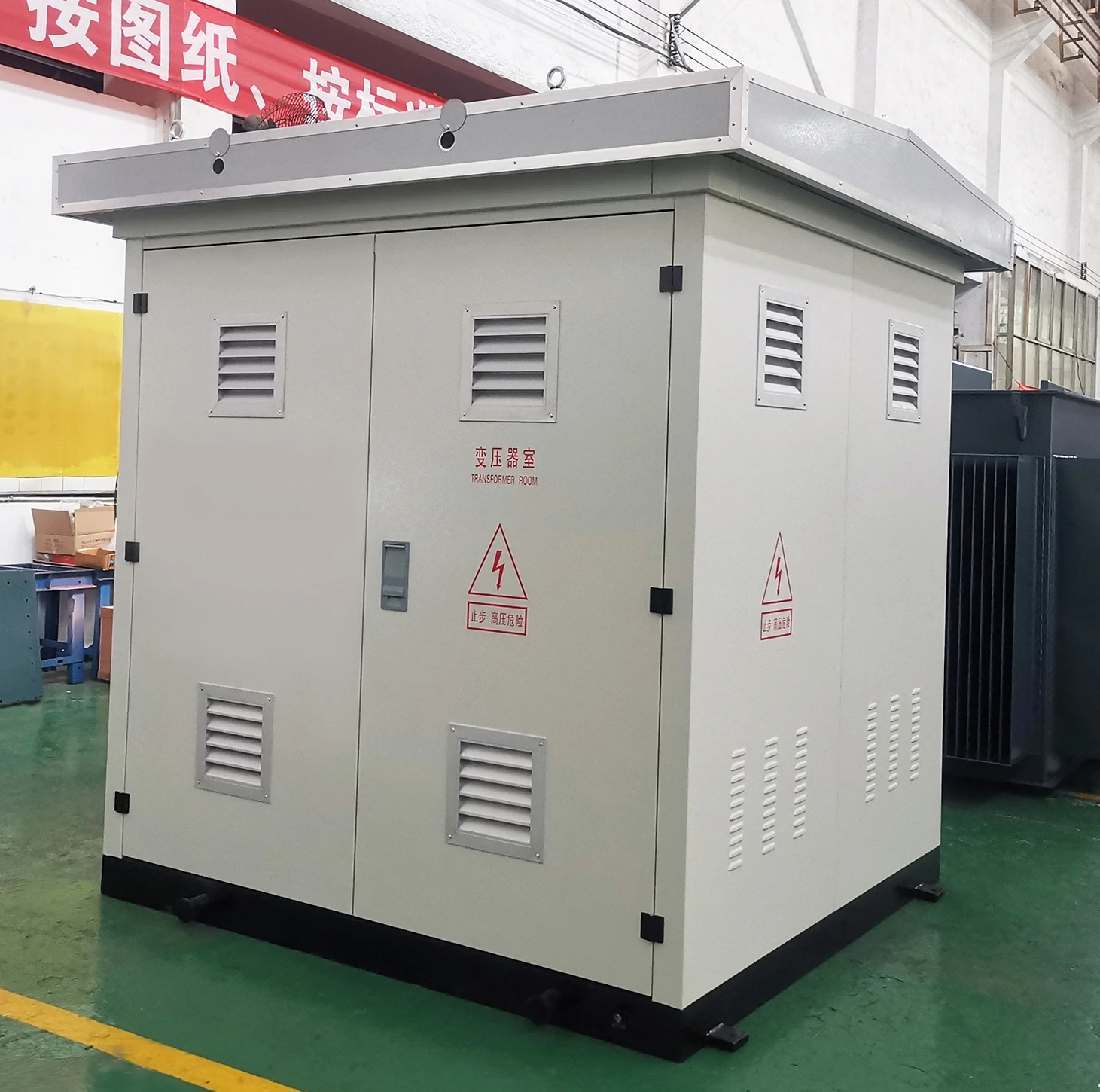

250 kva Compact substation

  • Classification: Compact Substation
  • Number of Views: 132次
  • Date of issue: 2026-11-13 10:34:03


  • Product overview:

    Hengfengshuai 250 kVA compact substation is a factory-prefabricated integrated outdoor power distribution unit. It integrates medium-voltage switchgear, 250 kVA distribution transformer, low-voltage panel, metering, protection and optional reactive power compensation modules within a single enclosure.


    This product has been successfully supplied to South Africa, Ethiopia, Rwanda, Ecuador, Chile, Brazil, Nepal, Iraq and other regions. It is engineered to match local grid requirements for Africa, Latin America, the Middle East and Central Asia, widely applied in utility distribution networks, renewable energy plants, industrial parks, municipal infrastructure, commercial and residential complexes.


    The unit complies with IEC 62271-202, IEC 60076 series and relevant national standards of target markets, including EN, SANS, NBR and SEC specifications. With proper scheduled maintenance under rated ambient conditions, it offers a 25-year design service life and comes with a standard 24-month factory warranty. It supports 50 Hz / 60 Hz operation, and voltage configurations can be customized to meet local grid codes and project acceptance requirements.


Product advantages
250 kva Compact substation




250 kva Compact substation Advantages



Fully pre-assembled in factory and complete FAT before delivery, greatly reducing on-site assembly workload and commissioning cycle while ensuring consistent system matching performance.

Three-compartment modular layout (MV compartment / Transformer compartment / LV compartment), equipped with mechanical interlock and physical isolation, independent access door for each compartment to improve operational safety and maintainability.

 The transformer adopts high-efficiency core design in line with DOE 2016 energy efficiency standards. Temperature rise remains stable under rated load, with short-time overload capacity to adapt to fluctuating on-site load profiles.

 The enclosure adopts hot-dip galvanized steel plate with powder coating. IP54 protection grade and ISO‑12944‑2 C5‑M anti-corrosion coating are available for coastal high-humidity and heavily polluted environments. Built-in anti-condensation heater and compartment lighting stabilise internal microclimate.

 Flexible configurable functional modules: metering unit, surge protection, reactive power compensation bank and smart monitoring terminal are optional, supporting data collection and remote communication for smart grid upgrade. Both oil-immersed and dry-type transformer solutions are available to meet different site safety requirements.

Incoming inspection for components plus full routine test before shipment. Key raw materials and core components follow supplier quality control system with full traceability. Complete test documents and operation manuals are delivered together with each unit.



250 kva Compact substation Integrated Components & Core Configuration



No. Component Name Specification & Model Remarks
1 Medium-voltage Compartment Load break switch / RMU, earthing switch, cable connector; SF₆ or vacuum type optional 12~20 kV class, mechanical interlock fitted
2 250 kVA Transformer Unit 3-phase, Dyn11; ONAN oil-immersed / AN dry-type optional; ±2×2.5% off-circuit tap changer Copper winding as standard, aluminium winding optional
3 Low-voltage Compartment Main incoming circuit breaker, multi-way outgoing feeders, metering module, SPD, optional reactive power compensation bank Protection settings configurable per project
4 Enclosure Assembly Hot-dip galvanised steel shell, RAL colour customisable; IP43 standard, IP54 optional Three-compartment independent door structure
5 Standard Auxiliary Parts Anti-condensation heater, compartment LED lighting, door interlock device, oil collection sump (oil-immersed version), temperature sensor, earthing busbar assembly, laser-etched stainless steel nameplate Standard supply
6 Optional Accessories Smart monitoring gateway, additional surge arresters, spare fuses and contact kits, on-site installation hardware set Quoted separately


Typical Application Scenarios For 250 kVA Compact Substation


       * Solar PV & Distributed Renewable Energy Stations 250 kVA compact substation acts as a grid-tie step-down unit for rooftop solar systems, ground-mounted small PV farms and distributed wind turbines. It fulfills voltage transformation, energy metering, anti-islanding protection and grid interconnection for distributed renewable power access.

       * Commercial Complexes & Residential Estates 250 kVA compact substation delivers centralized power distribution for medium-sized residential compounds, shopping malls, supermarket clusters and community supporting facilities. Its compact footprint is ideal for urban projects with restricted land area and tight installation space.

       * Light Industry Plants & Mining Auxiliary Facilities 250 kVA compact substation is suitable for small-to-medium manufacturing workshops, food processing factories, packaging plants and mining auxiliary loads such as crushing stations, water pump stations and site lighting systems. Customizable protection settings are available to cope with industrial inductive loads.

       * Municipal & Transportation Supporting Facilities 250 kVA compact substation is widely adopted for highway service stations, urban road lighting, water supply pumping stations, sewage treatment plants and park infrastructure. It is designed to withstand large ambient temperature fluctuations for outdoor installation.

       * Rural Grid Reinforcement & Remote Electrification Projects 250 kVA compact substation is applied to rural network upgrading and off-grid/grid-connected electrification schemes in remote towns and villages. It greatly reduces civil construction work and site installation time versus traditional brick-built substations.

       * Construction Site Power Supply (Temporary to Permanent) 250 kVA compact substation supports temporary power for large building projects, road works and infrastructure construction. Once the project is finished, the unit can remain on-site and be converted into permanent distribution equipment without extra replacement.


Compact substation Standards & Certifications


Market Base Standard Core Mandatory Certification
EU, Middle East, Nepal, Ethiopia, Rwanda, Ecuador IEC 62271-202 CE + IEC Type Test Report + COC for customs clearance
Chile IEC 62271-202 SEC
Brazil NBR 16090 INMETRO

250 kva Compact substation FAT (Factory Acceptance Test) Items


Oil-immersed distribution transformer, ONAN cooling, off-circuit tap changer, built-in metering CT | IEC 60076 / GB 1094
Routine Tests (free of charge) Type Tests (chargeable) Special Tests (chargeable)
1) Winding resistance test 1) Temperature rise test 1) Special insulation test
2) Voltage ratio measurement and connection group symbol verification 2) Insulation type test 2) Measurement of winding hot-spot temperature rise
3) Measurement of short-circuit impedance and load loss 3) Sound level determination for each cooling method 3) Measurement of capacitance to earth and between windings
4) Measurement of no-load loss and no-load current 4) Measurement of no-load loss and no-load current at 90%–100% of rated voltage 4) Measurement of dielectric dissipation factor of the insulation system capacitance
5) Measurement of DC resistance to earth and between windings   5) Measurement of zero-sequence impedance of three-phase transformers
6) Routine insulation test
7) Pressure sealing test for liquid-immersed transformers
8) Ratio and polarity test of built-in current transformers
9) Insulation measurement of core and clamps of liquid-immersed transformers
10) Insulating liquid test

Transformer Test Items and Relevant Standards
1. Winding resistance measurement (IEC 60076-1)
2. Voltage ratio measurement and connection group symbol verification (IEC 60076-1)
3. Measurement of short-circuit impedance and load loss (IEC 60076-1)
4. Measurement of no-load current and no-load loss (IEC 60076-1)
5. Measurement of winding-to-earth insulation resistance and/or dielectric dissipation factor of the insulation system capacitance (IEC 60076-1)
6. Routine insulation test (IEC 60076-3)
7. Insulating oil test (IEC 60156 / IEC 60296)
8. Special tests
8.1 Special insulation test (IEC 60076-3)
8.2 Measurement of zero-sequence impedance of three-phase transformers (IEC 60076-1)
8.3 Sound level determination (IEC 60076-10)
Note: The transformer tests above are based on the IEC 60076 series (IEC 60076-1 / -2 / -3 / -10). The compact substation as a whole — enclosure, HV and LV compartments — complies with IEC 62271-202.



Why Choose Hengfengshuai Electric?



✅ Rugged design for harsh outdoor climates Anti-salt spray coating passes 1000 hours salt spray test. Reinforced oil sealing structure reduces oil leakage risk, suitable for ambient temperature ranging from -25°C to +55°C, resisting dust, high humidity and large diurnal temperature variation.

✅ Stable delivery schedule to avoid project penalties In-house production capacity supports flexible batch orders. Standard models can be delivered within 25–35 working days after deposit. Complete IEC type test reports are ready in advance, no waiting for third-party testing.

✅ Low-loss design to cut long-term operational cost Adopts high-grade cold-rolled silicon steel core. No-load loss is 15%–22% lower than conventional standard designs, helping power utilities save substantial energy expenditure over the 30-year design service life.

✅ Full documentation package for local certification & grid approval We supply complete IEC test reports, CE certificates and supporting files for NRCS/SABS, SEC, INMETRO, SABER, COC and PVoC application. Drawings, nameplates and connection schemes can be customized to meet requirements from ESKOM, EEU, NEA and other local power authorities to avoid repeated revision.

✅ User-friendly structure for fast field installation Standard lifting lugs and bracket dimensions match mainstream utility pole mounting specifications. Full set of accessories is supplied together, cutting on-site modification work and shortening installation time by around 30%.

✅ Responsive global after-sales service Global technical support team provides online troubleshooting within 24 hours. Spare parts stock is available for fast shipment, minimizing outage duration for remote sites.

✅ Customizable protection capability for fluctuating loads Tailored protection schemes are available for irrigation motors, small PV grid-tie and industrial impulse loads, effectively lowering overheating and winding failure risks.



   Get A Quote



FAQ



Q1: What is the design service life of the 250 kVA compact substation?
A: The design service life is 25 years under rated load, ambient temperature range of -40℃ ~ +45℃ and periodic maintenance. Actual service life is affected by site corrosion level, dust pollution and load cycling.


Q2: Can dry-type transformer configuration be selected for this 250 kVA compact substation?

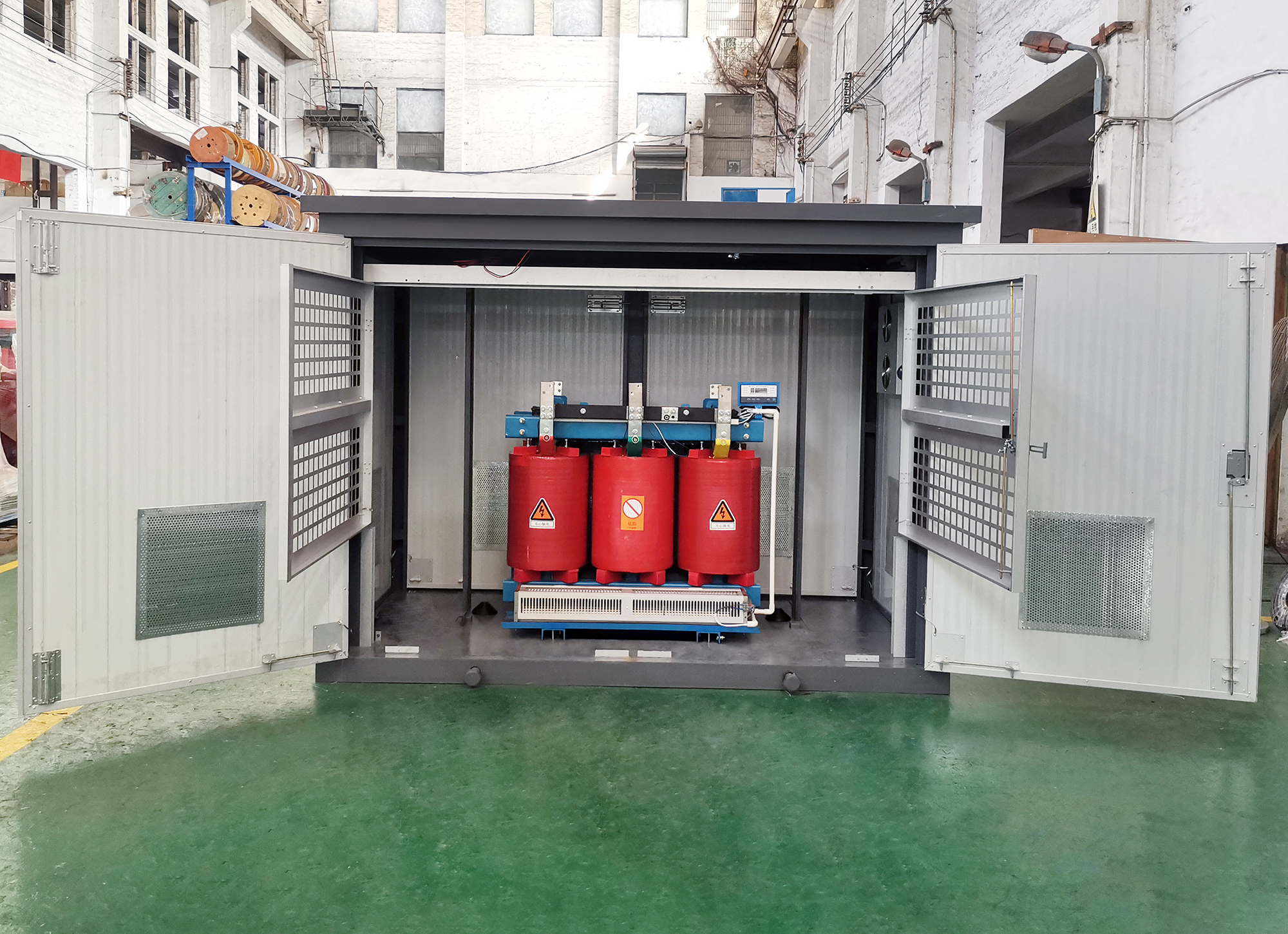

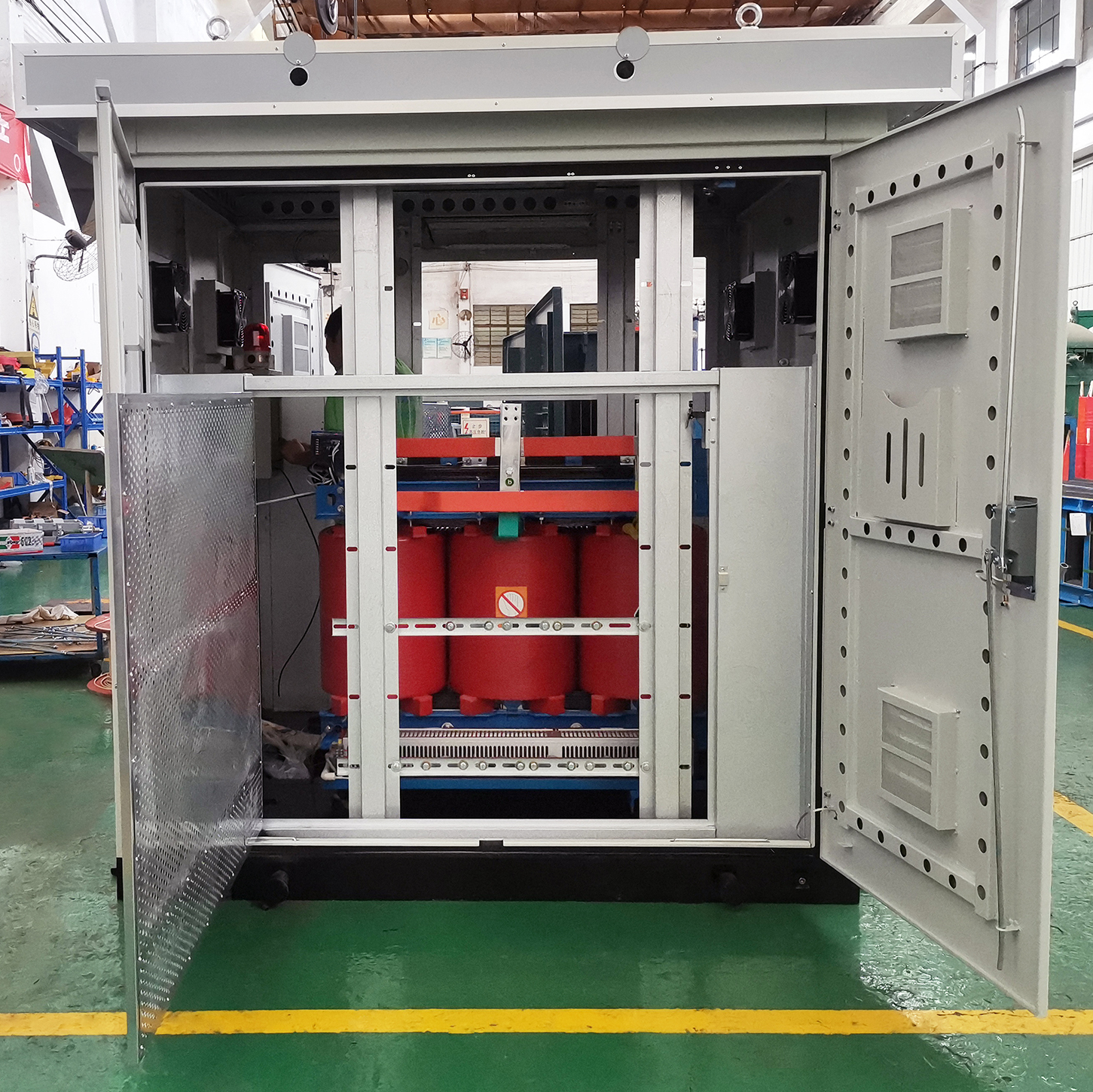

A: Yes. Both oil-immersed ONAN and dry-type AN transformer options are available to meet fire safety and environmental requirements of different sites, and temperature rise indicators comply with corresponding transformer standards.


Q3: What enclosure protection grades are available?
A: IP43 is standard for outdoor application; IP54 upgraded enclosure is optional for high-dust, heavy rainfall and coastal salt fog locations, which should be specified at inquiry stage.


Q4: Does the unit come with remote monitoring function?
A: Remote monitoring hardware is not included in standard configuration. Optional smart monitoring gateway can be integrated to collect temperature, current, voltage and switch status data for remote data transmission.


Q5: What is the typical lead time for 250 kVA compact substation orders?
A: Standard configuration: 35–45 working days. Customised versions with special voltage, IP54 enclosure, C5‑M anti-corrosion coating, smart monitoring or dry-type transformer: 45–60 working days. Final lead time depends on component availability and technical agreement confirmation.


Q6: What test documents will be delivered together with goods?
A: Each shipment includes complete FAT report, single-line drawing, layout drawing, operation & maintenance manual and copies of component certificates. Third-party witness test reports can be arranged per contract terms.



Product parameters
250 kva Compact substation Selection Table

No. Item Unit Parameter
1 Manufacturer — Hengfengshuai Electric
2 Product Model — 250 kVA Compact Substation
3 Applicable Standards — IEC 62271‑202 / IEC 60076 / IEEE C57.12.00 / IEEE C57.12.90 / NEMA TR‑1
4 Energy Efficiency Standard — Compliant with DOE 2016
5 Rated Capacity kVA 250
6 Rated High Voltage kV 12 /13.8 /15 /20 or custom
7 HV Tap Range % ±2×2.5% (Off-circuit Tap Changer)
8 Rated Low Voltage kV 0.4 /0.48 /0.69 or custom
9 Vector Group — Dyn11
10 Frequency Hz 50 / 60
11 Cooling Method — ONAN(Oil-immersed); AN(Dry-type optional)
12 Enclosure Protection Class — IP43(Standard); IP54(Optional)
13 Compartment Layout — 3-compartment: MV / Transformer / LV with mechanical interlock
14 Winding Material — Oxygen-free Copper; Aluminium Winding Optional
15 Insulating Fluid (oil-immersed version) — Non-PCB Mineral Oil; FR3 Vegetable Oil Optional
16 Short-circuit Impedance % 4.0% (±10%, Customizable)
17 Temperature RiseWinding Temperature RiseTop-oil Temperature Rise KK ≤65 K≤55 K
18 Sound Level dB ≤58 dB at 1 m
19 Overall DimensionL × W × HTotal Assembly Weight mmkg 2200 × 1650 × 21004200
20 Ambient ConditionsMax. Ambient TemperatureOperating Ambient TemperatureRelative HumidityCorrosion Class ℃℃—— +45℃-40 ~ +45℃<95% (Non-condensing)ISO‑12944‑2 C3; C5‑M Optional
21 Standard AccessoriesAnti-condensation HeaterCompartment LED LightingMechanical Door InterlockEarthing Busbar AssemblyOil-collection Sump (oil-type)Stainless-steel Laser-etched Nameplate setsetsetsetsetpcs 111111
22 Factory Acceptance Test — Full-system FAT performed before shipment
23 Warranty Period month 24 (Negotiable per project)
24 Packaging & Shipment — Sea-worthy reinforced packaging; Loading Port: Qingdao; EXW available
25 Type Test Report — Available upon customer request



   Get Technical Support

Ordering instructions

Need a customized solution for your project?


Please provide the following technical information for accurate quotation and drawing confirmation:


       *  Rated HV voltage & LV voltage, frequency (50 Hz /60 Hz)

       *  Transformer type: oil-immersed ONAN or dry-type AN

       *  Enclosure requirement: protection grade (IP43 / IP54), corrosion class (C3 / C5‑M), shell colour / RAL code

       *  MV switch type, quantity of LV outgoing feeders, reactive power compensation capacity (if required)

       *  Optional functions: smart monitoring gateway, additional surge protection, spare parts list

       *  Local applicable standards and certificate requirements (CE / KEMA / UL / CSA / factory test report only)

       *  Project type and site environmental description

       *  Order quantity, destination port, Incoterms, packaging requirement and target delivery schedule
