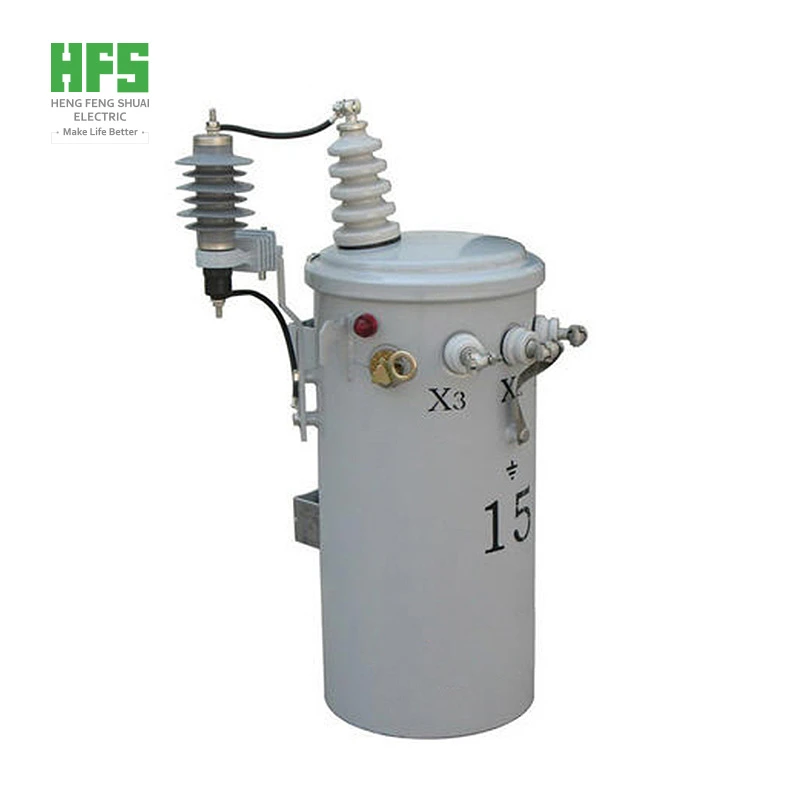

50 kva Single Phase Pole Mounted Transformer

  • Classification: Pole Mount Transformer
  • Number of Views: 78次
  • Date of issue: 2026-11-13 11:10:49


  • Product overview:

    The 50kVA single-phase pole-mounted transformer is an outdoor oil-immersed distribution unit designed for overhead power grids and configured for pole-top installation. This utility-grade transformer supports custom voltage configurations and can be widely deployed for voltage transformation in residential communities, rural overhead lines and small commercial & industrial loads.


    It complies with IEEE C57, ANSI C57, IEC 60076 and technical specifications of local power utilities, and serves grid codes of the United States, Chile, Canada, Honduras, Ecuador, Guyana, Venezuela, Brazil, the Philippines, Iraq and other regions. OEM & ODM services are available to meet diversified project requirements.


    Optional anti salt-spray treatment enables stable operation under tropical, high-altitude and coastal harsh ambient conditions. It also fits for street lighting, remote public facilities, small single-phase distributed PV connections and temporary power supply for remote construction sites.



    Input Voltage: 11kV, 12.47kV, 13.2kV, 13.8kV, 34.5kV or customised ratings

    Output Voltage: 120/240V, 240/480V, 347/600V and other customised options


Product advantages
 50 kva Single Phase Pole Mounted Transformer


Product Advantages of 50kVA Single‑phase Pole‑mounted Transformer



Optimized Design of Windings and Core



A dedicated winding layout is adopted to achieve low leakage flux and high mechanical strength, greatly improving lightning impulse withstand and short‑circuit withstand capability under outdoor overhead operating conditions.


The core is constructed with 45° mitred high‑permeability grain‑oriented silicon steel sheet from Baosteel / WISCO, which reduces no‑load loss, vibration and operating noise and enhances overall conversion efficiency. The LV winding uses high‑quality paper‑covered copper wire, while the HV winding adopts premium polyurethane enameled round copper wire. Interlayer adhesive paper solidifies the coils into a rigid assembly to prevent coil deformation during long‑term operation and long‑distance transportation.



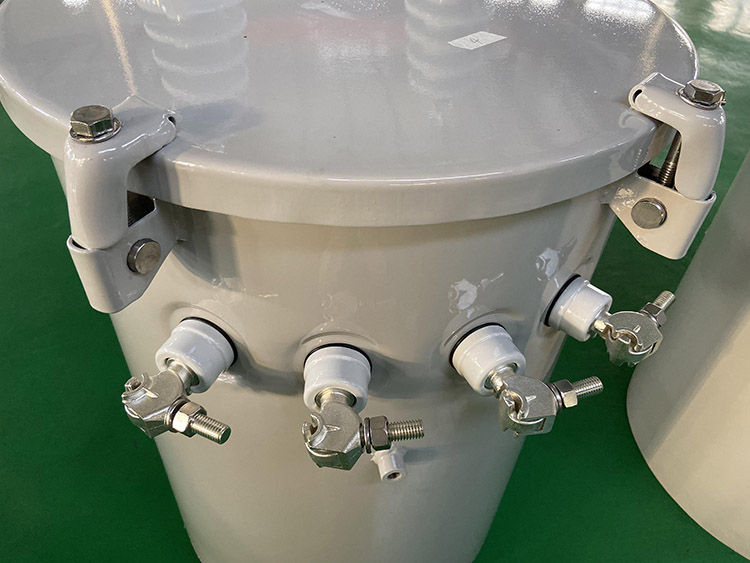

High-precision Fully Sealed Cylindrical Tank



Tank plates are processed by Mitsubishi laser cutting, CNC punching and bending with micron‑level dimensional accuracy. All welds are automatically completed by ABB robotic welding and inspected via laser flaw detection, bringing a near‑zero weld leakage rate and a first‑pass yield rate up to 99.99998%.


The tank exterior is finished with electrostatic powder coating, featuring a 50‑year designed coating service life and passing 1000‑hour salt spray corrosion test with surface hardness ≥0.4. C5‑M heavy‑duty anti‑salt‑fog coating is available as an upgrade for coastal applications. With a fully sealed maintenance‑free structure, the designed service life exceeds 30 years under rated operating conditions.



Premium Supply Chain and Rigorous Quality Inspection System


       *  Silicon Steel Sheet: Authentic high‑grade grain‑oriented silicon steel from Baosteel, WISCO

       *  Conductor: High‑purity Oxygen‑free Copper

       *  Insulating Oil: PetroChina Kunlun 25# Mineral Transformer Oil; FR3 Flame‑retardant Biodegradable Ester Oil Optional

       *  Every unit undergoes a full set of Factory Acceptance Tests (FAT) before delivery, including ratio test, withstand voltage test, partial discharge measurement, insulation resistance test and pressure leakage test. Complete test reports can be supplied for project approval.



Flexible Customization and Comprehensive Safety Protection



Current‑limiting fuses and surge arresters are equipped as standard to protect against overcurrent, lightning impulse and grid fluctuation. Porcelain or high‑strength polymer material can be selected for HV and LV bushings. Voltage ratio, tap range, loss figures, coating colour and auxiliary accessories can all be adjusted according to customer single‑line diagrams and local grid standards.


Integrated Components & Core Configuration


No. Item Specification & Model Remarks
1 Core High-grade CRGO silicon steel sheet, step-lap core Low magnetostriction, low noise
2 Primary & Secondary Winding Copper / aluminum conductor, paper insulated, vacuum impregnated Customizable
3 Tank Carbon steel, 304 stainless steel optional; ANSI 60 grey paint Fully sealed welded structure
4 Insulating Oil Mineral transformer oil / biodegradable vegetable ester oil Ester oil for environmentally sensitive areas
5 Tap Device Off-circuit tap changer, ±2×2.5% Adjustment only when power off
6 Protection Package (CSP Version) Primary expulsion fuse, secondary bayonet fuse, surge arrester, pressure relief valve, liquid level gauge CSP = Completely Self-Protected
7 Standard Fittings Lifting lugs, pole mounting brackets, oil drain valve, sampling valve, nameplate Compatible with ANSI overhead installation
8 Optional Accessories Spare bushing set, oil sampling kit, grounding clamp, temperature indicator Quoted separately

Typical Application Scenarios For 50kVA Single‑phase Pole‑mounted Transformer


       *  Rural Household Electrification & Remote Village Loads 50kVA single‑phase pole‑mounted transformer serves scattered rural households, small family stores and domestic water pumps in sparsely populated areas. It steps down overhead single‑phase medium voltage to 120/240V low voltage, matching single‑phase residential consumption habits and minimizing distribution line investment.

       *  Small Distributed Solar Off‑grid & Grid‑tied Systems This transformer works for small rooftop PV sets and mini ground‑mount solar systems for remote homesteads. It realizes voltage conversion and power delivery for single‑phase solar output, supporting net metering and stable power supply for independent rural solar schemes.

       *  Agricultural Irrigation & Farm Auxiliary Loads 50kVA single‑phase pole‑mounted transformer is widely deployed for farm irrigation pumps, livestock breeding ventilation equipment, farm warehouse lighting and small agricultural processing machines. Its pole‑mounted installation adapts to open farmland with limited available ground space.

       *  Roadside Amenities & Isolated Public Utilities It is used for isolated roadside shops, remote bus stops, highway segment lighting, borehole pumping units and forest ranger stations. The oil‑immersed ONAN structure features good environmental adaptability for standalone outdoor single‑phase loads far away from main three‑phase feeders.

       *  Island & Coastal Community Power Supply 50kVA single‑phase pole‑mounted transformer fits island fishing settlements and scattered coastal hamlets. Anti‑salt‑fog surface treatment option is available to resist marine humid and corrosive atmosphere, maintaining reliable power supply for coastal residential and small fishery loads.

       *  Temporary Remote Site Single‑phase Power Supply The unit can be deployed as movable single‑phase power source for forest survey, geological exploration and temporary fishing camps. Easy hoisting and pole mounting enable rapid commissioning; it can be relocated or retained as permanent distribution equipment after field work completion.


Standards & Certifications



This product is manufactured in strict accordance with mainstream international specifications for distribution transformers. Corresponding certificates, test documents and third-party certification support can be provided upon project requirements:



Country System Applicable Standards Certifications
USA ANSI/IEEE IEEE C57.12.20, C57.12.00, C57.12.90, C57.12.31, C57.91; DOE 2016 (10 CFR 431); NEMA TR1 UL Listing, DOE compliance certificate, RUS (for rural grid projects)
Canada ANSI/IEEE CAN/CSA C2.2, IEEE C57.12.20, C57.12.00 cUL / CSA certificate
Ecuador ANSI/IEEE IEEE C57.12.20, C57.12.90, C57.12.00 UL or KEMA/CESI type test report, factory routine test certificate
Saudi Arabia ANSI/IEEE IEEE C57.12.20, SASO technical specification SASO certificate, UL or KEMA report
UAE IEC IEC 60076-1/-2/-3; DEWA/ADDC specification CE marking, KEMA type test report
Colombia ANSI/IEEE IEEE C57.12.20, C57.12.90 UL or KEMA report, RETIE relevant documents
Peru ANSI/IEEE IEEE C57.12.20, NEMA TR1, C57.12.90 UL or KEMA report, factory test certificate
Mexico ANSI/IEEE IEEE C57.12.20, NEMA TR1 UL or KEMA/CESI type test report
Philippines ANSI/IEEE IEEE C57.12.20, NEMA TR1 UL or KEMA report, ERC relevant documents

FAT (Factory Acceptance Test) Items


Factory Tests and Reports
Routine Tests (free of charge) Type Tests (chargeable) Special Tests (chargeable)
1) Winding resistance test 1) Temperature rise test 1) Special insulation test
2) Voltage ratio measurement and connection group symbol verification 2) Insulation type test 2) Measurement of winding hot-spot temperature rise
3) Measurement of short-circuit impedance and load loss 3) Sound level determination for each cooling method 3) Measurement of capacitance to earth and between windings
4) Measurement of no-load loss and no-load current 4) Power measurement of fan and oil pump motors 4) Measurement of dielectric dissipation factor of the insulation system capacitance
5) Measurement of DC resistance to earth and between windings 5) Measurement of no-load loss and no-load current at 90%–100% of rated voltage 5) Determination of transient voltage transfer characteristics
6) Routine insulation test   6) Measurement of zero-sequence impedance of three-phase transformers
7) On-load tap changer test   7) Short-circuit withstand test
8) Pressure sealing test for liquid-immersed transformers
9) Pressure sealing test for gas-filled transformer tanks
10) Ratio and polarity test of built-in current transformers
11) Insulation measurement of core and clamps of liquid-immersed transformers
12) Insulating liquid test



Transformer Test Items and Relevant Standards

No. Test Items Relevant Standards (ANSI / IEEE / ASTM)
1 Winding resistance measurement IEEE C57.12.90, Resistance measurements
2 Voltage ratio measurement and connection group symbol verification IEEE C57.12.90, Ratio, polarity and phase-relation tests
3 Measurement of short-circuit impedance and load loss IEEE C57.12.90, Impedance and load loss measurements
4 Measurement of no-load current and no-load loss IEEE C57.12.90, No-load loss and excitation current measurements
5 Measurement of winding-to-earth insulation resistance and/or dielectric dissipation factor of the insulation system capacitance IEEE C57.12.90
6 Routine insulation test IEEE C57.12.90, Dielectric tests; per IEEE C57.12.00
7 On-load tap changer test IEEE C57.131; verified per IEEE C57.12.90
8 Insulating oil test ASTM D117 / IEEE C57.106
9 Special tests
9.1 Special insulation test IEEE C57.12.90, Special dielectric tests
9.2 Measurement of zero-sequence impedance of three-phase transformers IEEE C57.12.90
9.3 Sound level determination IEEE C57.12.90, Audible sound level measurements

Why Choose Hengfengshuai Electric?




✅ Proven Technology & Strict Quality Control

Hengfengshuai Electric boasts 30 years of experience in power transmission and distribution equipment manufacturing and operates under the ISO9001 quality management system. Full-process control is implemented from raw material incoming inspection, production & assembly to finished-product testing. Every transformer undergoes complete Factory Acceptance Tests (FAT) before shipment. Test records and video documentation are available, and witness tests at our factory by third parties such as SGS and BV are supported.


With proprietary energy-saving technologies, our distribution transformers feature a designed service life of 25–35 years, effectively cutting the whole-life-cycle operation and maintenance cost. The products comply with GB, IEC, IEEE/ANSI, CSA and multi-country standards, backed by UL, CSA, CE, KEMA and other certifications to meet grid acceptance requirements across different countries.



✅ Strong Customization Capability for Global Projects

Deep OEM & ODM customization is supported. Custom modifications can be developed according to customer single-line diagrams, local grid parameters and special operating conditions such as high temperature and heavy salt spray. Suitable for photovoltaic, wind power, rural grid renovation, industrial park and overseas EPC projects. Voltage ratios, loss figures, bushings, anti-corrosion grades and insulating oil types can all be configured as requested.



✅ Reliable Delivery & Stable Supply Chain

A mature SQA supplier quality assurance system is established. Key raw materials are fully traceable to guarantee consistent product quality batch by batch. Standard delivery for distribution transformers can be as fast as 15 days. We are proficient in full sets of foreign trade documentation, export packaging and international logistics procedures. Our products are supplied to more than 50 countries worldwide, with rich practical experience in projects across America, Africa, the Middle East and Southeast Asia. We track the whole order progress covering production, inspection and container loading. One-stop supply of matching complete equipment is also available to simplify multi-supplier procurement coordination for overseas clients.



✅ Full Lifecycle Technical Services

Our professional electrical engineering team provides pre-sales model selection and scheme optimization support. After receiving written fault notification, we aim to deliver an initial solution within 12 hours. Remote guidance for installation, commissioning and troubleshooting is available. On-site engineer service can be arranged upon negotiation when necessary. Spare parts repair and replacement are covered under the warranty as stipulated in the contract. Complete English technical manuals, outline drawings, connection diagrams and factory test reports for project submission are delivered together with goods.


✅ Flexible Cooperation Terms

Whether for bulk procurement of large EPC projects or small trial orders from distributors and end users, configurations, lead times and commercial terms can be negotiated. We are committed to building long-term and stable partnerships.



   Get A Quote

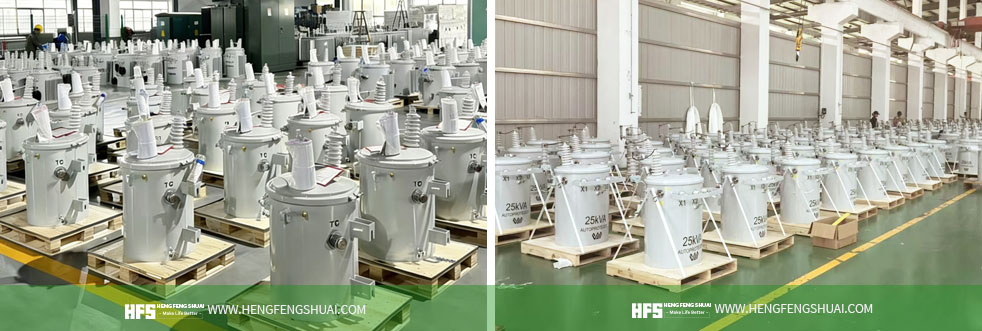

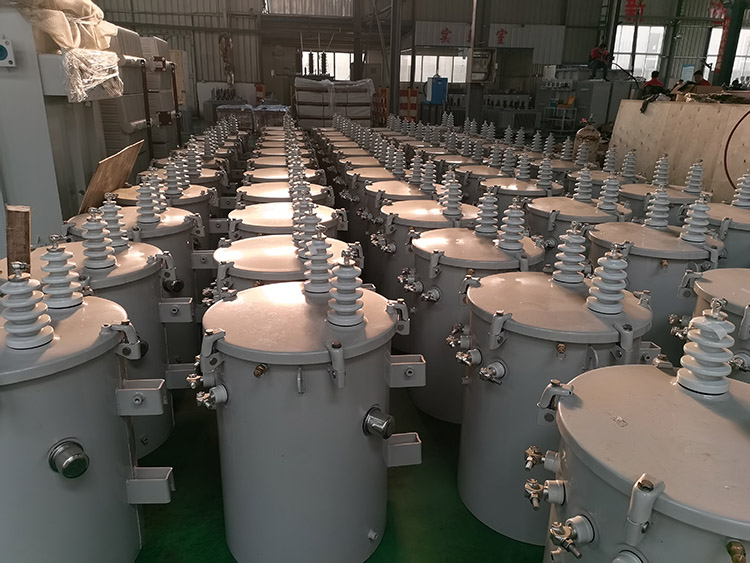

50KVA Single-Phase Pole Transformer Case

50KVA Single-Phase Pole Transformer Case


FAQ for 50kVA Single‑phase Pole‑mounted Transformer



Q1: What international standards does this 50kVA single‑phase pole‑mounted transformer comply with?
A1: It conforms to ANSI/IEEE C57.12 series, IEC 60076, NEMA TR‑1 and DOE 2016 energy efficiency specifications. CSA‑compliant versions are available upon custom request.


Q2: Can voltage ratio, tap positions and accessories be customized?
A2: Yes. Primary & secondary voltage, off-circuit tap range, loss parameters, bushing type, coating colour and auxiliary accessories can all be adjusted according to single‑line diagrams and local power utility requirements.


Q3: Can the insulating oil be changed to FR3 ester oil?
A3: Yes. FR3 flame‑retardant and biodegradable ester oil is an upgraded option, suitable for sites with special safety requirements.


Q4: What is the operating ambient temperature range of the unit?
A4: Standard operating range: ‑40℃ ~ +45℃. Special modification is available for extremely cold or high‑temperature regions.


Q5: What anti‑corrosion solutions are available for coastal high salt‑fog environments?
A5: Electrostatic powder coating is supplied as standard. C5‑M heavy‑duty anti‑corrosion and salt‑resistant coating is optional for coastal projects.


Q6: What documents are delivered together with the shipment?
A6: Chinese / English operation manual, outline dimension drawing, wiring schematic diagram and complete factory test reports.


Q7: What is the warranty period?
A7: 18 months after shipment or 12 months after commissioning, whichever comes first.


Q8: Is third‑party witness test before delivery available?
A8: Yes. SGS, BV or other customer‑appointed institutions can witness FAT tests and container loading inspection on site.


Q9: What key technical information is required for an inquiry?
A9: Rated capacity, primary & secondary voltage, frequency, installation conditions (altitude, temperature, coastal / inland), applicable standards for target market and other special technical requirements. Our engineers can quickly prepare technical proposals and commercial quotations.




Product parameters

 Selection Table



No. Item Unit Parameter
1 Manufacturer — Hengfengshuai Electric
2 Product Model — Single-phase Pole-mounted Transformer
3 Applicable Standards — IEEE C57.12.00 / IEEE C57.12.90 / IEC 60076 / NEMA TR-1
4 Energy Efficiency Standard — Compliant with DOE 2016
5 Rated Capacity kVA 50
6 Rated High Voltage V 34500 / 19920 / 13800 / 13200 / 12470 or custom
7 HV Tap Range % ±2×2.5% (No-load Tap Changer)
8 Rated Low Voltage V 120-240 / 240-480 / 347 / 600 or custom
9 Vector Group — Ii0 / Ii6
10 Frequency Hz 50/60
11 Phase — Single-phase
12 Cooling Method — ONAN Oil-immersed Self-cooled
13 Installation Type — Outdoor Pole-top Mounting
14 Insulation Class — Class A
15 Winding Material — Oxygen-free Copper; Aluminum Winding Optional
16 Insulating Fluid — Non-PCB Mineral Oil; FR3 Vegetable Oil Optional
17 HV Bushing — Porcelain Bushing; Polymer Bushing Optional
18 LV Bushing — Porcelain Bushing; Polymer Bushing Optional
19 Short-circuit Impedance % 2.7% (±10%, Customizable)
20 No-load Loss W 135
21 Load Loss (75°C) W 500
22 No-load Current % 0.7%
23 Sound Level (NEMA TR-1) dB <58dB
24 Lightning Impulse Withstand Voltage HV / LV kV 95 / 30
25 Power Frequency Withstand Voltage HV / LV kV 35 / 5
26 Temperature Rise —
  Winding Temperature Rise K 65K
  Top Oil Temperature Rise K 55K
27 Overall Dimension —
  L × W × H mm 635 × 675 × 1035
  Total Weight kg 395
28 Ambient Conditions —
  Max. Ambient Temperature °C +45°C
  Operating Ambient Temperature °C -40 ~ +45°C
  Relative Humidity — <95% (Non-condensing)
  Corrosion Class — ISO-12944-2 C3; C5-M Optional
29 Standard Accessories —
  Self-sealing Pressure Relief Valve pcs 1
  NEMA Standard Bracket & Support Plate set 1
  Oil Drain & Sampling Valve pcs 1
  Surge Arrester set 1
  Current-limiting Fuse Assembly set 1
  Earthing Terminal pcs 2
  Stainless Steel Laser-etched Nameplate pcs 1
  Lifting Lugs set 1
30 Tank Pressure Test kPa 69kPa, hold for 1h, no leakage
31 Warranty Period month 18
32 Packaging & Shipment — Containerized packaging; Loading Port: Qingdao; EXW Available
33 Type Test Report — Available upon request
