Product advantages

---

Key Advantages of our 15kV Three-Phase Oil-Immersed Power Distribution Transformer

• Leading-Edge Winding Technology: Engineered with advanced high-voltage copper tape winding and low-voltage copper foil winding, this 15kV three-phase oil-immersed power distribution transformer delivers unmatched lightning impulse resistance and features premium Class-A insulation materials.

• Superior Mechanical Strength: Designed with low magnetic leakage and exceptional short-circuit withstand capability, our 15kV three-phase oil-immersed power distribution transformer ensures ultimate grid stability.

• Advanced Step-Lap Core Structure: Utilizing a 45° full-oblique joint step-laminated core structure, this 15kV three-phase oil-immersed power distribution transformer significantly lowers operational noise and no-load losses.

Precision-Engineered Tank & Enclosure

• State-of-the-Art CNC Fabrication: The tank of the 15kV three-phase oil-immersed power distribution transformer is processed using top-tier Mitsubishi laser cutting machines and advanced CNC punching and bending equipment to guarantee flawless dimensional accuracy.

• Robot Automatic Welding & Zero-Leakage: Featuring ABB robotic automatic welding and high-precision laser detection, the enclosure eliminates any risk of oil leakage, boasting an extraordinary quality qualification rate of 99.99998%.

• 50-Year Ultra-Durable Coating: Treated with premium electrostatic powder spraying, the anti-corrosion coating system offers exceptional hardness ($\ge 0.4$) and salt spray resistance within 100h, promising up to 50 years of paint durability.

• Fully Sealed & Maintenance-Free: The fully sealed structure protects the cooling medium from aging, offering a maintenance-free service life exceeding 30 years for the 15kV three-phase oil-immersed power distribution transformer.

High-Efficiency Iron Core & Coils

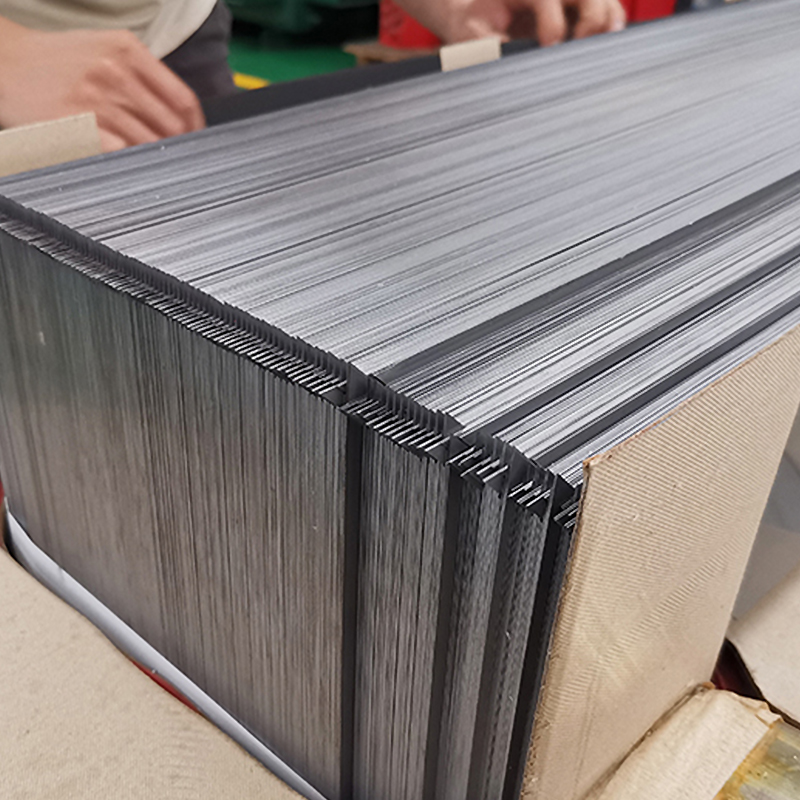

• Premium Silicon Steel Core: The iron core of our 15kV three-phase oil-immersed power distribution transformer is built from high-quality, cold-rolled grain-oriented (CRGO) silicon steel sheets with mineral oxide insulation (sourced from industry giants like Baosteel and Wisco). By controlling precision cutting and stacking, we minimize no-load current and acoustic noise.

• Patented Winding Innovation: While the low-voltage coils utilize high-grade copper foil for excellent insulation resistance, the high-voltage windings leverage Hengfengyou Electric’s patented technology using insulated copper wire, providing supreme resistance to radial stresses caused by short circuits.

• Structural Reinforcement: The entire core and coil assembly is specially reinforced to withstand rigorous vibrations during transportation and normal grid operations.

Top-Tier Raw Materials & Components

To ensure the premium quality of each 15kV three-phase oil-immersed power distribution transformer, we only source from world-class suppliers:

• Core Sheets: Baosteel & Wisco high-permeability CRGO silicon steel.

• Conductors: Premium-grade Chinese anaerobic (oxygen-free) copper.

• Insulating Oil: CNPC (PetroChina Kunlun Petroleum) High-Quality 25# Transformer Oil.

Technical Configurations & Safety Standard

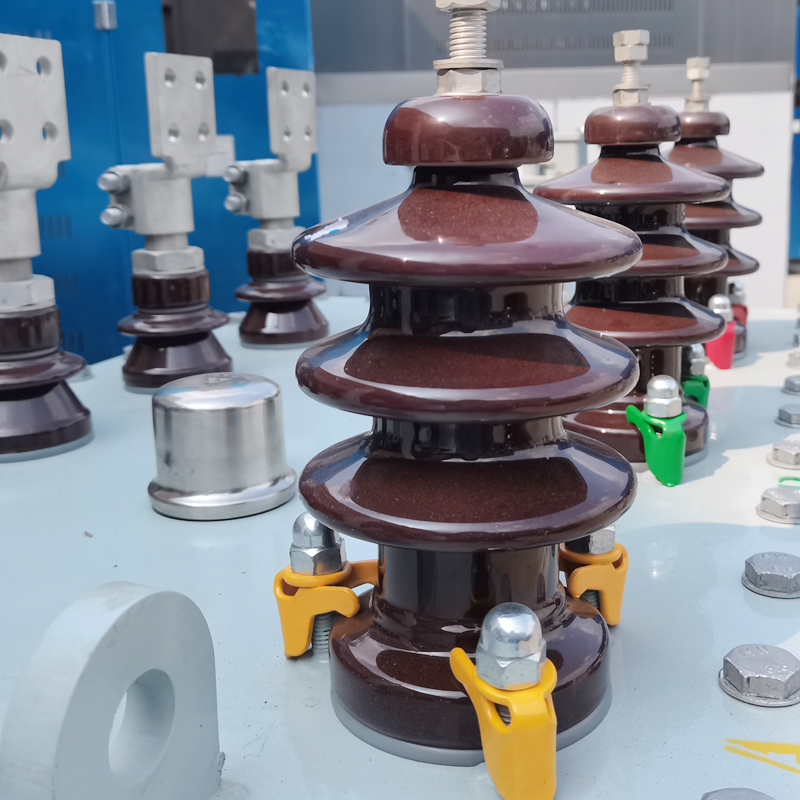

• Tinned Copper Connections: Equipped with high-conductivity tinned copper bars for low-voltage outgoing terminals, and robust ring tinned bolts for high-voltage outlet terminals.

• Flexible Tap Changer Options: Standard configuration features a 5-step or 7-step Off-Circuit Tap Changer (NLTC), with On-Load Tap Changer (OLTC) available for customization.

• Advanced Gas Relay Protection: For units rated above 630 kVA, high-sensitivity gas relays are installed as standard to ensure real-time safety monitoring for the 15kV three-phase oil-immersed power distribution transformer.

Why Choose Hengfengshuai 15kV Three-Phase Oil-Immersed Power Distribution Transformer?

As the core power hub for modern green grids and low-carbon industrial projects, choosing Hengfengshuai means choosing a higher grid return on investment (ROI) and significantly reduced operational risks.

Thanks to Hengfengyou Electric's proprietary "Ultra-Low Loss Energy-Saving Power Transformer" patented technology, every Hengfengshuai 15kV three-phase oil-immersed power distribution transformer achieves a 5% saving in raw materials. Compared to standard market alternatives, its comprehensive operational losses are reduced by 10% to 20%.

Whether for urban grid upgrades, large industrial parks, renewable energy plants like wind and solar, or long-distance international transport projects, the Hengfengshuai 15kV three-phase oil-immersed power distribution transformer is your ultimate eco-friendly, energy-saving, and cost-effective turnkey high-voltage power solution.

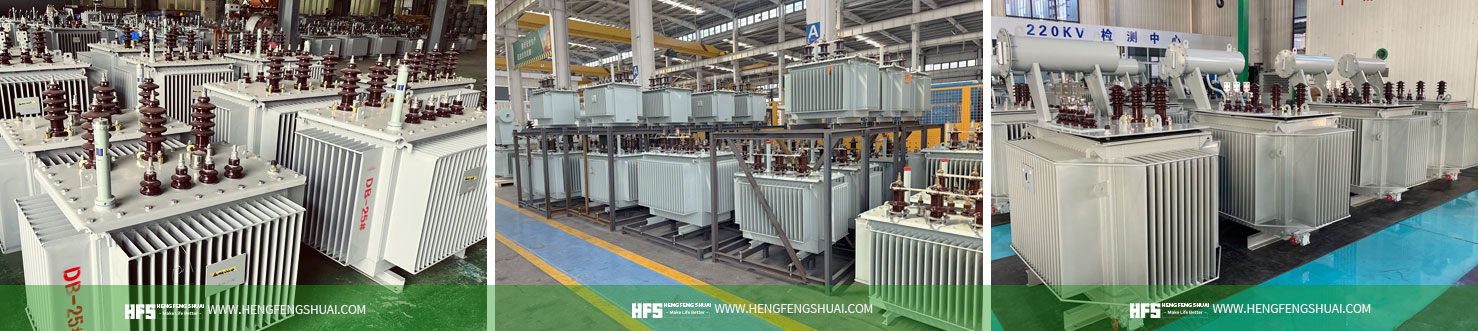

15kV Three-Phase Oil-Immersed Power Distribution Transformer Case


15kV Three-Phase Oil-Immersed Power Distribution Transformer FAQ

1. Standards & Certification

Q1: What international standards do your 15kV‑class oil‑immersed transformers comply with? Can they meet local grid grid‑tie requirements for 15kV networks? A1: All our 15kV‑class oil‑immersed transformers are fully designed and tested in accordance with IEC 60076 international core standards. We can customize 15kV transformer products to match regional standards applicable for 15kV power systems, including EN (EU 15kV distribution networks), GOST (CIS 15kV grids), ANSI/IEEE (North‑American 15kV class), AS/NZS (Oceania 15kV distribution), INMETRO (Brazil 15kV networks), SABS (South‑Africa 15kV grid), KEBS (Kenya 15kV distribution), SASO (Saudi Arabia 15kV power system) and other national grid specifications for 15‑kV‑rated assets. We will complete standard‑compliance evaluation and provide official certification documents according to the project country and owner’s requirements before order confirmation.

Q2: Can you provide type test reports and third‑party witnessed tests for 15kV units? Is WTT (Witnessed Test) available? A2: Complete set of type‑test reports certified by CNAS, UL, KEMA are available for all standard 15kV oil‑immersed transformer models. For high‑voltage main‑grid and key overseas EPC projects applying 15kV equipment, factory witnessed tests (WTT) covering temperature‑rise, sudden short‑circuit, lightning‑impulse and other key items can be arranged in advance for 15kV oil‑immersed transformers.

Q3: Are technical documents for 15kV transformers available in English and multi‑language versions? A3: Standard delivery includes full English technical‑document package for 15kV oil‑immersed transformers: nameplate drawing, general‑assembly drawing, FAT test report, operation & maintenance manual and spare‑parts list. French, Spanish, Portuguese, Arabic, Russian and other‑language versions of 15kV‑transformer documents can be customized on request.

2. Technical Performance & Customization

Q4: Do you use copper or aluminum windings for your 15kV oil‑immersed transformers? Can you provide written material commitment? A4: Both pure‑copper‑winding and aluminum‑winding solutions are optional for our 15kV oil‑immersed transformers. Winding‑material specifications of 15kV oil‑immersed transformers can be clearly stipulated in the technical agreement and formal contract, with supporting material‑inspection documents provided.

Q5: Can loss, impedance, temperature‑rise and insulation parameters of 15kV transformers follow our technical datasheet? How to handle unqualified loss data? A5: All core electrical parameters of our 15kV oil‑immersed transformers can be fully customized according to the client’s technical specification. All indicators of 15kV oil‑immersed transformers are tested and verified before delivery. Products that fail FAT loss testing will never be shipped, ensuring 100 % compliance with contract indicators for all 15kV oil‑immersed transformer equipment.

Q6: Can your 15kV oil‑immersed transformers adapt to harsh environments (high altitude, high temperature, salt spray, seismic area)? A6: Professional harsh‑environment customized design is available for our 15kV oil‑immersed transformers, including: high‑altitude temperature‑rise optimization, tropical high‑temperature heat‑dissipation enhancement, coastal salt‑spray anti‑corrosion treatment (up to C5M grade), and seismic‑reinforcement structure. We will customize the 15kV oil‑immersed‑transformer solution according to on‑site temperature, altitude, salt‑spray grade and seismic intensity.

Q7: Is the 15kV transformer suitable for photovoltaic / wind‑power harmonic load? Can it resist harmonic interference? A7: We provide harmonic‑resistant 15kV oil‑immersed transformers specially customized for new‑energy grid‑connection. By optimizing magnetic‑flux design and temperature‑rise margin, the anti‑harmonic 15kV oil‑immersed transformer can stably adapt to complex harmonic working conditions of photovoltaic and wind‑power projects.

Q8: What is the noise level of your 15kV transformers? Can it meet residential‑area noise‑reduction standards? A8: All noise tests of our 15kV oil‑immersed transformers are conducted in strict accordance with IEC standards. Low‑noise optimized design for 15kV oil‑immersed transformers is available for municipal and residential projects. We can provide official noise‑test curves and reports to meet local acceptance standards for 15kV distribution‑network installations.

Q9: What is the service life of 15kV oil‑immersed transformers? Does it follow the 6 ℃ aging rule? A9: The design service life is 20 years for 15kV oil‑immersed distribution transformers and 30 years for 15kV oil‑immersed main‑power transformers. With standard operation and stable load, the actual service life can reach 25‑30 years (distribution type) and 35‑50 years (main‑transformer type). All our 15kV oil‑immersed transformers strictly follow the oil‑paper insulation 6 ℃ aging law.

3. Customization, Size & Transportation

Q10: Can you provide non‑standard customization for special‑project requirements of 15kV transformers? A10: Full non‑standard customization is supported for all 15kV oil‑immersed transformers. External dimension, tapping range, voltage‑grade and functional configuration of 15kV oil‑immersed transformers can be adjusted as required. Core accessories including on‑load tap‑changer, bushing, temperature controller, gas relay and pressure‑relief valve can be equipped with client‑specified brands for customized 15kV oil‑immersed‑transformer equipment.

Q11: Can you provide product weight and dimension data for 15kV transformers? Can the equipment adapt to international transportation and on‑site hoisting? A11: Detailed weight and dimension list of 15kV oil‑immersed transformers will be provided together with the formal quotation. For large‑capacity 15kV main transformers, we will evaluate hoisting load, road limit and container specification in advance, and provide professional over‑limit‑transportation solution for global 15kV‑transformer projects.

Q12: What is your oil‑filling method for shipment of 15kV transformers? A12: Small‑and‑medium‑capacity 15kV oil‑immersed distribution transformers adopt full‑oil shipment. For large‑capacity 15kV main transformers and long‑distance ocean transportation, oil‑discharged nitrogen‑filled protection is adopted to avoid winding damage during transportation. Impact recorders are equipped to monitor the whole transportation process of 15kV oil‑immersed‑transformer equipment.

4. Production & FAT Acceptance

Q13: What is your production lead time for 15kV oil‑immersed transformers? Can you guarantee delivery schedule? A13: The production cycle of 15kV oil‑immersed transformers is confirmed according to product specification and customization complexity, and clearly specified in the contract. We will issue early warning for potential delivery risks and bear corresponding responsibilities in accordance with contract terms for all customized 15kV oil‑immersed‑transformer orders.

Q14: Can clients or third‑party organizations conduct factory inspection and FAT witness for 15kV transformer units? A14: 100 % support customer and third‑party (SGS / BV) factory supervision and FAT‑test witnessing for all 15kV oil‑immersed transformers. We will coordinate production schedule and test time in advance to meet client’s inspection requirements for 15kV‑transformer overseas projects.

Q15: Are core production processes of 15kV transformers self‑made? Is raw‑material traceable? A15: Core components (iron‑core, winding, fuel tank) of 15kV oil‑immersed transformers are self‑produced and strictly controlled. No outsourcing for core production processes of 15kV oil‑immersed transformers. All key raw materials are traceable with batch‑inspection documents provided for every finished 15kV oil‑immersed transformer.

5. Business & Payment Terms

Q16: How long is the quotation validity for 15kV transformers? Will the price be adjusted due to raw‑material fluctuation? A16: Standard quotation for 15kV oil‑immersed transformers is valid for 15 days with fixed price within the validity period. The validity period can be extended to 90 days (max 180 days) according to project negotiation for bulk 15kV‑transformer orders.

Q17: What payment terms do you accept for 15kV transformer orders? Is L/C acceptable? A17: We accept flexible payment terms for 15kV oil‑immersed‑transformer orders including TT and irrevocable sight L/C. Advance‑payment ratio can be negotiated according to project scale and contract value of 15kV oil‑immersed‑transformer equipment.

Q18: Can you provide certificate‑of‑origin for tariff deduction for exported 15kV transformers? A18: We can provide CO, FORM E and other free‑trade‑agreement origin certificates for 15kV oil‑immersed transformers to help global clients enjoy preferential‑tariff policies for transformer import‑and‑export business.

6. Packaging, Logistics & Insurance

Q19: What is your export‑packaging standard for 15kV transformers? Is IPPC packaging available? A19: All exported 15kV oil‑immersed transformers adopt professional anti‑rust, moisture‑proof and shock‑proof packaging. Wooden packages are equipped with standard IPPC fumigation marks, fully complying with international‑port quarantine requirements for 15kV‑transformer shipping.

Q20: What shipping methods are available for overseas 15kV‑transformer projects? A20: We provide diversified global‑logistics solutions for 15kV oil‑immersed transformers including sea‑freight, bulk‑carrier, China‑Europe railway and truck transportation. Sea‑freight suits most international 15kV‑transformer projects; bulk‑carrier is for oversized / overweight large‑capacity 15kV transformers; railway and truck transportation serve Central‑Asia and inland‑European 15kV‑grid transformer projects.

Q21: What is the cargo‑damage claim process during transportation of 15kV transformers? A21: Clients shall collect on‑site evidence and file an insurance claim within 48 hours after the arrival of 15kV oil‑immersed‑transformer equipment. We will provide full set of shipping documents to assist insurance assessment and claim settlement for 15kV‑transformer cargo damage. Liability is subject to insurance policy, shipping remarks and official assessment report.

7. On‑site Service & Acceptance

Q22: Can you provide overseas on‑site installation, commissioning and SAT service for 15kV transformers? A22: We support global on‑site technical services for 15kV oil‑immersed transformers including installation guidance, commissioning and SAT acceptance. Service fee, travel cost and response cycle can be quoted separately for 15kV‑transformer projects. Remote‑online technical support is also available for free for all 15kV‑transformer clients.

8. Warranty, After‑sales & Quality Control

Q23: What is your product‑warranty period for 15kV oil‑immersed transformers? A23: Standard warranty period is 1 year for all 15kV oil‑immersed transformers, which can be upgraded to 2‑5 years according to project requirements. The warranty starts from the 7th working day after client’s goods‑receipt‑and‑acceptance of 15kV oil‑immersed‑transformer equipment. The warranty covers manufacturing‑quality problems of transformers, excluding improper on‑site operation, overload and external‑force damage.

Q24: Can you supply original spare‑parts after warranty expiration for 15kV units? A24: We promise lifelong supply of original‑factory spare‑parts for all sold 15kV oil‑immersed transformers. We will provide spare‑parts quotation and delivery cycle at any time to ensure long‑term stable operation of 15kV oil‑immersed‑transformer equipment.

Q25: What is your after‑sales‑response speed for 15kV‑transformer equipment faults? A25: 24‑hour online technical support worldwide for all 15kV oil‑immersed‑transformer users. For on‑site emergency maintenance, we will arrange professional engineers to arrive at the site within 7‑15 working days after receiving written client notification (negotiable according to regional conditions). Emergency‑response procedure will be activated for critical faults threatening 15kV‑transformer equipment and personal safety.

Q26: How do you control product quality for 15kV transformers? A26: We implement strict ISO full‑quality‑management system and SQA supplier‑quality‑control for all 15kV oil‑immersed‑transformer production. All production processes follow standardized operating procedures. Our factory has passed on‑site inspection and audit by third‑party authoritative organizations such as BV and SGS for many times, ensuring stable and reliable quality of every 15kV oil‑immersed transformer.

9. Factory‑Strength Advantage

Q27: Are you a professional manufacturer of 15kV‑class oil‑immersed transformers? A27: Yes. We are a professional manufacturer focusing on R&D and production of oil‑immersed power transformers including 15kV‑voltage‑range products, with nearly 30 years of manufacturing experience. Located in Qingdao, China, our factory has mature production technology, experienced senior‑engineering team and complete production & testing equipment for 15kV oil‑immersed transformers. Global customers are warmly welcome to visit our factory and audit 15kV‑transformer production lines.

Product parameters

---

Ordering instructions

---

- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer operating environment (altitude, temperature, humidity, location, etc.)
- Other customization requirements (tap switch, color, oil pillow, etc.)
- The minimum order quantity is 1 sets, worldwide delivery within 7 days
- Normal delivery period of 30 days, worldwide fast delivery
