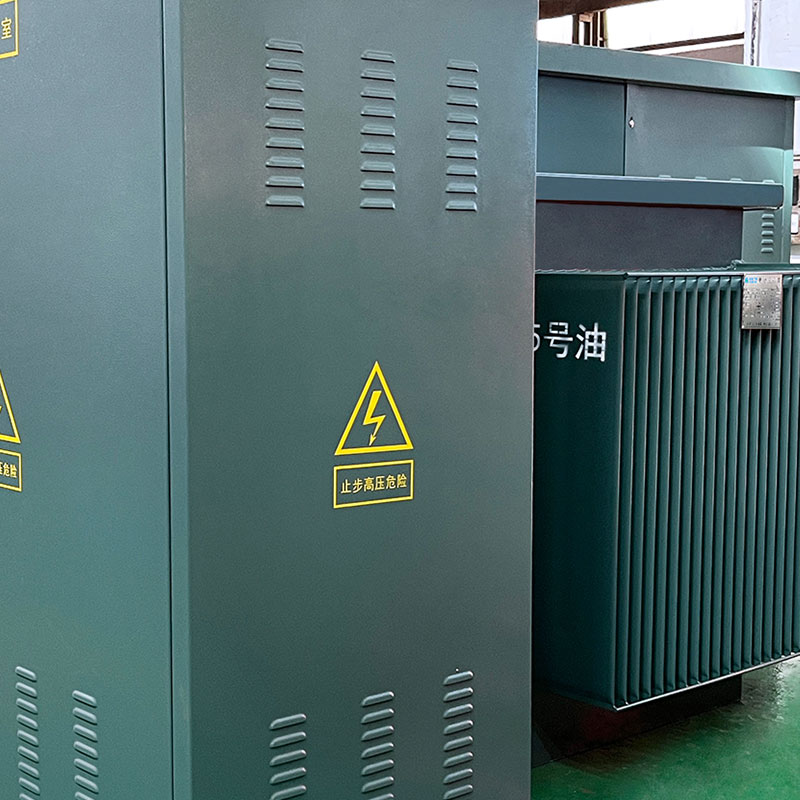

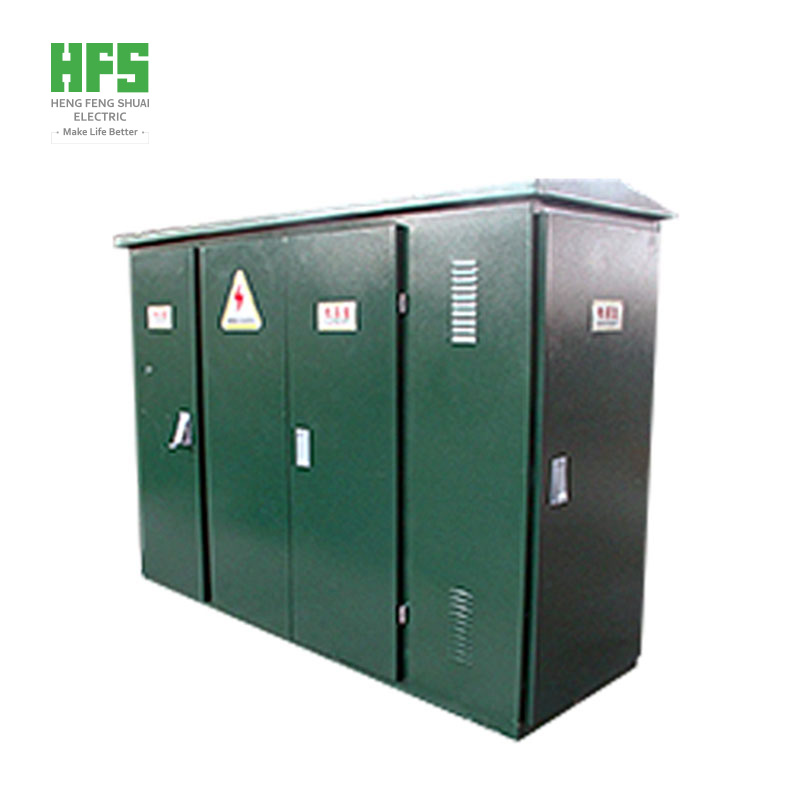

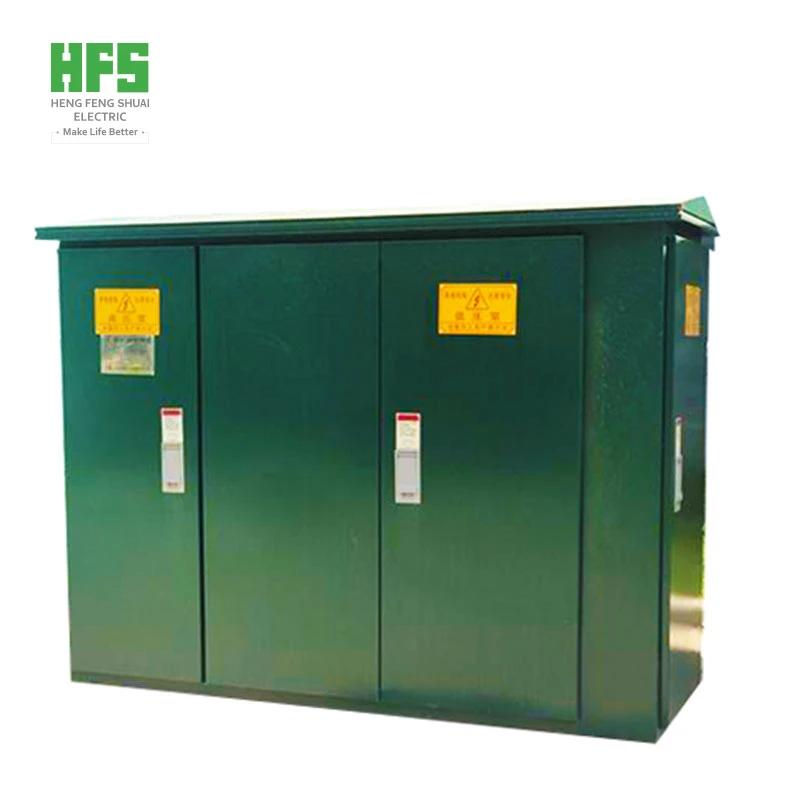

ZGS-13 Series 500KVA Pad Mounted Transformer

  • Classification: Pad Mounted Transformer
  • Number of Views: 195次
  • Date of issue: 2026-10-10 17:06:42


  • Product overview:• ZGS-13 Series 500KVA Pad Mounted Transformer is a low-cost, high reliability, intelligent urban power distribution solutions
    • 500 kva pad mounted transformer price is a transformer combining transformer, switchgear, fuse, tap switch, low-voltage distribution device and other corresponding auxiliary equipment, which can meet the user's energy metering, reactive power compensation, low-voltage shunt and other configuration requirements
    • Rated AC frequency 50Hz/60HZ, maximum operating voltage to 38.5kV
    • The equipment is widely used in industrial parks, urban residential areas, commercial centers, high-rise buildings and other places
    • Products are mainly sold to North America, East Asia, Southeast Asia, the Middle East and other countries and regions, can provide OEM/ODM services
    • Standards: ANSI C57
    , IEEE,DOE,CSA, IEC60067, GB 1094, GB17467-2010, GB/T 14048.8.1 GB 4208

Product advantages

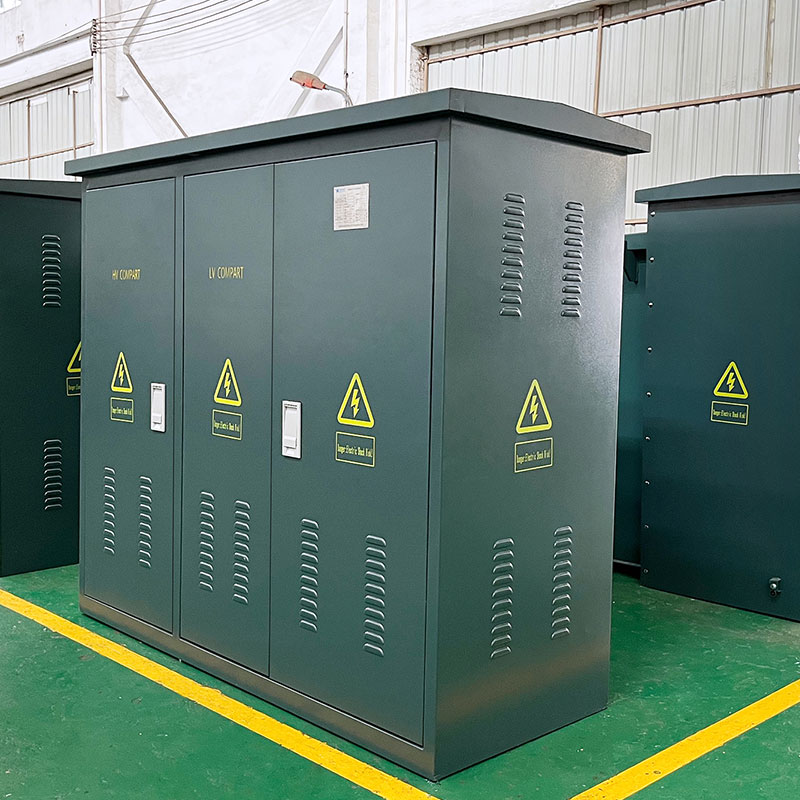

ZGS-13 Series 500KVA Pad Mounted Transformer
Why Choose Our  500KVA Three Phase Pad Mounted Transformer?
Leading Technology
• Fully enclosed & insulated structure – safe and reliable operation
• Low loss, low noise, low temperature rise
• High overload capacity & strong short-circuit withstand capability

Flexible System Integration
• Supports terminal system or ring network system
• Easy configuration switch – improves power supply reliability

Heavy-Duty Enclosure
• Material: cold-rolled, hot-dip galvanized steel
• Laser-cut CNC drilled and bent panels
• Electrostatic spray coating –30 years paint life
• Core unit: low loss oil-immersed transformer from Hengfengshuai Electric

Precision Manufacturing
• Assembly technicians: minimum 6 months training
• Secondary wiring: automatic cutting for reliable connection
• Bolt tightening: power tools with precise torque control
• Copper busbar: CNC punched and bent
• 100% pre-delivery testing


Company Advantages – Built for Global Buyers
• Certifications |ISO, CE, CB, UL |
• Quality System | SQA management – guaranteed consistency |
• Fast Response | Quick quote + electrical design support |
• Delivery | Short lead time, worldwide shipping |
• After-Sales | Complete service system |
• Customization | OEM/ODM – factory visit welcome |

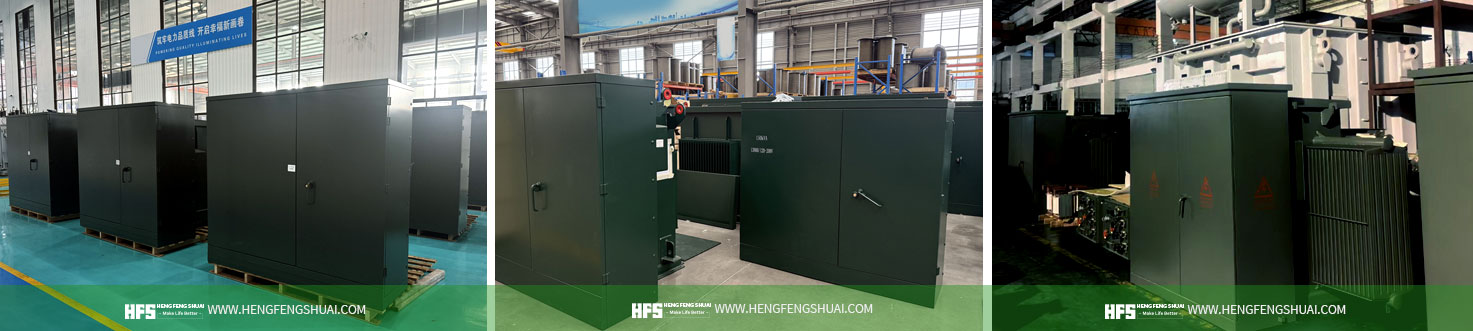

500KVA Three Phase Pad Mounted Transformer Case
500KVA Three Phase Pad Mounted Transformer Case


500KVA Three Phase Pad Mounted Transformer FAQ

1. Standard & Certification

Q1: What full set of industry standards does your 500kVA pad-mounted transformer comply with? Is it fully eligible for North American municipal grid and global commercial grid integration?
A1: Our 500kVA three-phase oil-filled pad-mounted transformers are strictly designed, type-tested and mass-produced per ANSI/IEEE C57.12 series, CSA C2.1/C227.4 and DOE 2016 energy efficiency mandatory standards, fully meeting grid access requirements for the United States, Canada and North American municipal distribution networks. The product also covers full global standard compatibility including IEC 60076, EN European power standards, GB national standards and AS/NZS Oceania standards. This 500kVA standard small-medium capacity is widely applied in urban residential communities, district commercial supporting power, suburban municipal microgrids, small light industrial parks and household/industrial distributed PV grid-tie projects. We provide region-targeted standard verification documents and complete official certification packages for local grid inspection, municipal project acceptance, engineering filing and third-party audit.
Q2: Can you provide official DOE energy efficiency certificates and full third-party test reports? Do you support witnessed factory inspection and field grid acceptance?
A2: We supply authentic DOE 2016 energy efficiency certification for small-medium capacity pad-mounted transformers, together with CNAS-recognized full type test reports and authoritative third-party test reports (SGS/BV/TUV). The test scope comprehensively covers no-load loss, load loss, impedance voltage, insulation resistance, lightning impulse withstand, short-circuit withstand capability, mechanical structural stability and full safety protection indicators. For municipal community grid upgrading, residential power renovation, small commercial complex power matching and light industrial power supply projects, we fully support on-site witnessed FAT testing and on-grid acceptance inspection. All data strictly meets North American and international 500kVA distribution transformer access thresholds and grid operation specifications.
Q3: What complete technical documents are included in formal delivery? Are multi-language engineering operation manuals available for overseas construction teams?
A3: Each 500kVA pad-mounted transformer is delivered with a full set of English-version municipal and industrial-grade technical files: official equipment nameplate parameter sheet, overall pad installation layout drawing, foundation embedding and pre-construction drawing, complete high/low voltage wiring schematic diagram, full-item FAT factory test report, dedicated operation and maintenance manual for outdoor pad-mounted transformers, official parameter specification datasheet and detailed spare parts list. Customized multi-language manuals (Spanish, Portuguese, French, Arabic) are available upon request. All manuals are optimized for overseas municipal construction, commercial operation management and on-site engineering guidance, with standardized operating procedures and targeted maintenance guidelines for 500kVA low-medium load operating conditions.

2. Technical Performance & Structural Features

Q4: What winding material options are available for the 500kVA model? Can the winding system sustain long-term outdoor continuous operation and seasonal load fluctuation?
A4: This 500kVA pad-mounted transformer provides two optional industrial-grade winding configurations: high-purity oxygen-free copper winding and high-temperature reinforced aluminum winding, adapting to long-term outdoor continuous power distribution and mild seasonal peak load fluctuation scenarios. All winding conductivity, temperature resistance and structural parameters are clearly defined in technical agreements and formal contracts, with complete raw material inspection certificates and full production traceability records. Adopting capacity-matched optimized winding layout, the equipment effectively reduces operational loss and improves overall power supply efficiency. Equipped with F/H-class composite high-temperature insulation system and reinforced insulation structure, it stably withstands outdoor extreme temperature differences and long-term stable low-medium load operation, ensuring reliable and energy-saving power output for residential, municipal and light industrial scenarios.
Q5: Are voltage grades and core electrical parameters customizable? How do you control product quality and handle non-conforming products?
A5: All core electrical parameters support full personalized customization to adapt to global diversified grid environments. Common primary voltage covers mainstream global specifications such as 11kV, 12.47kV, 13.2kV and 13.8kV; secondary voltage supports 208Y/120V, 277/480V, 400V, 480V and other civil and commercial mainstream voltages. No-load loss, full-load loss and impedance values can be adjusted in accordance with local grid energy-saving standards and industrial power supply specifications. All 500kVA transformers undergo 100% full-item strict factory testing before delivery. Any unqualified products found during production or testing will be fully reworked or replaced free of charge; defective products are strictly prohibited from delivery to guarantee on-site power supply safety and stability.
Q6: Can the 500kVA pad-mounted transformer adapt to harsh outdoor environments including coastal salt spray, high temperature, high humidity and urban vibration zones?
A6: Designed with fully sealed outdoor-grade structure, this 500kVA transformer features excellent comprehensive environmental adaptability with targeted anti-harsh working condition solutions. For coastal and industrial polluted areas, it adopts C5M high-grade anti-corrosion electrostatic spraying and internal anti-rust treatment to resist salt spray corrosion and industrial flue gas erosion. For tropical and subtropical high-temperature and high-humidity regions, the heat dissipation system and insulation configuration are upgraded to enhance thermal stability under continuous high-temperature operation. The fully sealed integral structure realizes comprehensive waterproof, dustproof and moistureproof performance. For urban seismic zones and road vibration-prone areas, reinforced thickened base and multi-point shock absorption structure are equipped to resist mechanical impact and structural vibration. All designs focus on long-term unattended outdoor stable operation for community and municipal outdoor power distribution.
Q7: Is the 500kVA model suitable for distributed PV grid-tie, urban centralized power supply and commercial building grid connection? What is its harmonic suppression capability?
A7: The 500kVA pad-mounted transformer is specially optimized for small-scale distributed photovoltaic grid connection, urban community centralized power supply, residential quarter comprehensive power supply and small commercial and light industrial plant grid-tie scenarios. The upgraded core magnetic circuit and anti-harmonic winding structure can effectively suppress high-order harmonic interference generated by photovoltaic inverters, household electrical equipment and small commercial frequency conversion loads, reducing harmonic heating, voltage fluctuation and waveform distortion. It perfectly adapts to intermittent power output of small distributed energy systems and gentle peak-valley load changes of municipal residential power grids, ensuring high-quality, low-distortion and stable grid-tie operation and continuous power supply.
Q8: What is the standard noise level of the 500kVA transformer? Is ultra-low-noise configuration available for residential and scenic business areas?
A8: Adopting core shock absorption fixation, silent structural optimization and overall noise reduction design, the standard operating noise of the 500kVA pad-mounted transformer is ≤50dB under IEC standard test conditions, fully meeting residential area environmental protection requirements. For noise-sensitive areas including urban core residential communities, school districts, municipal parks and scenic commercial belts, we provide a customized ultra-low-noise upgrade version (≤46dB), equipped with integral damping base, silent isolation structure and external noise reduction baffles. Official professional noise test certificates can be provided to meet environmental assessment and municipal engineering acceptance requirements.
Q9: Does the 500kVA pad-mounted transformer have reliable lightning protection and short-circuit resistance for outdoor grid operation?
A9: This model is equipped with standard high-grade outdoor lightning impulse protection system and built-in high-sensitivity overvoltage protection devices, which can effectively resist direct lightning strike impact and grid switching overvoltage in open outdoor environments. The reinforced anti-short-circuit winding and core structure can withstand instantaneous short-circuit faults caused by line aging, grid load fluctuation and equipment abnormalities. It fully meets municipal residential and commercial grid safety operation standards, and complete lightning impulse and short-circuit resistance test reports can be provided for project safety assessment and acceptance filing.
Q10: What is the design service life of the 500kVA transformer? How does the insulation system guarantee long-term outdoor ageing resistance?
A10: The standard design service life of this outdoor 500kVA pad-mounted transformer is 25 years, perfectly matching the long-term fixed power supply cycle of urban residential communities and small commercial facilities. It adopts high-stability oil-paper composite insulation system, strictly following the 6℃ insulation ageing attenuation rule, and reserves sufficient temperature resistance and ageing resistance margin for long-term stable low-medium load operation and outdoor extreme temperature cycling. With regular professional oil quality maintenance, sealing inspection and routine debugging, the actual service life can reach 30 years, fully adapting to long-cycle unattended outdoor residential and municipal power distribution operation.
Q11: What are your core manufacturing advantages for 500kVA small-medium capacity pad-mounted transformers?
A11: We are a professional manufacturer focusing on R&D and customized production of outdoor pad-mounted transformers, with rich overseas project experience in North America, Europe, Southeast Asia and Middle East residential and municipal power projects. All core processes including core stamping, winding fabrication, insulation wrapping, sealing assembly and full-performance testing are independently completed in-house with zero outsourcing. Our 500kVA transformers feature ultra-compact integrated structure, low loss, ultra-low noise, strong environmental adaptability and high cost performance, widely used in urban community grid renovation, residential cluster power supply, small commercial supporting power and small-scale PV grid-tie projects. Factory audits and third-party authoritative inspections are fully supported.

3. Customization, Dimension & On-site Installation

Q12: Can you provide non-standard customized 500kVA pad-mounted transformers for special municipal and residential scenarios?
A12: Full non-standard personalized customization is available for special working conditions and project requirements. Customizable items include regional exclusive voltage parameter matching, landscape color spraying matching urban community construction style, anti-theft reinforced door lock structure, IP protection grade upgrade, customized foundation size and installation spacing, extreme high/low temperature adaptive upgrade and load performance optimization. Key supporting accessories can adopt customer-specified international brand products. All customized technical indicators will be confirmed in formal technical agreements to fully comply with on-site construction and residential power supply standards.
Q13: Can you provide foundation dimension drawings and gross/net weight data? Is the equipment convenient for hoisting and cross-border transportation?
A13: Complete technical documents including overall dimension drawings, foundation embedding construction drawings, installation spacing specifications and detailed gross/net weight data will be delivered together with the official quotation. The integrated 500kVA pad-mounted transformer features ultra-compact layout and lightweight body, without ultra-wide or overweight transportation restrictions. It supports integral one-time hoisting and positioning installation, greatly shortening residential and municipal project construction cycle. The equipment adapts to sea, railway and road cross-border transportation without special large-scale transportation approval, ensuring efficient global project delivery.
Q14: What export packaging standards are adopted for 500kVA pad-mounted transformers for overseas transportation?
A14: We adopt graded professional export packaging for small-medium capacity power equipment. For short-distance cross-border transportation, integral full oil-sealed packaging is applied for direct on-site placement and rapid grid connection without secondary assembly. For long-distance transoceanic transportation, we adopt oil-drained nitrogen-filled anti-oxidation protection plus reinforced shockproof wooden box packaging, equipped with vibration impact monitoring devices. Multi-layer rust-proof, moisture-proof and weather-resistant treatment effectively protects the sealed structure and internal precision components, avoiding collision damage, moisture and corrosion during long-distance ocean transportation.

4. Production & FAT Acceptance

Q15: What is the production cycle of standard and customized 500kVA transformers? How to guarantee on-time delivery for key municipal and residential projects?
A15: The production cycle of standard 500kVA pad-mounted transformers is 12–20 working days. For customized models with special environmental adaptation, appearance optimization and parameter adjustment, as well as batch orders, the cycle is 20–30 working days. The formal contract clearly specifies the delivery schedule. During production, we regularly update production progress photos, process inspection records and intermediate test reports. For municipal community grid projects and residential supporting projects, we implement priority production scheduling to ensure on-time delivery matching site construction progress.
Q16: Do you support customer and third-party witnessed FAT factory acceptance?
A16: We fully support on-site factory inspection and full FAT test witnessing by customers and authoritative third-party institutions (SGS, BV, TUV). We actively coordinate production and test schedules in advance according to customer needs, providing complete production process records, raw material qualification certificates and full-item performance test data. The entire acceptance process is transparent, standardized and compliant with international project bidding and engineering acceptance specifications.
Q17: Are core components traceable? Are key production processes outsourced?
A17: All core components (silicon steel core, winding coil, insulating oil, sealed bushing, overvoltage protection device, temperature control system) have complete batch traceability records and official qualification certificates. All key production procedures are independently completed in our factory with zero outsourcing, effectively avoiding quality risks from external processing and ensuring stable and consistent product quality and long-term operational reliability.

5. Quotation, Payment & Customs Clearance

Q18: What is the quotation validity period? Will the price fluctuate with raw material market changes?
A18: The standard quotation is valid for 15 working days with fixed unit price. For batch municipal engineering orders and long-term strategic cooperative clients, the quotation validity can be extended to 120 days with locked price. After expiration, the quotation will be updated in real time according to the market fluctuation of core raw materials such as copper and silicon steel to ensure fair and reasonable pricing.
Q19: What international payment terms are supported? Is L/C acceptable for overseas engineering projects?
A19: We support flexible international payment methods including TT telegraphic transfer and irrevocable sight L/C, fully adapting to overseas engineering procurement standards. Advance payment ratio and installment terms can be flexibly negotiated according to order quantity and project attributes. All commercial terms are clearly stated in formal export contracts to protect the legitimate rights and interests of both parties.
Q20: Can you provide preferential certificates of origin to help customers reduce tariff costs?
A20: We provide complete standardized customs clearance documents, including CO general certificate of origin, FORM E China-ASEAN certificate of origin and FORM A generalized preferential certificate of origin. These official documents help customers apply for destination country tariff reduction or exemption, effectively reducing project procurement and customs clearance costs and ensuring smooth cross-border customs clearance.

6. Packaging, Logistics & Insurance

Q21: Does the export packaging meet international sea freight standards for long-distance overseas transportation?
A21: All export packaging adopts international export-grade multi-layer protection including anti-rust, moisture-proof, shockproof and weather-resistant treatment, specially customized for small-medium capacity outdoor electrical equipment. The packaging wooden boxes have complete IPPC fumigation marks, fully meeting international plant quarantine and ocean freight standards. The integral sealed structure resists harsh marine climate such as high humidity and salt fog, ensuring zero damage to equipment performance and structure during transoceanic transportation.
Q22: What diversified logistics solutions are available for 500kVA pad-mounted transformers?
A22: Based on the ultra-compact and lightweight characteristics of 500kVA integrated transformers, we provide multiple efficient logistics solutions: sea freight for bulk global orders with low comprehensive cost; China-Europe railway transportation for Eurasian projects with short cycle; truck transportation for neighboring short-distance cross-border projects. The overall logistics cost is low and the delivery cycle is stable without complex approval procedures.
Q23: What is the cargo damage claim process during transportation?
A23: All exported 500kVA transformers are fully covered by professional transportation insurance. If packaging damage or equipment performance failure caused by transportation occurs after arrival, customers only need to collect on-site photos, videos and waybill evidence within 48 hours and submit a claim application. We provide full contract documents, packing lists and test reports to assist insurance assessment and claim settlement, with the final result subject to insurance policy terms and third-party professional evaluation.

7. SAT & On-site Commissioning Service

Q24: Do you provide overseas on-site installation guidance and project commissioning services?
A24: We provide global one-stop full-cycle on-site technical services, including foundation installation guidance, equipment positioning calibration, high/low voltage wiring debugging, grid-tie performance testing, load trial operation and SAT on-site acceptance. Engineering services adopt customized schemes and independent quotation according to project scale and region. Meanwhile, free 24/7 remote technical support is provided to quickly solve on-site installation and operation faults and ensure rapid grid connection and power transmission of key residential and municipal projects.

8. Warranty & After-sales Service

Q25: What is the warranty period and coverage scope of the 500kVA pad-mounted transformer?
A25: The standard warranty period is 1 year from the date of qualified on-site acceptance. For municipal grid key projects and batch customized orders, we provide free 2–3 years extended warranty. The warranty covers all manufacturing defects and original accessory quality faults. Failures caused by improper on-site operation, artificial damage, unauthorized modification and long-term overload operation are excluded from the warranty scope.
Q26: Can you supply original genuine spare parts after warranty expiration?
A26: We provide lifelong supply of original genuine spare parts for all sold 500kVA transformers, including sealing accessories, protection devices, temperature control components, insulating oil and other wearing parts, ensuring long-term stable and safe operation of equipment and continuous technical support for project operation and maintenance.
Q27: What is the response speed of after-sales and technical support?
A27: We provide 24/7 all-weather online technical consultation and after-sales support, responding to conventional faults and technical inquiries within 1 hour. Professional certified electrical engineers can be arranged for on-site troubleshooting within 7–12 working days according to regional locations. For sudden power supply faults of key projects, we activate an emergency response mechanism to minimize outage losses.
Q28: What is your factory quality control system for pad-mounted transformers?
A28: We implement full-process ISO quality management system, targeting the outdoor unattended low-medium load operating characteristics of 500kVA transformers. Strict quality control is carried out on core indicators including sealing performance, anti-corrosion capability, loss parameters, insulation stability and short-circuit resistance. Every unit passes full-item factory tests (insulation, loss, noise, sealing, load operation) before delivery. Third-party factory audits and quality inspections by SGS, BV and other institutions are fully supported to meet global municipal, residential and commercial power distribution operation standards.



Product parameters

Capacity: 500KVA Pad Mounted Transformer
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 34.5kV,35kV;
Maximum operating voltage:38.5kV

Pad Mounted Transformer Technical Specification
RatedPower(KVA) H.V(KV) L.V(V) Loss(W) Dimension(CM) Weight(KG)
No-loadLoss (W) On-loadLoss (W) W D H Oil   Weight Total  Weight
75KVA 34.5KV
19.92KV
13.8KV
13.2KV
7.62KV
12.47KV
7.2KV
240V480V4
80Y/277V
600Y/347V
180 1250 1390 910 1430 120 645
112.5KVA 200 1500 1420 920 1430 138 729
150KVA 280 2200 1510 980 1530 201 989
225KVA 400 3050 1600 1000 1660 230 1195
300KVA 480 3650 1660 1080 1680 260 1415
500KVA 680 5100 1810 1160 1790 325 1905
750KVA 980 7500 2030 1300 2030 535 2755
1000KVA 1150 10300 1651 1549 1854 650 3235
1500KVA 1640 14500 2210 1470 2150 748 5835
2000KVA 2160 20645 2380 1600 2220 950 6430
2500KVA 2680 27786 2480 1650 2330 1020 8865

STANDARD COMPONENTS
Connections and neutral configurations
•     Delta - Wye: Low voltage neutral shall be a fully insulated X0 bushing with removable ground strap.
•     Grounded Wye-Wye: High voltage neutral shall be internally tied to the low voltage neutral and brought out as the H0X0 bushing in the secondary compartment with a removable ground strap.
•     Delta-Delta: Transformer shall be provided without a neutral bushing.
•     Wye-Wye: High voltage neutral shall be brought out as the H0 bushing in the primary compartment and the low voltage neutral shall be brought as the X0- bushing in the secondary compartment.
•     Wye-Delta: High voltage neutral shall be brought out as the H0 bushing in the primary compartment. No ground strap shall be provided (line to line rated fusing is required).
High and low voltage bushings
•     200 A bushing wells (15, 25, and 35 kV)
•     200 A, 35 kV Large Interface
•     600 A (15, 25, and 35 kV) Integral bushings (dead-front)
Electrical-grade wet-process porcelain bushings(live-front)

Tank/cabinet features
•    Bolted cover for tank access (45-2500 kVA)
•    Welded cover with hand hole (>2500 kVA)
•    Three-point latching door for security
•    Removable sill for easy installation
•    Lifting lugs (4)
•    Stainless steel cabinet hinges and mounting studs
•    Steel divider between HV and LV compartment
•    20" Deep cabinet (45-1000 kVA)
•    24" Deep cabinet (1500-7500 kVA)
•    30" Deep cabinet (34.5/19.92 kV)
•    Pentahead captive bolt
•    Stainless steel 1-hole ground pads (45-500 kVA)
•    Stainless steel 2-hole ground pads (750-10,000 kVA)
•    Parking Stands (dead-front)
Valves/plugs
•    One-inch upper filling plug
•    One-inch drain plug (45-500 kVA)
•    One-inch combination drain valve with sampling device in low voltage compartment (750-10,000 kVA)
•    Automatic pressure relief valve
Nameplate
•    Laser-scribed anodized aluminum nameplate

Ordering instructions
When ordering, the customer should provide the following information:
• Main loop scheme diagram and secondary loop system diagram.
• Electrical schematic diagram of auxiliary circuit and wiring terminal layout
• Equipment layout drawing, combination drawing, floor plan drawing.
• Brand, model, specification and quantity of main electrical components of the equipment.
• Incoming and outgoing lines and cable specifications.
• Equipment surface color (RAL chromatography).
• Other special requirements can be negotiated with Hengfengshuai Electric
