1. Standard & Certification
Q1: What industry standards do your 1250kVA pad-mounted transformers comply with? Are they suitable for North American and global municipal grid access?
A1: Our 1250kVA three-phase pad-mounted transformers are fully designed, tested and manufactured in strict accordance with ANSI/IEEE C57.12 series core standards, CSA C227.4 safety specifications and DOE 2016 high-capacity power transformer energy efficiency standards, meeting mandatory access requirements for North American municipal main distribution grids. Meanwhile, the product fully conforms to IEC 60076 international power transformer standards, GB national standards, EN European standards and AS/NZS Australian and New Zealand standards, supporting global market grid integration. Tailored for large-scale urban power distribution, industrial park power supply and municipal key engineering scenarios, this model complies with high-level public safety power distribution codes. We can provide targeted standard matching verification according to project regional requirements and deliver complete official certification files for local grid review, municipal engineering acceptance and project filing.
Q2: Can you provide DOE efficiency certification and third-party full test reports? Is field witnessed inspection supported?
A2: We supply official DOE energy efficiency certification for high-capacity pad-mounted transformers, CNAS-accredited full type test reports and authoritative third-party test reports covering load loss, no-load loss, insulation resistance, lightning impulse withstand, short-circuit resistance, mechanical structural strength and full safety protection indicators. For urban municipal grid upgrading projects, large industrial park supporting power projects, commercial complex power supply projects and residential cluster power distribution projects, we support on-site witnessed factory testing and on-site grid acceptance inspection. All test data strictly meets the industry access thresholds for 1250kVA high-capacity outdoor distribution transformers, fully complying with power bureau grid access and operation management standards.
Q3: What technical documents are included in delivery? Can you provide multi-language municipal engineering manuals?
A3: The standard delivery package contains complete English-version municipal and industrial grade technical documents: equipment formal nameplate, overall pad installation layout drawing, foundation embedding and pre-construction drawing, high and low voltage complete wiring schematic, full-item FAT factory test report, professional operation and maintenance manual for large outdoor pad-mounted transformers, equipment parameter specification sheet and complete spare parts list. We support customized multi-language technical manuals including Spanish, Portuguese, Arabic and French. The manuals are optimized for large-scale municipal construction, industrial operation management and overseas engineering team application, with standardized operation processes and detailed maintenance guidelines, more targeted for high-capacity power equipment operation compared with small and medium-sized transformers.
2. Technical Performance & Structural Features
Q4: What winding options are available for 1250kVA pad-mounted transformers? Can material performance be guaranteed for long-term outdoor high-load operation?
A4: This 1250kVA high-capacity model provides two mainstream winding configurations: high-purity oxygen-free copper windings and high-temperature resistant reinforced aluminum windings, which are specially adapted for long-term high-load outdoor power distribution scenarios. All winding material parameters, conductivity and temperature resistance indicators can be clearly specified in technical agreements and formal contracts, with complete raw material test certificates and full production traceability records. The optimized large-capacity winding structural design effectively reduces no-load and load loss, improving equipment operation efficiency. Matched with H-class high-temperature insulation system and reinforced insulation structure, it can withstand long-term high-load operation and extreme outdoor temperature changes, ensuring stable and continuous power supply for municipal and industrial high-power load scenarios.
Q5: Can voltage grade and electrical parameters be customized for municipal and industrial scenarios? How to handle unqualified products?
A5: All core electrical parameters support personalized customization to adapt to diverse application scenarios. Common primary voltage grades cover 11kV, 13.2kV, 13.8kV and other mainstream global grid standards; secondary voltage supports 400V, 480V, 208Y/120V, matching industrial production, commercial complex and urban residential centralized power supply demands. No-load loss, full-load loss and impedance voltage values can be adjusted according to local municipal grid energy-saving standards and industrial power supply specifications. All 1250kVA transformers undergo 100% full-item strict factory testing before delivery. Any unqualified products detected during production or testing will be fully reworked or replaced free of charge, and defective products are strictly prohibited from delivery to ensure on-site high-load power supply stability and safety.
Q6: Can the 1250kVA pad-mounted transformer adapt to outdoor complex environments such as coastal salt spray, high temperature, high humidity and urban seismic zones?
A6: As a fully sealed outdoor high-capacity power distribution device, this transformer has excellent comprehensive environmental adaptability, and we provide targeted environmental optimization solutions for extreme working conditions. For coastal areas and industrial polluted areas, C5M high-grade anti-corrosion electrostatic spraying and internal anti-rust treatment are adopted to resist salt spray corrosion and industrial flue gas erosion. For tropical and subtropical high-temperature regions, the insulation system and heat dissipation structure are upgraded to enhance high-temperature operation stability. The overall fully sealed waterproof and dustproof structure effectively blocks rainwater, dust and moisture intrusion. For urban seismic zones and road vibration-prone areas, the integral reinforced thickened base and multi-point shock-absorbing structure are equipped to resist structural vibration and impact. All designs focus on long-term unattended outdoor high-load stable operation.
Q7: Is this transformer applicable for large distributed photovoltaics, urban centralized power supply and industrial building grid-tie? How about harmonic resistance?
A7: The 1250kVA pad-mounted transformer is specially optimized for large-scale distributed photovoltaic grid connection, urban municipal centralized power supply, industrial park full-scene power supply and large commercial building grid-tie scenarios. The upgraded core magnetic circuit optimization design and anti-harmonic winding structure can effectively suppress high-order harmonic interference generated by large photovoltaic power generation systems, industrial frequency conversion equipment and high-power electrical loads, significantly reduce harmonic heating, voltage fluctuation and waveform distortion. It can perfectly adapt to the intermittent power output of large distributed energy stations and complex peak load fluctuations of industrial and municipal loads, ensuring high-quality and stable grid-tie operation and continuous power supply.
Q8: What is the standard noise level? Is low-noise configuration available for urban residential areas and scenic commercial zones?
A8: Adopting large-capacity silent optimized structure, core shock absorption fixation and overall noise reduction design, the standard operating noise of the transformer is ≤55dB under IEC standard test conditions, which is significantly lower than traditional industrial high-power transformers of the same capacity. For noise-sensitive scenarios such as urban core residential areas, municipal parks, school districts and scenic commercial zones, we provide customized ultra-low-noise upgraded version (≤50dB), equipped with integral damping base, silent isolation structure and external noise reduction baffles. Official professional noise test certificates can be provided to meet urban environmental assessment and municipal engineering acceptance standards.
Q9: Does the equipment have reliable lightning protection and short-circuit resistance for outdoor urban grid high-load operation?
A9: The 1250kVA pad-mounted transformer is equipped with standard high-grade outdoor lightning impulse protection system and built-in high-sensitivity overvoltage protection devices, which can effectively resist lightning strike impact and grid switching overvoltage in open outdoor environments. The reinforced anti-short-circuit winding and core structure can withstand instantaneous short-circuit faults caused by urban line aging, grid load surge and equipment abnormality. It fully meets the high-load safety operation standards of municipal main power grids, and can provide complete lightning impulse test and short-circuit resistance test reports to support project safety assessment and acceptance.
Q10: What is the design service life? How does the insulation system ensure long-term high-load outdoor operation?
A10: The standard design service life of this 1250kVA outdoor pad-mounted transformer is 25 years, which is suitable for long-term municipal and industrial fixed power supply scenarios. It adopts high-stability premium oil-paper composite insulation system, strictly follows the 6℃ insulation ageing attenuation rule, and reserves sufficient temperature resistance and ageing resistance margin for long-term high-load operation and outdoor extreme temperature changes. With regular professional oil quality maintenance, sealing inspection and routine equipment debugging, the actual service life can reach 30 years, fully adapting to unattended, long-cycle and high-intensity outdoor power distribution operation requirements.
Q11: What are your core advantages as a professional manufacturer of high-capacity pad-mounted transformers?
A11: We are a professional manufacturer specializing in R&D, production and customization of high-capacity outdoor pad-mounted distribution transformers, with rich export engineering experience in North America, Europe, Southeast Asia, Middle East and other global municipal and industrial power projects. All core production processes including core stamping, winding winding, insulation wrapping, sealing assembly and overall performance testing are independently completed in our factory without outsourcing, ensuring stable and consistent product quality. Our 1250kVA transformers feature compact integrated structure, strong overload capacity, low loss, low noise and excellent environmental adaptability, widely applied in urban grid upgrading, industrial parks, large commercial complexes and centralized photovoltaic power supply projects. We fully support customer factory audits and third-party authoritative inspection and certification.
3. Customization, Dimension & On-site Installation
Q12: Can you customize non-standard 1250kVA pad-mounted transformers for special municipal and industrial scenarios?
A12: We support full non-standard personalized customization for special scenario demands. Customizable items include regional exclusive voltage parameter matching, urban landscape coordinated color spraying, anti-theft and anti-damage reinforced door lock structure, IP protection grade upgrade, customized foundation size and installation spacing, extreme low-temperature/high-temperature adaptive upgrade, and overload capacity optimization. Key supporting accessories can be equipped with customer designated international brand products. All customized technical requirements will be sorted out and confirmed in formal technical agreement documents to ensure full compliance with on-site municipal construction and industrial power supply standards.
Q13: Can you provide foundation dimension drawings and overall weight data? Is the equipment convenient for on-site hoisting and cross-border transportation?
A13: We will provide complete and accurate technical data including overall dimension drawings, foundation embedding construction drawings, on-site installation spacing specifications, net weight and gross weight detailed data together with the formal quotation. Compared with traditional split high-capacity industrial transformers, this integrated 1250kVA pad-mounted transformer has a compact overall structure, moderate volume and weight, no ultra-wide and ultra-heavy transportation limitations. It supports integral integral hoisting and one-time on-site positioning installation, greatly shortening construction cycles. The equipment is fully adaptable to cross-border sea freight, railway transportation and road transportation, with no need for special super-large equipment transportation risk assessment, convenient for global project delivery.
Q14: What is the export packaging mode for outdoor 1250kVA pad-mounted transformers?
A14: We adopt graded professional export packaging suitable for high-capacity power equipment. For short-distance cross-border transportation and nearby project delivery, full oil-sealed integral packaging is adopted, which can be directly placed on site and put into power transmission quickly without secondary assembly. For long-distance ocean transportation and transcontinental projects, we adopt oil-drained nitrogen-filled anti-oxidation protection + reinforced shockproof wooden box packaging, equipped with professional impact recorders and vibration monitoring devices. The packaging undergoes multi-layer rust-proof, moisture-proof and weather-resistant treatment, which can effectively protect the equipment sealing structure and internal precision components, avoiding collision, moisture and corrosion damage during long-term ocean transportation.
4. Production & FAT Acceptance
Q15: What is the production cycle of 1250kVA pad-mounted transformers? How to ensure on-time delivery for municipal and industrial key projects?
A15: The production cycle of standard 1250kVA pad-mounted transformers is 15–22 working days. For customized models with special environmental adaptation, landscape appearance optimization and special parameter adjustment, as well as batch project orders, the production cycle is 22–35 working days. The detailed delivery schedule is clearly stipulated in the formal contract. During the production period, we regularly update production progress photos, process inspection records and intermediate test reports. For municipal key grid projects and industrial park supporting projects, we implement production priority scheduling mechanism to ensure on-time delivery and fully meet the on-site construction progress requirements.
Q16: Can customers or third-party institutions witness factory FAT acceptance?
A16: We fully support customer on-site factory inspection and full FAT test witnessing, and recognize authoritative third-party inspection institutions such as SGS, BV and TUV for factory verification and certification. We will actively coordinate production and test schedules in advance according to customer demands, provide complete production process records, raw material qualification certificates, full-item performance test data and compliance documents, ensuring the entire factory acceptance process is transparent, standardized and compliant with municipal project bidding specifications and industrial engineering acceptance standards.
Q17: Are core components traceable? Are key processes outsourced?
A17: All core components of the 1250kVA transformer (high-precision silicon steel core, high-purity winding, special insulating oil, sealed bushing, overvoltage protection device, temperature control system) have complete batch production traceability records and official qualification certificates. All key production processes including core processing, winding fabrication, insulation treatment, sealing assembly, overall debugging and full performance testing are independently completed in our factory with zero outsourcing. This strictly controls product quality consistency, avoids quality risks caused by outsourcing links, and ensures long-term stable high-load operation performance of the equipment.
5. Quotation, Payment & Customs Clearance
Q18: How long is the quotation valid? Will the price fluctuate with raw materials?
A18: The standard quotation validity period is 15 working days with fixed unit price. For batch municipal engineering orders, industrial park overall supporting projects and long-term strategic cooperative customers, we can extend the quotation validity period to 120 days. The price is kept stable within the valid period. After the quotation expires, we will update the price in real time according to the latest market fluctuation of copper, silicon steel and other core raw materials to ensure quotation fairness and rationality.
Q19: What payment terms are supported? Is L/C payment acceptable for engineering projects?
A19: We support flexible and diversified international payment methods, including TT telegraphic transfer and irrevocable sight L/C, which is fully applicable to overseas engineering project procurement standards. The advance payment ratio, installment cycle and payment terms can be flexibly negotiated according to order quantity, project nature and cooperative cycle. All commercial payment terms will be clearly written into formal export contracts to protect the legitimate rights and interests of both parties, adapting to the payment habits of overseas engineering companies and government municipal procurement projects.
Q20: Can you provide preferential certificate of origin for tariff exemption?
A20: We can provide complete and standardized customs clearance documents, including CO general certificate of origin, FORM E China-ASEAN certificate of origin, FORM A generalized preferential certificate of origin and other preferential certification documents. These certificates can help customers successfully apply for tariff reduction or exemption in the destination country, effectively reduce project procurement and customs clearance costs, and ensure efficient and smooth cross-border customs clearance of large municipal power equipment.
6. Packaging, Logistics & Insurance
Q21: Does the export packaging meet international sea freight standards? Is it suitable for long-term overseas transportation?
A21: All export packaging of 1250kVA pad-mounted transformers adopts international export-grade special treatment, including multi-layer anti-rust, moisture-proof, shockproof, sun-proof and weather-resistant protection, tailored for large outdoor electrical equipment. The packaging wooden boxes have formal IPPC fumigation marks, fully meeting international plant quarantine and ocean freight packaging standards. The integral sealed packaging structure can resist harsh marine climate such as high humidity, salt fog and strong wind, ensuring zero damage to equipment structure and internal performance during long-distance transoceanic transportation.
Q22: What logistics solutions are available for 1250kVA pad-mounted transformers?
A22: Combining the structural characteristics of integrated large-capacity pad-mounted transformers, we provide diversified and efficient targeted logistics solutions. Global bulk orders adopt sea freight with low comprehensive cost and large loading capacity; Eurasian regional municipal and industrial projects adopt China-Europe railway transportation with short cycle and high efficiency; neighboring countries and short-distance cross-border projects adopt dedicated truck transportation for fast delivery. Compared with split large industrial transformers, our integrated products have lower logistics difficulty, lower transportation cost and more controllable delivery cycle.
Q23: What is the cargo damage claim process during transportation?
A23: All exported 1250kVA transformers are fully covered by professional transportation insurance. After the goods arrive at the port or site, if packaging damage, equipment deformation or performance failure caused by transportation factors is found, customers only need to collect on-site photos, videos, waybills and other valid evidence within 48 hours and submit a formal claim application. We will provide a full set of contract documents, packing lists, factory test reports and supporting materials to assist customers in completing insurance assessment and claim settlement, with the final result subject to the insurance policy terms and third-party professional assessment.
7. SAT & On-site Commissioning Service
Q24: Do you provide overseas on-site installation guidance and municipal project commissioning services?
A24: We provide global one-stop full-cycle on-site technical services for large pad-mounted transformers, including on-site foundation installation guidance, equipment positioning calibration, high and low voltage wiring debugging, grid-tie performance testing, load trial operation and project SAT on-site acceptance. The engineering technical service adopts independent quotation and customized service scheme according to project scale and regional location. At the same time, we provide free 24/7 all-weather remote technical support, quickly responding to and solving on-site installation, debugging and operation faults, ensuring rapid grid connection and power transmission of municipal and industrial key projects.
8. Warranty & After-sales Service
Q25: What is the warranty period and coverage for outdoor 1250kVA pad-mounted transformers?
A25: The standard warranty period of the equipment is 1 year from the date of on-site qualified acceptance. For municipal grid key projects, large industrial park supporting projects and batch customized orders, we can extend the warranty period to 2–3 years free of charge. The warranty scope covers all manufacturing process defects and original accessory quality faults, ensuring normal high-load operation of the equipment. Failures caused by on-site improper operation, artificial damage, long-term overload operation and unauthorized equipment modification are not included in the warranty scope.
Q26: Can you supply original spare parts after the warranty expires?
A26: We provide lifelong supply of original genuine spare parts for all sold 1250kVA pad-mounted transformers, including sealing accessories, protection devices, temperature control components, insulating oil and other wearing parts. It effectively solves the problem of difficult matching of after-sales accessories for large outdoor power equipment, ensures long-term safe and stable high-load operation of the equipment, and provides lasting technical support for project operation and maintenance.
Q27: What is the response speed of technical support and after-sales service?
A27: We provide 24/7 online all-weather technical consultation and after-sales support, responding to conventional technical questions and general equipment faults within 1 hour. For on-site maintenance and fault troubleshooting demands, we can arrange professional certified electrical engineers to arrive at the project site within 7–12 working days according to different regional locations. For sudden power supply faults of municipal and industrial key projects, we start the emergency response mechanism priority to quickly troubleshoot faults and minimize power outage losses.
Q28: What is your factory quality control system for pad-mounted transformers?
A28: We strictly implement the full-process ISO quality management system, focusing on the high-load and long-term unattended outdoor operation characteristics of 1250kVA large-capacity transformers. We carry out strict quality control in core links such as sealing performance, anti-corrosion performance, loss parameter control, insulation stability and short-circuit resistance. Each piece of equipment passes full-item factory tests including insulation test, loss test, noise test, sealing test and load operation test before delivery. We fully support third-party institutions such as BV and SGS to conduct factory audits and quality inspections, ensuring that all products meet global municipal and industrial power distribution operation standards.

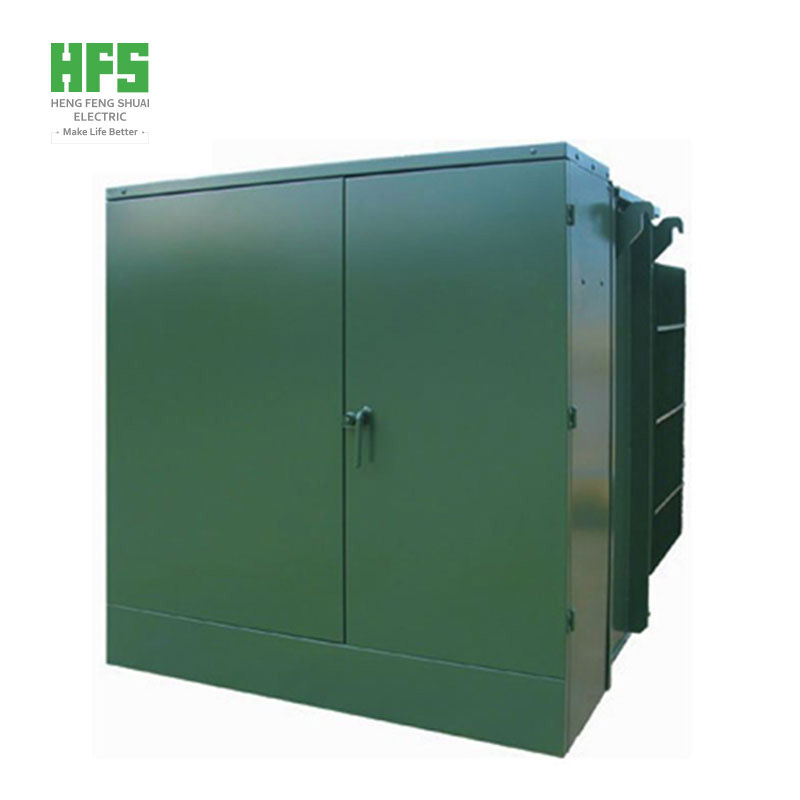

Capacity: 1250KVA Pad Mounted Transformer
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 34.5kV,35kV;
Maximum operating voltage:38.5kV
| Pad Mounted Transformer Technical Specification | |||||||||
| RatedPower(KVA) | H.V(KV) | L.V(V) | Loss(W) | Dimension(CM) | Weight(KG) | ||||
| No-loadLoss (W) | On-loadLoss (W) | W | D | H | Oil Weight | Total Weight | |||
| 75KVA | 34.5KV 19.92KV 13.8KV 13.2KV 7.62KV 12.47KV 7.2KV |
240V480V4 80Y/277V 600Y/347V |
180 | 1250 | 1390 | 910 | 1430 | 120 | 645 |
| 112.5KVA | 200 | 1500 | 1420 | 920 | 1430 | 138 | 729 | ||
| 150KVA | 280 | 2200 | 1510 | 980 | 1530 | 201 | 989 | ||
| 225KVA | 400 | 3050 | 1600 | 1000 | 1660 | 230 | 1195 | ||
| 300KVA | 480 | 3650 | 1660 | 1080 | 1680 | 260 | 1415 | ||
| 500KVA | 680 | 5100 | 1810 | 1160 | 1790 | 325 | 1905 | ||
| 750KVA | 980 | 7500 | 2030 | 1300 | 2030 | 535 | 2755 | ||
| 1000KVA | 1150 | 10300 | 1651 | 1549 | 1854 | 650 | 3235 | ||
| 1500KVA | 1640 | 14500 | 2210 | 1470 | 2150 | 748 | 5835 | ||
| 2000KVA | 2160 | 20645 | 2380 | 1600 | 2220 | 950 | 6430 | ||
| 2500KVA | 2680 | 27786 | 2480 | 1650 | 2330 | 1020 | 8865 | ||
