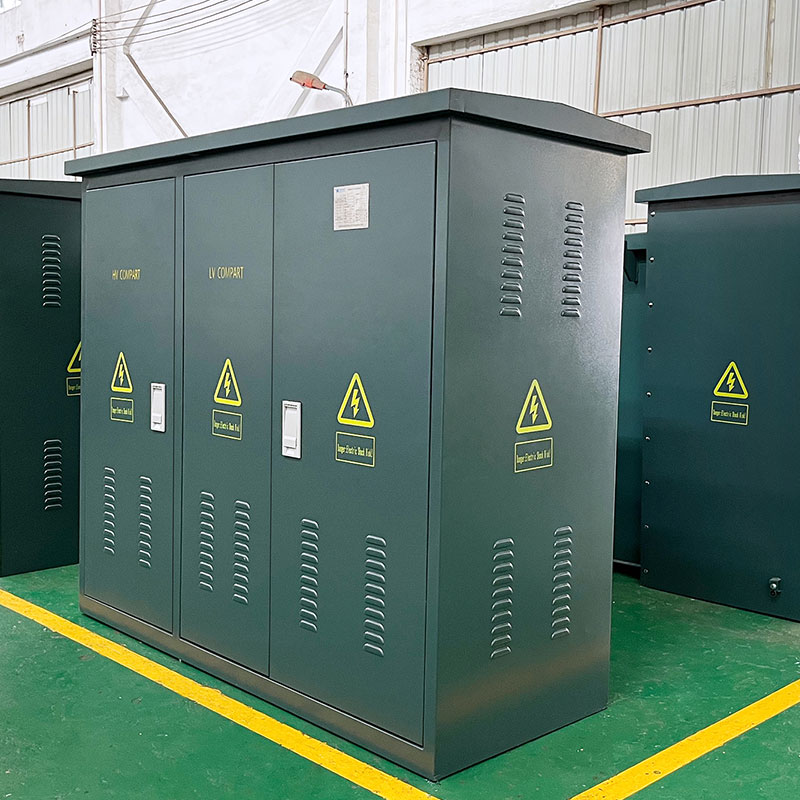

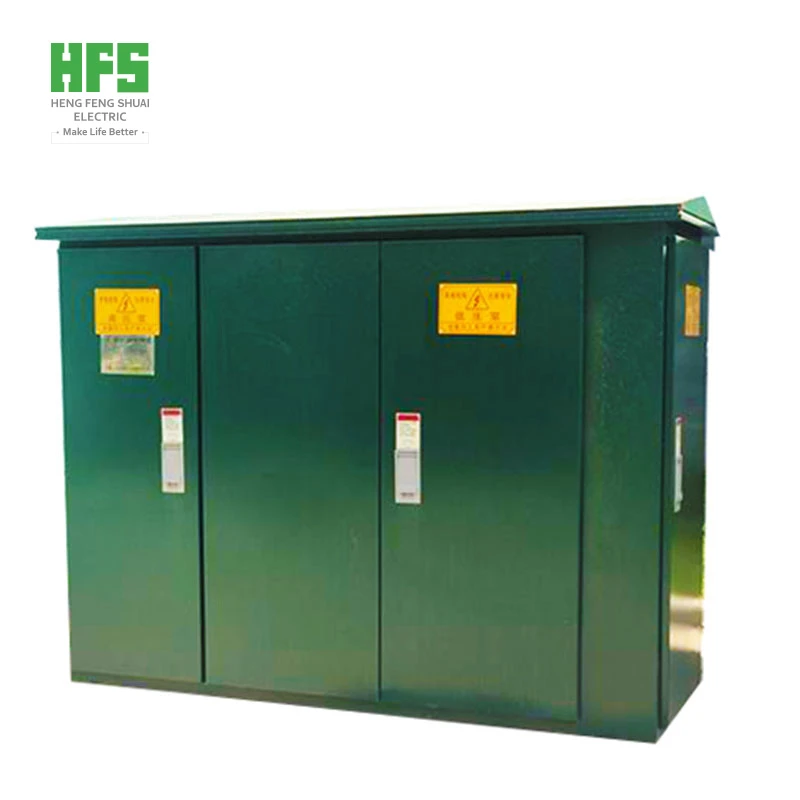

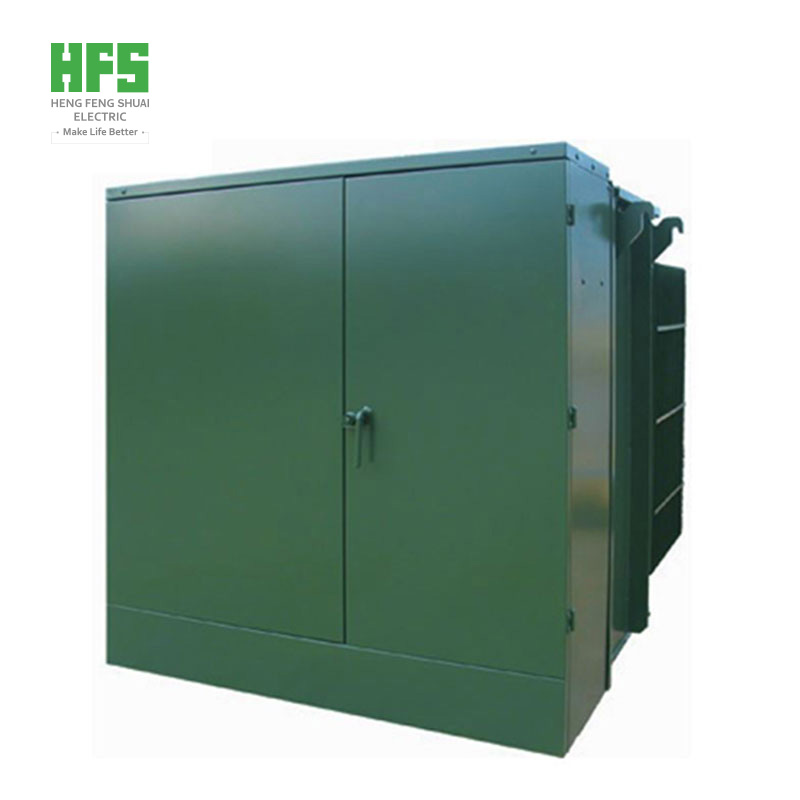

ZGS-13 Series 800KVA Pad Mounted Transformer

  • Classification: Pad Mounted Transformer
  • Number of Views: 154次
  • Date of issue: 2026-10-10 16:02:06


  • Product overview:


    • ZGS-13 Series 800KVA Pad Mounted Transformer is a low cost, high reliability, intelligent urban power distribution solutions

    • 800 kva pad mounted transformer is a transformer combining transformer, switchgear, fuse, tap switch, low-voltage distribution device and other corresponding auxiliary equipment, which can meet the user's energy metering, reactive power compensation, low-voltage shunt and other configuration requirements
    • Rated AC frequency 50Hz/60HZ, maximum operating voltage to 38.5kV
    • The equipment is widely used in industrial parks, urban residential areas, commercial centers, high-rise buildings and other places
    • Products are mainly sold to North America, East Asia, Southeast Asia, the Middle East and other countries and regions, can provide OEM/ODM services
    • Standards: ANSI C57
    , IEEE,DOE,CSA, IEC60067, GB 1094, GB17467-2010, GB/T 14048.8.1 GB 4208


Product advantages
ZGS-13 Series 800KVA Pad Mounted Transformer
Why Choose Our 800KVA  Three Phase Pad Mounted Transformer?
Leading Technology
• Fully enclosed & insulated structure – safe and reliable operation
• Low loss, low noise, low temperature rise
• High overload capacity & strong short-circuit withstand capability

Flexible System Integration
• Supports terminal system or ring network system
• Easy configuration switch – improves power supply reliability

Heavy-Duty Enclosure
• Material: cold-rolled, hot-dip galvanized steel
• Laser-cut CNC drilled and bent panels
• Electrostatic spray coating –30 years paint life
• Core unit: low loss oil-immersed transformer from Hengfengshuai Electric

Precision Manufacturing
• Assembly technicians: minimum 6 months training
• Secondary wiring: automatic cutting for reliable connection
• Bolt tightening: power tools with precise torque control
• Copper busbar: CNC punched and bent
• 100% pre-delivery testing


Company Advantages – Built for Global Buyers
• Certifications |ISO, CE, CB, UL |
• Quality System | SQA management – guaranteed consistency |
• Fast Response | Quick quote + electrical design support |
• Delivery | Short lead time, worldwide shipping |
• After-Sales | Complete service system |
• Customization | OEM/ODM – factory visit welcome |

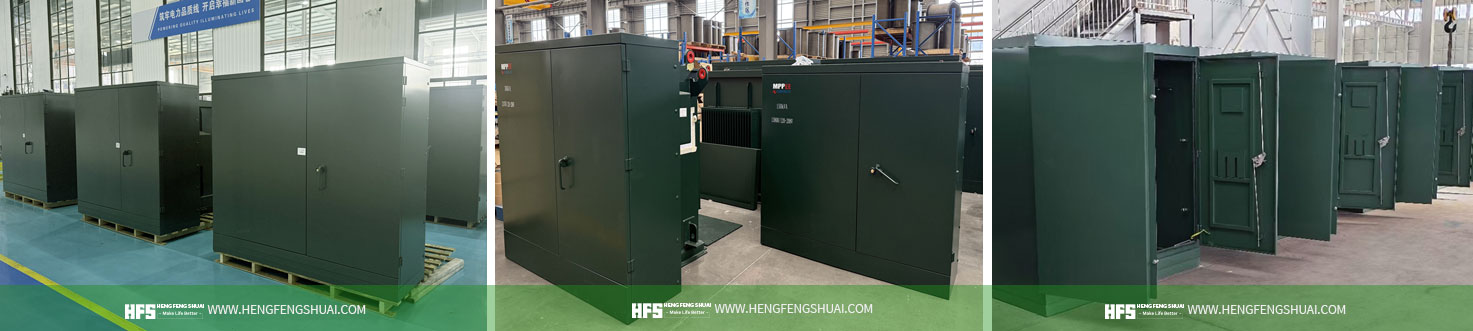

800KVA  Three Phase Pad Mounted Transformer Case
Three Phase Pad Mounted Transformer Case


800KVA  Three Phase Pad Mounted Transformer FAQ

1. Standard & Certification

Q1: What industry standards do your 800kVA pad-mounted transformers comply with? Are they suitable for North American and global municipal grid access?
A1: Our 800kVA three-phase pad-mounted transformers are fully designed, tested and manufactured in strict accordance with ANSI/IEEE C57.12 series core standards, CSA C227.4 safety specifications and DOE 2016 energy efficiency standards, meeting mandatory access requirements for North American municipal distribution grids. Meanwhile, the product fully conforms to IEC 60076 international power transformer standards, GB national standards, EN European standards and AS/NZS Australian and New Zealand standards, supporting global market grid integration. Optimized for urban community cluster power supply, commercial park distribution, light industrial park power supply and small-scale distributed PV grid-tie scenarios, this model complies with global municipal public safety power distribution codes. We can provide targeted standard matching verification according to project regional requirements and deliver complete official certification files for local grid review, municipal engineering acceptance and project filing.
Q2: Can you provide DOE efficiency certification and third-party full test reports? Is field witnessed inspection supported?
A2: We supply official DOE energy efficiency certification for medium-capacity pad-mounted transformers, CNAS-accredited full type test reports and authoritative third-party test reports covering load loss, no-load loss, insulation resistance, lightning impulse withstand, short-circuit resistance, mechanical structural strength and full safety protection indicators. For urban municipal grid upgrading, residential cluster power distribution, commercial complex supporting power and light industrial power supply projects, we support on-site witnessed factory testing and on-site grid acceptance inspection. All test data strictly meets the industry access thresholds for 800kVA outdoor distribution transformers, fully complying with local power bureau grid access and operation management standards.
Q3: What technical documents are included in delivery? Can you provide multi-language municipal engineering manuals?
A3: The standard delivery package contains complete English-version municipal and industrial grade technical documents: equipment formal nameplate, overall pad installation layout drawing, foundation embedding and pre-construction drawing, high and low voltage complete wiring schematic, full-item FAT factory test report, professional operation and maintenance manual for medium-capacity outdoor pad-mounted transformers, equipment parameter specification sheet and complete spare parts list. We support customized multi-language technical manuals including Spanish, Portuguese, Arabic and French. The manuals are optimized for municipal construction, commercial property operation and overseas engineering team application, with standardized operation processes and simplified practical maintenance guidelines tailored for 800kVA civil and light industrial power distribution equipment.

2. Technical Performance & Structural Features

Q4: What winding options are available for 800kVA pad-mounted transformers? Can material performance be guaranteed for long-term outdoor operation?
A4: This 800kVA medium-capacity model provides two mainstream winding configurations: high-purity oxygen-free copper windings and high-temperature resistant reinforced aluminum windings, which are perfectly adapted for long-term outdoor steady-load power distribution scenarios. All winding material parameters, conductivity and temperature resistance indicators can be clearly specified in technical agreements and formal contracts, with complete raw material test certificates and full production traceability records. The capacity-optimized winding structure effectively reduces no-load and load loss, improving comprehensive energy efficiency. Matched with F/H-class high-temperature insulation system and reinforced insulation structure, it stably withstands outdoor temperature fluctuations and long-term continuous load operation, ensuring reliable power supply for municipal and light industrial scenarios.
Q5: Can voltage grade and electrical parameters be customized for municipal and industrial scenarios? How to handle unqualified products?
A5: All core electrical parameters support personalized customization to adapt to diverse global application scenarios. Common primary voltage grades cover 11kV, 13.2kV, 13.8kV and other mainstream grid standards; secondary voltage supports 400V, 480V, 208Y/120V, fully matching urban residential, commercial and light industrial power supply demands. No-load loss, full-load loss and impedance voltage values can be adjusted according to local municipal grid energy-saving standards and industrial power supply specifications. All 800kVA transformers undergo 100% full-item strict factory testing before delivery. Any unqualified products detected during production or testing will be fully reworked or replaced free of charge, and defective products are strictly prohibited from delivery to ensure on-site power supply stability and safety.
Q6: Can the 800kVA pad-mounted transformer adapt to outdoor complex environments such as coastal salt spray, high temperature, high humidity and urban seismic zones?
A6: As a fully sealed outdoor medium-capacity power distribution device, this transformer has excellent comprehensive environmental adaptability, with targeted optimization solutions for extreme working conditions. For coastal areas and industrial polluted areas, C5M high-grade anti-corrosion electrostatic spraying and internal anti-rust treatment are adopted to resist salt spray corrosion and industrial flue gas erosion. For tropical and subtropical high-temperature and high-humidity regions, the insulation system and natural heat dissipation structure are upgraded to enhance high-temperature operation stability. The overall fully sealed waterproof and dustproof structure effectively blocks rainwater, dust and moisture intrusion. For urban seismic zones and road vibration-prone areas, the integral reinforced base and multi-point shock-absorbing structure are equipped to resist structural vibration and impact. All designs focus on long-term unattended outdoor stable operation.
Q7: Is this transformer applicable for medium-sized distributed photovoltaics, urban regional power supply and commercial building grid-tie? How about harmonic resistance?
A7: The 800kVA pad-mounted transformer is specially optimized for medium-sized distributed photovoltaic grid connection, urban community regional power supply, commercial park full-scene power supply and light industrial plant grid-tie scenarios. The upgraded core magnetic circuit optimization design and anti-harmonic winding structure can effectively suppress high-order harmonic interference generated by medium-scale photovoltaic power generation systems, commercial electrical equipment and light industrial frequency conversion loads, significantly reduce harmonic heating, voltage fluctuation and waveform distortion. It can perfectly adapt to the intermittent power output of medium-sized distributed energy stations and complex peak load fluctuations of municipal and light industrial loads, ensuring high-quality and stable grid-tie operation and continuous power supply.
Q8: What is the standard noise level? Is low-noise configuration available for urban residential areas and scenic commercial zones?
A8: Adopting medium-capacity silent optimized structure, core shock absorption fixation and overall noise reduction design, the standard operating noise of the transformer is ≤50dB under IEC standard test conditions, lower than traditional industrial transformers of the same capacity. For noise-sensitive scenarios such as urban core residential areas, municipal parks, school districts and scenic commercial belts, we provide customized ultra-low-noise upgraded version (≤46dB), equipped with integral damping base, silent isolation structure and external noise reduction baffles. Official professional noise test certificates can be provided to meet urban environmental assessment and municipal engineering acceptance standards.
Q9: Does the equipment have reliable lightning protection and short-circuit resistance for outdoor urban grid operation?
A9: The 800kVA pad-mounted transformer is equipped with standard outdoor lightning impulse protection system and built-in high-sensitivity overvoltage protection devices, which can effectively resist lightning strike impact and grid switching overvoltage in open outdoor environments. The reinforced anti-short-circuit winding and core structure can withstand instantaneous short-circuit faults caused by urban line aging, grid load fluctuation and equipment abnormality. It fully meets municipal grid safety operation standards, and can provide complete lightning impulse test and short-circuit resistance test reports to support project safety assessment and acceptance.
Q10: What is the design service life? How does the insulation system ensure long-term outdoor operation?
A10: The standard design service life of this 800kVA outdoor pad-mounted transformer is 25 years, suitable for long-term municipal community, commercial and light industrial fixed power supply scenarios. It adopts high-stability premium oil-paper composite insulation system, strictly follows the 6℃ insulation ageing attenuation rule, and reserves sufficient temperature resistance and ageing resistance margin for long-term steady-load operation and outdoor extreme temperature changes. With regular professional oil quality maintenance, sealing inspection and routine equipment debugging, the actual service life can reach 30 years, fully adapting to unattended, long-cycle outdoor power distribution operation requirements.
Q11: What are your core advantages as a professional manufacturer of medium-capacity pad-mounted transformers?
A11: We are a professional manufacturer specializing in R&D, production and customization of medium-capacity outdoor pad-mounted distribution transformers, with rich export engineering experience in North America, Europe, Southeast Asia, Middle East and other global municipal and light industrial power projects. All core production processes including core stamping, winding production, insulation wrapping, sealing assembly and overall performance testing are independently completed in our factory without outsourcing, ensuring stable and consistent product quality. Our 800kVA transformers feature compact integrated structure, low loss, ultra-low noise, strong environmental adaptability and cost-effective performance, widely applied in urban grid renovation, residential cluster power supply, commercial parks and medium-sized distributed photovoltaic projects. We fully support customer factory audits and third-party authoritative inspection and certification.

3. Customization, Dimension & On-site Installation

Q12: Can you customize non-standard 800kVA pad-mounted transformers for special municipal and industrial scenarios?
A12: We support full non-standard personalized customization for special scenario demands. Customizable items include regional exclusive voltage parameter matching, urban landscape coordinated color spraying, anti-theft and anti-damage reinforced door lock structure, IP protection grade upgrade, customized foundation size and installation spacing, extreme low-temperature/high-temperature adaptive upgrade, and load performance optimization. Key supporting accessories can be equipped with customer designated international brand products. All customized technical requirements will be sorted out and confirmed in formal technical agreement documents to ensure full compliance with on-site municipal construction and light industrial power supply standards.
Q13: Can you provide foundation dimension drawings and overall weight data? Is the equipment convenient for on-site hoisting and cross-border transportation?
A13: We will provide complete and accurate technical data including overall dimension drawings, foundation embedding construction drawings, on-site installation spacing specifications, net weight and gross weight detailed data together with the formal quotation. This integrated 800kVA pad-mounted transformer features small footprint, compact structure and light weight, with no ultra-wide or ultra-heavy transportation restrictions. It supports integral one-time hoisting and on-site positioning installation, greatly shortening project construction cycles. The equipment is fully adaptable to cross-border sea freight, railway transportation and road transportation, with no need for special large equipment transportation risk assessment, realizing convenient and efficient global project delivery.
Q14: What is the export packaging mode for outdoor 800kVA pad-mounted transformers?
A14: We adopt graded professional export packaging suitable for medium-capacity power equipment. For short-distance cross-border transportation and nearby project delivery, full oil-sealed integral packaging is adopted, which can be directly placed on site and put into power transmission quickly without secondary assembly. For long-distance ocean transportation and transcontinental projects, we adopt oil-drained nitrogen-filled anti-oxidation protection + reinforced shockproof wooden box packaging, equipped with professional impact recorders and vibration monitoring devices. The packaging undergoes multi-layer rust-proof, moisture-proof and weather-resistant treatment, which can effectively protect the equipment sealing structure and internal precision components, avoiding collision, moisture and corrosion damage during long-term ocean transportation.

4. Production & FAT Acceptance

Q15: What is the production cycle of 800kVA pad-mounted transformers? How to ensure on-time delivery for municipal and industrial key projects?
A15: The production cycle of standard 800kVA pad-mounted transformers is 12–20 working days. For customized models with special environmental adaptation, landscape appearance optimization and special parameter adjustment, as well as batch project orders, the production cycle is 20–30 working days. The detailed delivery schedule is clearly stipulated in the formal contract. During the production period, we regularly update production progress photos, process inspection records and intermediate test reports. For municipal key grid projects and commercial supporting projects, we implement production priority scheduling mechanism to ensure on-time delivery and fully meet the on-site construction progress requirements.
Q16: Can customers or third-party institutions witness factory FAT acceptance?
A16: We fully support customer on-site factory inspection and full FAT test witnessing, and recognize authoritative third-party inspection institutions such as SGS, BV and TUV for factory verification and certification. We will actively coordinate production and test schedules in advance according to customer demands, provide complete production process records, raw material qualification certificates, full-item performance test data and compliance documents, ensuring the entire factory acceptance process is transparent, standardized and compliant with municipal project bidding specifications and engineering acceptance standards.
Q17: Are core components traceable? Are key processes outsourced?
A17: All core components of the 800kVA transformer (high-precision silicon steel core, high-purity winding, special insulating oil, sealed bushing, overvoltage protection device, temperature control system) have complete batch production traceability records and official qualification certificates. All key production processes including core processing, winding fabrication, insulation treatment, sealing assembly, overall debugging and full performance testing are independently completed in our factory with zero outsourcing. This strictly controls product quality consistency, avoids quality risks caused by outsourcing links, and ensures long-term stable operation performance of the equipment.

5. Quotation, Payment & Customs Clearance

Q18: How long is the quotation valid? Will the price fluctuate with raw materials?
A18: The standard quotation validity period is 15 working days with fixed unit price. For batch municipal engineering orders, commercial park supporting projects and long-term strategic cooperative customers, we can extend the quotation validity period to 120 days. The price is kept stable within the valid period. After the quotation expires, we will update the price in real time according to the latest market fluctuation of copper, silicon steel and other core raw materials to ensure quotation fairness and rationality.
Q19: What payment terms are supported? Is L/C payment acceptable for engineering projects?
A19: We support flexible and diversified international payment methods, including TT telegraphic transfer and irrevocable sight L/C, which is fully applicable to overseas engineering project procurement standards. The advance payment ratio, installment cycle and payment terms can be flexibly negotiated according to order quantity, project nature and cooperative cycle. All commercial payment terms will be clearly written into formal export contracts to protect the legitimate rights and interests of both parties, adapting to the payment habits of overseas engineering companies and government municipal procurement projects.
Q20: Can you provide preferential certificate of origin for tariff exemption?
A20: We can provide complete and standardized customs clearance documents, including CO general certificate of origin, FORM E China-ASEAN certificate of origin, FORM A generalized preferential certificate of origin and other preferential certification documents. These certificates can help customers successfully apply for tariff reduction or exemption in the destination country, effectively reduce project procurement and customs clearance costs, and ensure efficient and smooth cross-border customs clearance of power equipment.

6. Packaging, Logistics & Insurance

Q21: Does the export packaging meet international sea freight standards? Is it suitable for long-term overseas transportation?
A21: All export packaging of 800kVA pad-mounted transformers adopts international export-grade special treatment, including multi-layer anti-rust, moisture-proof, shockproof, sun-proof and weather-resistant protection, tailored for medium-capacity outdoor electrical equipment. The packaging wooden boxes have formal IPPC fumigation marks, fully meeting international plant quarantine and ocean freight packaging standards. The integral sealed packaging structure can resist harsh marine climate such as high humidity, salt fog and strong wind, ensuring zero damage to equipment structure and internal performance during long-distance transoceanic transportation.
Q22: What logistics solutions are available for 800kVA pad-mounted transformers?
A22: Combining the lightweight and compact structural characteristics of 800kVA pad-mounted transformers, we provide diversified and efficient targeted logistics solutions. Global bulk orders adopt sea freight with low comprehensive cost and large loading capacity; Eurasian regional municipal and commercial projects adopt China-Europe railway transportation with short cycle and high efficiency; neighboring countries and short-distance cross-border projects adopt dedicated truck transportation for fast delivery. The overall logistics cost is low and the transportation cycle is short, with no complex transportation approval required.
Q23: What is the cargo damage claim process during transportation?
A23: All exported 800kVA transformers are fully covered by professional transportation insurance. After the goods arrive at the port or site, if packaging damage, equipment deformation or performance failure caused by transportation factors is found, customers only need to collect on-site photos, videos, waybills and other valid evidence within 48 hours and submit a formal claim application. We will provide a full set of contract documents, packing lists, factory test reports and supporting materials to assist customers in completing insurance assessment and claim settlement, with the final result subject to the insurance policy terms and third-party professional assessment.

7. SAT & On-site Commissioning Service

Q24: Do you provide overseas on-site installation guidance and municipal project commissioning services?
A24: We provide global one-stop full-cycle on-site technical services for medium-capacity pad-mounted transformers, including on-site foundation installation guidance, equipment positioning calibration, high and low voltage wiring debugging, grid-tie performance testing, load trial operation and project SAT on-site acceptance. The engineering technical service adopts independent quotation and customized service scheme according to project scale and regional location. At the same time, we provide free 24/7 all-weather remote technical support, quickly responding to and solving on-site installation, debugging and operation faults, ensuring rapid grid connection and power transmission of municipal and commercial key projects.

8. Warranty & After-sales Service

Q25: What is the warranty period and coverage for outdoor 800kVA pad-mounted transformers?
A25: The standard warranty period of the equipment is 1 year from the date of on-site qualified acceptance. For municipal grid key projects, commercial cluster supporting projects and batch customized orders, we can extend the warranty period to 2–3 years free of charge. The warranty scope covers all manufacturing process defects and original accessory quality faults, ensuring normal stable-load operation of the equipment. Failures caused by on-site improper operation, artificial damage, overload operation and unauthorized equipment modification are not included in the warranty scope.
Q26: Can you supply original spare parts after the warranty expires?
A26: We provide lifelong supply of original genuine spare parts for all sold 800kVA pad-mounted transformers, including sealing accessories, protection devices, temperature control components, insulating oil and other wearing parts. It effectively solves the problem of difficult matching of after-sales accessories for outdoor power equipment, ensures long-term safe and stable operation of the equipment, and provides lasting technical support for municipal and commercial project operation and maintenance.
Q27: What is the response speed of technical support and after-sales service?
A27: We provide 24/7 online all-weather technical consultation and after-sales support, responding to conventional technical questions and general equipment faults within 1 hour. For on-site maintenance and fault troubleshooting demands, we can arrange professional certified electrical engineers to arrive at the project site within 7–12 working days according to different regional locations. For sudden power supply faults of municipal and commercial key projects, we start the emergency response mechanism priority to quickly troubleshoot faults and minimize power outage losses.
Q28: What is your factory quality control system for pad-mounted transformers?
A28: We strictly implement the full-process ISO quality management system, focusing on the outdoor unattended and medium-load operation characteristics of 800kVA medium-capacity transformers. We carry out strict quality control in core links such as sealing performance, anti-corrosion performance, loss parameter control, insulation stability and short-circuit resistance. Each piece of equipment passes full-item factory tests including insulation test, loss test, noise test, sealing test and load operation test before delivery. We fully support third-party institutions such as BV and SGS to conduct factory audits and quality inspections, ensuring that all products meet global municipal and commercial power distribution operation standards.



Product parameters

Capacity: 800KVA Pad Mounted Transformer
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 34.5kV,35kV;
Maximum operating voltage:38.5kV

Pad Mounted Transformer Technical Specification
RatedPower(KVA) H.V(KV) L.V(V) Loss(W) Dimension(CM) Weight(KG)
No-loadLoss (W) On-loadLoss (W) W D H Oil   Weight Total  Weight
75KVA 34.5KV
19.92KV
13.8KV
13.2KV
7.62KV
12.47KV
7.2KV
240V480V4
80Y/277V
600Y/347V
180 1250 1390 910 1430 120 645
112.5KVA 200 1500 1420 920 1430 138 729
150KVA 280 2200 1510 980 1530 201 989
225KVA 400 3050 1600 1000 1660 230 1195
300KVA 480 3650 1660 1080 1680 260 1415
500KVA 680 5100 1810 1160 1790 325 1905
750KVA 980 7500 2030 1300 2030 535 2755
1000KVA 1150 10300 1651 1549 1854 650 3235
1500KVA 1640 14500 2210 1470 2150 748 5835
2000KVA 2160 20645 2380 1600 2220 950 6430
2500KVA 2680 27786 2480 1650 2330 1020 8865
