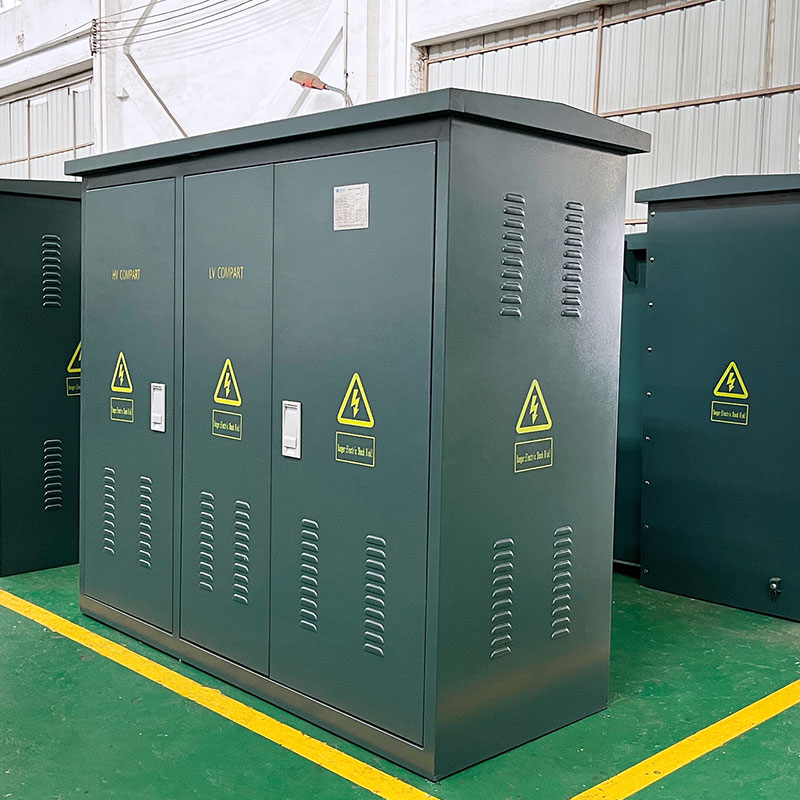

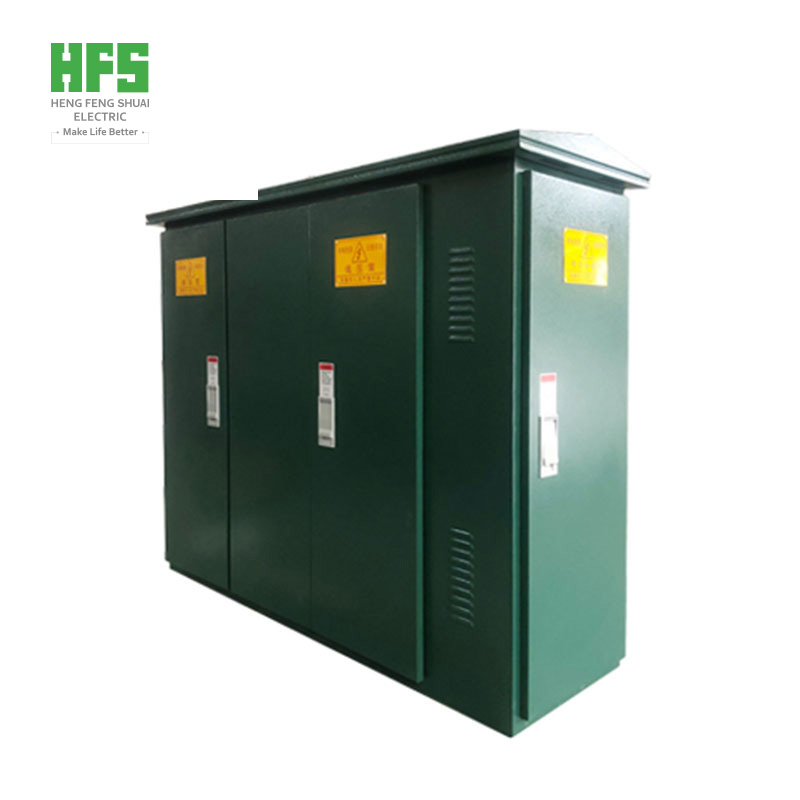

ZGS-13 Series 1000KVA Pad Mounted Transformer

  • Classification: Pad Mounted Transformer
  • Number of Views: 161次
  • Date of issue: 2026-10-09 16:24:16


  • Product overview:

    The ZGS-13 Series 1000kVA Pad Mounted Transformer delivers:

    - Low cost – Economical solution without compromising quality
    - High reliability – Robust design for continuous operation
    - Intelligent performance – Suitable for modern urban power grids

    It serves as an ideal integrated solution for urban power distribution projects.

    Integrated Components

    This 1000kVA pad mounted transformer integrates the following into one compact unit:

    Component Function
    Transformer Core power conversion
    Switchgear Circuit control & protection
    Fuse Overcurrent protection
    Tap changer Voltage regulation
    Low voltage distribution LV power management
    Auxiliary equipment Supporting functions


    This fully integrated design meets user demands for:

    - Electric energy metering

    - Reactive power compensation

    - Low voltage shunt configuration


    Global Markets & Services

    Item Details
    Main Export Regions North America, East Asia, Southeast Asia, Middle East, and more
    Customization OEM / ODM services available
    Standards Compliance ANSI C57, IEEE, DOE, CSA, IEC 60076, GB 1094, GB 17467-2010, GB/T 14048.8.1, GB 4208

Product advantages
ZGS-13 Series 1000KVA Pad Mounted Transformer
Why Choose Our 1000KVA  Three Phase Pad Mounted Transformer?
Leading Technology
• Fully enclosed & insulated structure – safe and reliable operation
• Low loss, low noise, low temperature rise
• High overload capacity & strong short-circuit withstand capability

Flexible System Integration
• Supports terminal system or ring network system
• Easy configuration switch – improves power supply reliability

Heavy-Duty Enclosure
• Material: cold-rolled, hot-dip galvanized steel
• Laser-cut CNC drilled and bent panels
• Electrostatic spray coating –30 years paint life
• Core unit: low loss oil-immersed transformer from Hengfengshuai Electric

Precision Manufacturing
• Assembly technicians: minimum 6 months training
• Secondary wiring: automatic cutting for reliable connection
• Bolt tightening: power tools with precise torque control
• Copper busbar: CNC punched and bent
• 100% pre-delivery testing


Company Advantages – Built for Global Buyers
• Certifications |ISO, CE, CB, UL |
• Quality System | SQA management – guaranteed consistency |
• Fast Response | Quick quote + electrical design support |
• Delivery | Short lead time, worldwide shipping |
• After-Sales | Complete service system |
• Customization | OEM/ODM – factory visit welcome |



1000KVA Three Phase Pad Mounted Transformer Case
Three Phase Pad Mounted Transformer Case



1000KVA Three Phase Pad Mounted Transformer FAQ

1. Standard & Certification

Q1: What industry standards do your 1000kVA pad-mounted transformers comply with? Are they suitable for North American and global municipal grid access?
A1: Our 1000kVA three-phase pad-mounted transformers are designed, tested and manufactured in strict accordance with ANSI/IEEE C57.12 series, CSA C227.4 and DOE 2016 energy efficiency standards, fully meeting mandatory grid access specifications for North American municipal distribution networks. Meanwhile, the product complies with IEC 60076, GB, EN and AS/NZS international mainstream standards, supporting global market grid integration. This medium-large capacity model is optimized for urban grid reconstruction, commercial cluster power supply, medium-sized industrial parks and distributed energy grid-tie projects, conforming to international municipal public safety power distribution codes. We can provide targeted standard verification according to project location and deliver complete certification files for local grid approval and municipal engineering acceptance.
Q2: Can you provide DOE efficiency certification and third-party full test reports? Is field witnessed inspection supported?
A2: We provide official DOE energy efficiency certification, CNAS-accredited full type test reports and authoritative third-party test reports covering no-load/load loss parameters, insulation performance, lightning impulse withstand, short-circuit resistance, mechanical strength and full safety protection indicators. For municipal grid renovation projects, commercial district supporting projects, industrial park power supply projects and large community power distribution projects, on-site witnessed factory tests and field acceptance inspections are fully supported. All test data strictly meets the industry access thresholds for 1000kVA medium-large outdoor pad-mounted transformers, fully complying with local power bureau operation and access standards.
Q3: What technical documents are included in delivery? Can you provide multi-language municipal engineering manuals?
A3: The standard delivery package includes complete English municipal and industrial-grade technical documents: equipment nameplate, pad installation layout drawing, foundation embedding drawing, high and low voltage wiring schematic, full-item FAT test report, operation and maintenance manual for outdoor medium-large capacity pad-mounted transformers, parameter specification sheet and complete spare parts list. We support customized Spanish, Portuguese, Arabic and French multi-language engineering manuals. The manuals are tailored for overseas municipal construction, commercial operation and engineering team use, with standardized and practical operation and maintenance guidelines, perfectly matching the daily operation requirements of 1000kVA civil and industrial dual-purpose transformers.

2. Technical Performance & Structural Features

Q4: What winding options are available for 1000kVA pad-mounted transformers? Can material performance be guaranteed for long-term outdoor high-load operation?
A4: This 1000kVA model supports two mainstream high-performance winding configurations: high-purity oxygen-free copper windings and high-temperature resistant reinforced aluminum windings, suitable for long-term outdoor medium and high-load continuous operation scenarios. All winding material parameters, conductivity and temperature resistance indicators can be clearly stipulated in formal contracts and technical agreements, with complete material test certificates and full production traceability records. The optimized winding structure for 1000kVA capacity effectively reduces no-load and load loss, improving overall operating efficiency. Equipped with F/H-class composite insulation system, it adapts to extreme outdoor temperature changes and long-term peak load operation, ensuring stable power supply for municipal and medium industrial scenarios.
Q5: Can voltage grade and electrical parameters be customized for municipal and industrial scenarios? How to handle unqualified products?
A5: All core electrical parameters support personalized customization to adapt to diverse global scenarios. Common primary voltage covers 11kV, 13.2kV, 13.8kV and other mainstream grid standards; secondary voltage supports 400V, 480V, 208Y/120V, matching global residential, commercial and medium industrial power supply demands. No-load loss, load loss and impedance values can be adjusted according to local municipal grid energy-saving and safety standards. All 1000kVA transformers pass 100% full-item factory testing before delivery. Any unqualified products will be fully reworked or replaced free of charge, with defective products strictly prohibited from delivery to ensure on-site power supply stability and safety.
Q6: Can the 1000kVA pad-mounted transformer adapt to outdoor complex environments such as coastal salt spray, high temperature, humidity and urban seismic zones?
A6: As a fully sealed outdoor medium-large capacity power distribution device, this transformer possesses excellent comprehensive environmental adaptability, with targeted optimization solutions for complex working conditions. For coastal salt spray and industrial pollution areas, C5M high-grade anti-corrosion electrostatic spraying and internal anti-rust treatment are adopted to resist corrosion and flue gas erosion. For high-temperature and high-humidity tropical regions, the insulation and heat dissipation structure is upgraded to enhance high-temperature operation stability. The fully sealed integral structure effectively prevents rainwater, dust and moisture intrusion. For urban seismic zones and vibration-prone road sections, a reinforced thickened base and multi-point shock-absorbing structure are equipped to resist structural vibration and impact. All designs focus on long-term unattended outdoor stable operation.
Q7: Is this transformer applicable for medium-sized distributed photovoltaics, urban centralized power supply and industrial building grid-tie? How about harmonic resistance?
A7: The 1000kVA pad-mounted transformer is specially optimized for medium-sized distributed photovoltaic grid connection, urban municipal regional power supply, medium-sized industrial parks and large commercial building grid-tie scenarios. The upgraded core magnetic circuit and anti-harmonic winding structure can effectively suppress high-order harmonic interference generated by photovoltaic power generation equipment, industrial frequency conversion devices and large civil electrical loads, reduce harmonic heating and voltage waveform distortion. It perfectly adapts to intermittent power output of distributed energy and fluctuating peak loads of municipal and industrial systems, ensuring stable grid-tie and high-quality power supply.
Q8: What is the standard noise level? Is low-noise configuration available for urban residential areas and parks?
A8: Adopting capacity-matched silent optimization structure, core shock absorption fixation and overall noise reduction design, the standard operating noise is ≤52dB under IEC test conditions, far lower than traditional industrial transformers of the same capacity. For noise-sensitive scenarios such as urban core residential communities, municipal parks, school districts and commercial leisure zones, we provide an upgraded ultra-low-noise version (≤48dB), equipped with integral damping base, silent isolation structure and external noise reduction baffles. Official noise test certificates can be provided to meet urban environmental assessment and municipal engineering acceptance requirements.
Q9: Does the equipment have lightning protection and short-circuit resistance for outdoor urban grid high-load operation?
A9: The 1000kVA pad-mounted transformer is equipped with standard high-grade outdoor lightning impulse protection system and built-in high-sensitivity overvoltage protection devices, which can effectively resist lightning strikes and grid switching overvoltage in open outdoor environments. The reinforced anti-short-circuit winding and core structure can withstand instantaneous short-circuit faults caused by urban line aging, load surge and equipment abnormalities. It fully meets municipal main grid high-load safety operation standards, and complete lightning impulse and short-circuit resistance test reports can be provided for project acceptance and safety assessment.
Q10: What is the design service life? How does the insulation system ensure long-term outdoor operation?
A10: The standard design service life of the 1000kVA outdoor pad-mounted transformer is 25 years, suitable for long-term fixed power supply of municipal and medium industrial projects. It adopts high-stability oil-paper composite insulation system, strictly follows the 6℃ insulation ageing rule, and reserves sufficient temperature resistance and ageing margin for outdoor variable temperature and long-term medium-high load operation. With regular oil quality maintenance, sealing inspection and routine debugging, the actual service life can reach 30 years, fully adapting to long-term unattended outdoor municipal power distribution operation.
Q11: What are your product advantages as a professional pad-mounted transformer manufacturer?
A11: We are a professional manufacturer focusing on medium and large-capacity outdoor pad-mounted distribution transformers, with rich export experience in North America, Southeast Asia, Middle East and European municipal and industrial projects. All core processes including core processing, winding production, insulation wrapping, sealing assembly and overall testing are independently completed in-house without outsourcing. Our 1000kVA transformers feature compact integrated structure, low loss, low noise, strong overload capacity and excellent environmental adaptability, widely used in urban grid upgrading, medium industrial parks, commercial complexes and distributed photovoltaic projects. We fully support factory audits and third-party authoritative inspections.

3. Customization, Dimension & On-site Installation

Q12: Can you customize non-standard 1000kVA pad-mounted transformers for special municipal and industrial scenarios?
A12: Full non-standard personalized customization is supported for special scenario demands. Customizable contents include regional exclusive voltage parameter matching, urban landscape coordinated color spraying, anti-theft and anti-damage reinforced door lock structure, IP protection grade upgrade, foundation size and installation spacing optimization, extreme high/low temperature adaptation upgrade and overload performance optimization. Key accessories can be equipped with customer-specified international brand products. All customized requirements will be confirmed via formal technical agreements to fully match on-site municipal construction and industrial power supply standards.
Q13: Can you provide foundation dimension drawings and overall weight data? Is the equipment convenient for on-site hoisting and cross-border transportation?
A13: We provide complete and accurate overall dimension drawings, foundation embedding construction drawings, installation spacing specifications and net/gross weight data together with the formal quotation. This 1000kVA integrated pad-mounted transformer has a compact structure and moderate volume and weight, with no ultra-wide or ultra-heavy transportation limitations compared with traditional split industrial transformers. It supports integral one-time hoisting and on-site installation, shortening construction cycles significantly. The equipment is fully adaptable to sea freight, railway and road cross-border transportation without special transportation risk assessment, convenient for global project delivery.
Q14: What is the export packaging mode for outdoor 1000kVA pad-mounted transformers?
A14: We adopt graded professional export packaging for medium-large capacity power equipment. For short-distance cross-border transportation, full oil-sealed integral packaging is applied for direct on-site placement and rapid power transmission. For long-distance transoceanic transportation, oil-drained nitrogen-filled anti-oxidation protection plus reinforced shockproof wooden box packaging is adopted, equipped with impact recorders to monitor transportation vibration. Multi-layer rust-proof, moisture-proof and weather-resistant treatment effectively protects the equipment sealing structure and internal components, avoiding collision and moisture damage during long-term overseas transportation.

4. Production & FAT Acceptance

Q15: What is the production cycle of 1000kVA pad-mounted transformers? How to ensure on-time delivery for municipal and industrial key projects?
A15: The production cycle of standard 1000kVA pad-mounted transformers is 14–22 working days. For customized models with special environmental adaptation, landscape optimization and batch project orders, the production cycle is 22–32 working days. The formal contract clearly stipulates the delivery schedule. We regularly update production progress photos, process inspection records and test reports during production. For municipal grid key projects and industrial supporting projects, we implement priority production scheduling to ensure on-time delivery and meet on-site construction progress requirements.
Q16: Can customers or third-party institutions witness factory FAT acceptance?
A16: We fully support customer on-site factory inspection and FAT test witnessing, and recognize authoritative third-party institutions such as SGS, BV and TUV for factory verification. We coordinate production and test schedules in advance according to customer needs, providing complete production process records, raw material certificates and full-item test data to ensure transparent and standardized acceptance procedures, complying with municipal project bidding and engineering acceptance specifications.
Q17: Are core components traceable? Are key processes outsourced?
A17: All core components (silicon steel core, winding, insulating oil, sealed bushing, protection device, temperature control system) have complete batch traceability records and qualification certificates. Key production links including core processing, winding fabrication, insulation treatment, sealing assembly and overall performance testing are independently completed in our factory with zero outsourcing. This ensures consistent product quality and stable long-term high-load operation performance of the equipment.

5. Quotation, Payment & Customs Clearance

Q18: How long is the quotation valid? Will the price fluctuate with raw materials?
A18: The standard quotation validity period is 15 working days with fixed price. For batch municipal engineering orders and long-term cooperative projects, the quotation validity can be extended to 120 days. The price remains stable within the valid period; expired quotations will be updated in real time according to the latest market prices of core raw materials such as copper and silicon steel.
Q19: What payment terms are supported? Is L/C payment acceptable for engineering projects?
A19: We support flexible international payment methods including TT telegraphic transfer and irrevocable sight L/C, fully adapting to overseas engineering project procurement standards. The advance payment ratio and installment terms can be flexibly negotiated according to order quantity and project nature. All commercial terms are specified in formal export contracts to protect the legitimate rights and interests of both parties, matching the payment habits of overseas engineering companies and municipal procurement projects.
Q20: Can you provide preferential certificate of origin for tariff exemption?
A20: We can provide complete customs clearance documents including CO certificate of origin, FORM E, FORM A and other preferential certification files, helping customers apply for destination country tariff reduction and exemption, reduce project procurement costs, and ensure efficient and smooth cross-border customs clearance of power equipment.

6. Packaging, Logistics & Insurance

Q21: Does the export packaging meet international sea freight standards? Is it suitable for long-term overseas transportation?
A21: All export packaging adopts international export-grade anti-rust, moisture-proof, shockproof and weather-resistant treatment, specially customized for medium-large outdoor electrical equipment. The packaging wooden boxes have complete IPPC fumigation marks, fully meeting international quarantine and sea freight standards. The integral sealed packaging structure resists humid and salty marine climate, ensuring no damage to equipment structure and performance during long-distance transoceanic transportation.
Q22: What logistics solutions are available for 1000kVA pad-mounted transformers?
A22: Based on the compact and lightweight advantages of 1000kVA integrated transformers, we provide diversified efficient logistics schemes: sea freight for global bulk orders with low cost; China-Europe railway for Eurasian municipal and industrial projects with short transportation cycle; truck transportation for neighboring countries and short-distance cross-border projects. Compared with large-capacity split transformers, our products have lower logistics difficulty and higher delivery efficiency.
Q23: What is the cargo damage claim process during transportation?
A23: All exported equipment is fully insured with professional transportation insurance. After goods arrival, if packaging damage or equipment failure caused by transportation factors occurs, customers only need to collect on-site photos, videos and waybill evidence within 48 hours and submit a claim application. We provide a full set of contract, packing list and test documents to assist customers in completing claim settlement, subject to insurance policy terms and third-party assessment results.

7. SAT & On-site Commissioning Service

Q24: Do you provide overseas on-site installation guidance and municipal project commissioning services?
A24: We provide global one-stop on-site technical services, including foundation installation guidance, equipment positioning calibration, high-low voltage wiring debugging, grid-tie testing, load trial operation and SAT on-site acceptance, with independent engineering service quotation. Meanwhile, free 24/7 remote technical support is provided to quickly solve on-site installation and operation problems, ensuring rapid power transmission of municipal and industrial key projects.

8. Warranty & After-sales Service

Q25: What is the warranty period and coverage for outdoor 1000kVA pad-mounted transformers?
A25: The standard warranty period is 1 year. For municipal grid projects, commercial cluster projects and batch engineering orders, the warranty period can be extended to 2–3 years free of charge. The warranty covers all manufacturing defects and original accessory quality faults. Failures caused by improper on-site operation, artificial damage, overload operation and unauthorized modification are excluded from the warranty scope.
Q26: Can you supply original spare parts after the warranty expires?
A26: We provide lifelong supply of original genuine spare parts for all sold 1000kVA pad-mounted transformers, including sealing accessories, protection devices and wearing parts, ensuring long-term safe and stable operation of outdoor power equipment and solving after-sales matching difficulties for municipal and industrial power projects.
Q27: What is the response speed of technical support and after-sales service?
A27: We provide 24/7 all-weather online technical support, responding to conventional faults and technical consultations within 1 hour. For on-site maintenance demands, professional engineers can be arranged to arrive at the site within 7–12 working days according to project regions. For sudden power supply faults of key projects, an emergency response mechanism is activated to minimize power outage losses.
Q28: What is your factory quality control system for pad-mounted transformers?
A28: We implement full-process ISO quality management system, focusing on the outdoor unattended and medium-high load operation characteristics of 1000kVA transformers. Strict quality control is carried out on sealing performance, anti-corrosion performance, loss parameters, insulation stability and short-circuit resistance. All equipment passes full-item factory tests including insulation, loss, noise and sealing tests before delivery. We support third-party factory audits and quality inspections by BV, SGS and other institutions to ensure compliance with global municipal and industrial power distribution standards.



Product parameters

Capacity: 1000KVA Pad Mounted Transformer
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 34.5kV,35kV;
Maximum operating voltage:38.5kV

Pad Mounted Transformer Technical Specification
RatedPower(KVA) H.V(KV) L.V(V) Loss(W) Dimension(CM) Weight(KG)
No-loadLoss (W) On-loadLoss (W) W D H Oil   Weight Total  Weight
75KVA 34.5KV
19.92KV
13.8KV
13.2KV
7.62KV
12.47KV
7.2KV
240V480V4
80Y/277V
600Y/347V
180 1250 1390 910 1430 120 645
112.5KVA 200 1500 1420 920 1430 138 729
150KVA 280 2200 1510 980 1530 201 989
225KVA 400 3050 1600 1000 1660 230 1195
300KVA 480 3650 1660 1080 1680 260 1415
500KVA 680 5100 1810 1160 1790 325 1905
750KVA 980 7500 2030 1300 2030 535 2755
1000KVA 1150 10300 1651 1549 1854 650 3235
1500KVA 1640 14500 2210 1470 2150 748 5835
2000KVA 2160 20645 2380 1600 2220 950 6430
2500KVA 2680 27786 2480 1650 2330 1020 8865

STANDARD COMPONENTS
Connections and neutral configurations
•     Delta - Wye: Low voltage neutral shall be a fully insulated X0 bushing with removable ground strap.
•     Grounded Wye-Wye: High voltage neutral shall be internally tied to the low voltage neutral and brought out as the H0X0 bushing in the secondary compartment with a removable ground strap.
•     Delta-Delta: Transformer shall be provided without a neutral bushing.
•     Wye-Wye: High voltage neutral shall be brought out as the H0 bushing in the primary compartment and the low voltage neutral shall be brought as the X0- bushing in the secondary compartment.
•     Wye-Delta: High voltage neutral shall be brought out as the H0 bushing in the primary compartment. No ground strap shall be provided (line to line rated fusing is required).

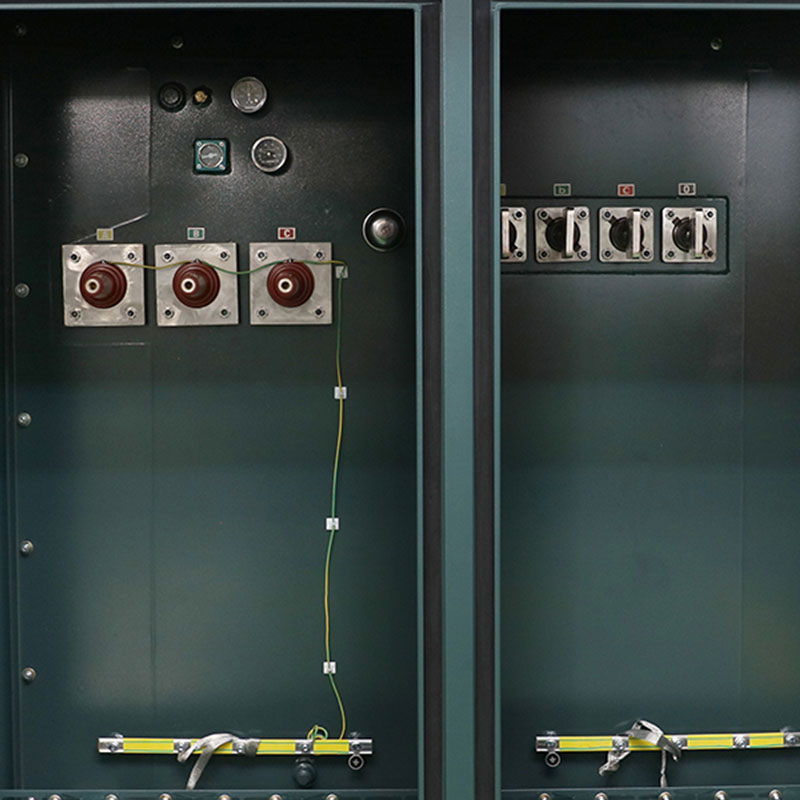

High and low voltage bushings
•     200 A bushing wells (15, 25, and 35 kV)
•     200 A, 35 kV Large Interface
•     600 A (15, 25, and 35 kV) Integral bushings (dead-front)
Electrical-grade wet-process porcelain bushings(live-front)

Tank/cabinet features
•    Bolted cover for tank access (45-2500 kVA)
•    Welded cover with hand hole (>2500 kVA)
•    Three-point latching door for security
•    Removable sill for easy installation
•    Lifting lugs (4)
•    Stainless steel cabinet hinges and mounting studs
•    Steel divider between HV and LV compartment
•    20" Deep cabinet (45-1000 kVA)
•    24" Deep cabinet (1500-7500 kVA)
•    30" Deep cabinet (34.5/19.92 kV)
•    Pentahead captive bolt
•    Stainless steel 1-hole ground pads (45-500 kVA)
•    Stainless steel 2-hole ground pads (750-10,000 kVA)
•    Parking Stands (dead-front)
Valves/plugs
•    One-inch upper filling plug
•    One-inch drain plug (45-500 kVA)
•    One-inch combination drain valve with sampling device in low voltage compartment (750-10,000 kVA)
•    Automatic pressure relief valve
Nameplate
•    Laser-scribed anodized aluminum nameplate

Ordering instructions
When ordering, the customer should provide the following information:
• Main loop scheme diagram and secondary loop system diagram.
• Electrical schematic diagram of auxiliary circuit and wiring terminal layout
• Equipment layout drawing, combination drawing, floor plan drawing.
• Brand, model, specification and quantity of main electrical components of the equipment.
• Incoming and outgoing lines and cable specifications.
• Equipment surface color (RAL chromatography).
• Other special requirements can be negotiated with Hengfengshuai Electric
