Product advantages

---

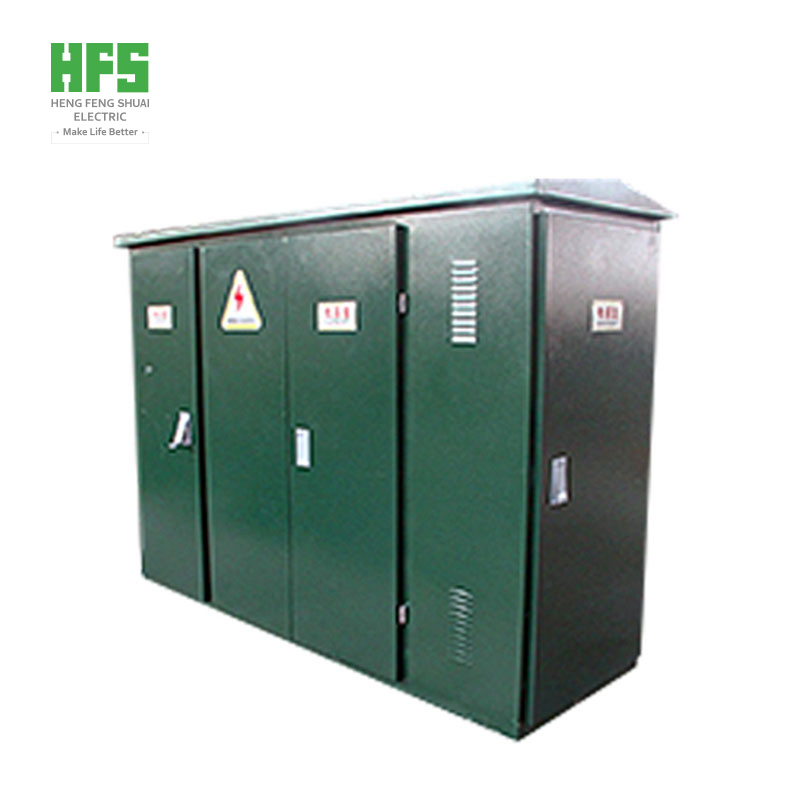

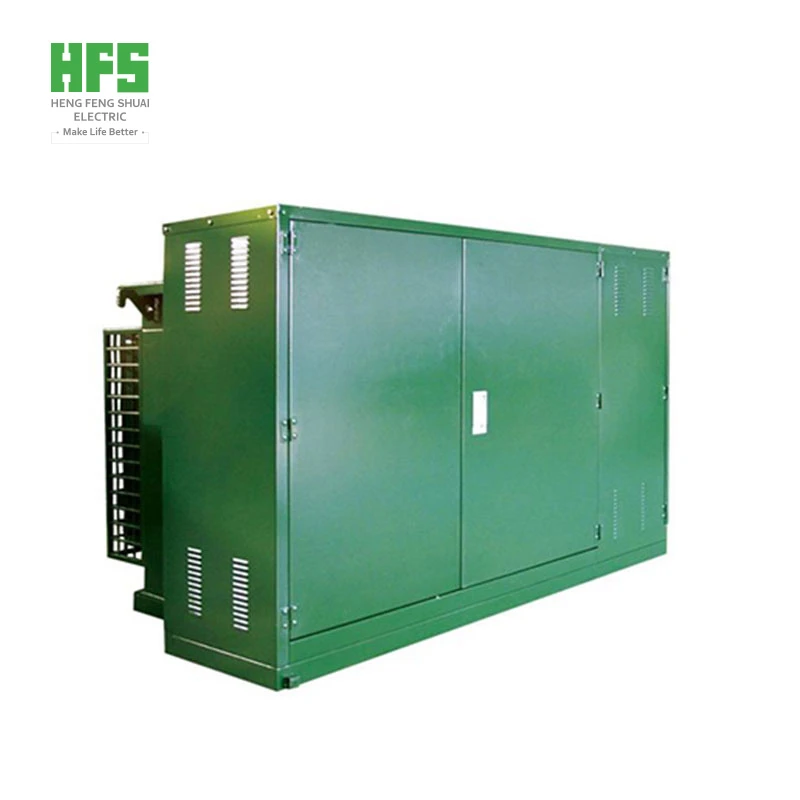

Why Choose Our  2500KVA Three Phase Pad Mounted Transformer?
Leading Technology
• Fully enclosed & insulated structure – safe and reliable operation
• Low loss, low noise, low temperature rise
• High overload capacity & strong short-circuit withstand capability

Flexible System Integration
• Supports terminal system or ring network system
• Easy configuration switch – improves power supply reliability

Heavy-Duty Enclosure
• Material: cold-rolled, hot-dip galvanized steel
• Laser-cut CNC drilled and bent panels
• Electrostatic spray coating –30 years paint life
• Core unit: low loss oil-immersed transformer from Hengfengshuai Electric

Precision Manufacturing
• Assembly technicians: minimum 6 months training
• Secondary wiring: automatic cutting for reliable connection
• Bolt tightening: power tools with precise torque control
• Copper busbar: CNC punched and bent
• 100% pre-delivery testing


Company Advantages – Built for Global Buyers
• Certifications |ISO, CE, CB, UL |
• Quality System | SQA management – guaranteed consistency |
• Fast Response | Quick quote + electrical design support |
• Delivery | Short lead time, worldwide shipping |
• After-Sales | Complete service system |
• Customization | OEM/ODM – factory visit welcome |

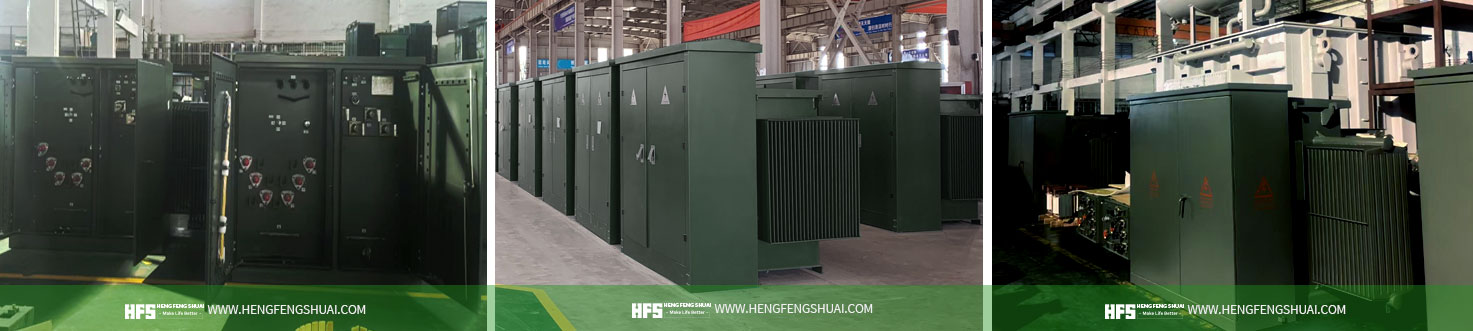

2500KVA Three Phase Pad Mounted Transformer Case
