As a vital island region in the South Pacific, American Samoa faces harsh conditions including high temperature and humidity, salt spray corrosion, frequent hurricanes, and challenges in island transportation. Its power grid upgrade has an urgent demand for large-capacity, highly reliable distribution equipment compliant with American standards. With years of experience in the R&D and manufacturing of transmission and distribution equipment and an international certification system, Hengfengshuai Electric provides a customized end-to-end solution for a 3000kVA-34.5kV-13.2kV pad-mounted transformer for American Samoa. Covering the entire chain of design, production, testing, packaging, transportation, installation, and operation and maintenance, the solution is highly adapted to local power grid standards and climatic conditions, ensuring the long-term stable operation of the island’s power grid.

I. Project Overview and Core Technical Parameters of the 3000kVA-34.5kV-13.2kV Pad-Mounted Transformer

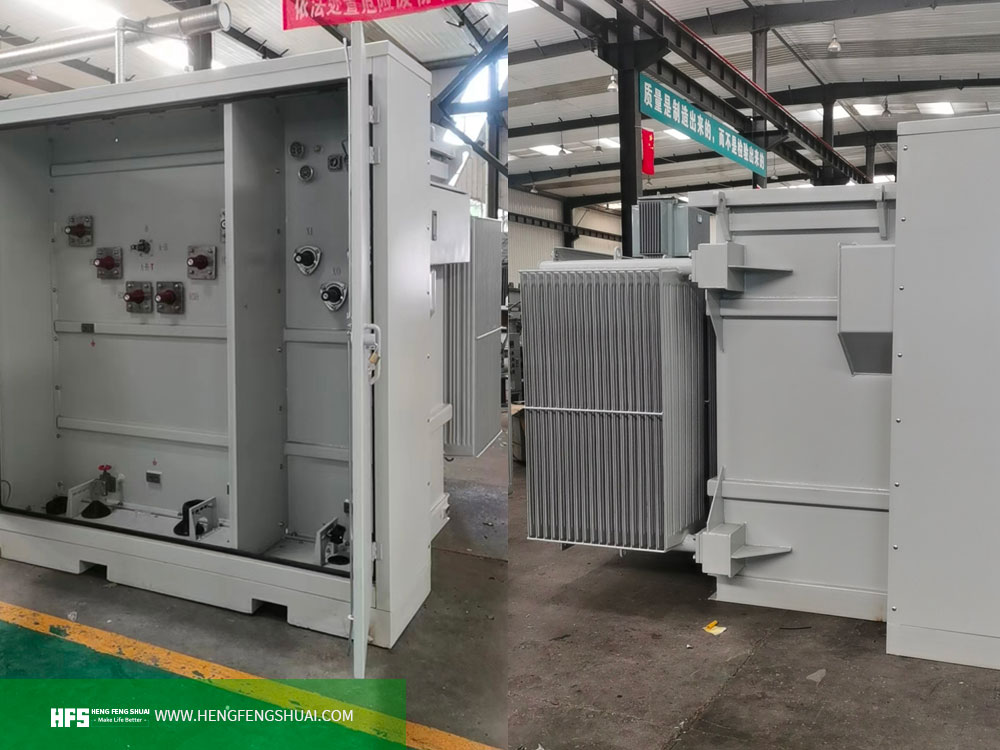

This solution is customized for scenarios such as industrial parks, commercial hubs, residential areas, and port terminals in American Samoa. The equipment adopts an integrated pad-mounted structure, integrating the transformer body, switches, fuses, tap changers, low-voltage distribution, and protection devices. It strictly complies with international standards including ANSI C57, IEEE, DOE, UL, CSA, and IEC, meeting the core requirements of American Samoa’s power grid for a 60Hz frequency, 34.5kV high-voltage input, and 13.2kV low-voltage output. It boasts advantages such as strong corrosion resistance, typhoon resistance, humidity and heat resistance, low loss, and maintenance-free operation.

Parameter Name	Technical Specification	Remarks
Model	ZGS Series Pad-Mounted Transformer	Integrated combined design
Rated Capacity	3000kVA	Continuous rated capacity
Voltage Combination	34.5kV/13.2kV	High voltage: 34.5kV; Low voltage: 13.2kV
Rated Frequency	60Hz	Compliant with American Samoa power grid standards
Maximum Operating Voltage	38.5kV (±2×2.5%)	Reserved voltage regulation margin
Vector Group	DYN11	Ensures stable low-voltage power distribution
Protection Class	Outdoor C5 Anti-Corrosion Grade	Adapted to island salt spray and high humidity environment
Applicable Standards	ANSI C57, IEEE, DOE2016, UL, CSA	Full international compliance
Applicable Environment	High temperature, high humidity, salt spray, typhoons, outdoor island conditions	Fully adaptable to all scenarios in American Samoa

II. Design and Development of the 3000kVA-34.5kV-13.2kV Pad-Mounted Transformer: Customized Solution for American Samoa

1. Electromagnetic and Environmental Adaptation Design

Tailored to the three key characteristics of American Samoa’s 60Hz power grid, high humidity and salt spray, and typhoon-prone climate, professional electromagnetic simulation software is used to accurately calculate losses, temperature rise, and short-circuit impedance, optimizing core and winding parameters. High-permeability oriented silicon steel is selected to reduce no-load loss, and the high-voltage winding adopts a multi-layer reinforced insulation structure to meet 34.5kV insulation coordination and short-circuit resistance requirements, ensuring long-term full-load and efficient operation of the equipment on the island.

2. Structural and Anti-Corrosion Drawing Design

A dedicated technical team is assembled to complete the design of a full set of construction drawings, focusing on:

• Core and Windings: Adapted to 60Hz frequency, optimized oil ducts and insulation thickness to enhance heat dissipation and insulation reliability.
• Insulation and Accessories: American-standard Eaton fuses, load switches, and tap changers are selected to meet DOE2016 energy efficiency requirements.
• Tank and Protection: Finite element strength verification via ANSYS, heavy-duty anti-corrosion coating plus sealed structure, passing salt spray tests to adapt to C5-level anti-corrosion for islands, with reserved typhoon-grade wind resistance, rain protection, and surge protection structures.

3. Design Review and Compliance Verification

A tripartite review involving technical, process, and quality teams is conducted to verify electromagnetic performance, structural strength, process feasibility, American standard compliance, and island environmental adaptability, ensuring the solution is implementable, certifiable, and stable in operation before proceeding to production.

III. Manufacturing of the 3000kVA-34.5kV-13.2kV Pad-Mounted Transformer: Full-Process Quality Control for Island Durability

1. Material Procurement and Full Inspection

A stringent SQA quality inspection system is implemented, with 100% re-inspection of core materials:

• Silicon Steel: High-permeability grade, tested for magnetic properties and dimensional accuracy.
• Conductors: T1 oxygen-free copper flat wire, ensuring conductivity and mechanical strength.
• Insulation Materials: Tested for moisture content and electrical strength, adapted to high humidity environments.
• Transformer Oil and Anti-Corrosion Materials: Temperature-resistant and anti-aging; sealants and coatings pass salt spray, humidity-heat, and UV triple tests.

2. Precision Manufacturing of Core Components

• Core: Precision cutting, deburring, insulation coating, six-stage step lap joint to reduce no-load loss and noise.
• Coils: Wound in a constant temperature and humidity clean workshop; multi-layer insulation for high-voltage windings, uniform arrangement for low-voltage windings; DC resistance and turns tested per unit.
• Tank: Kerosene leakage test after steel plate welding; sandblasting plus heavy-duty anti-corrosion coating, with qualified coating thickness and adhesion for long-term outdoor use on islands.

3. Assembly, Drying, and Final Assembly

• Precise assembly of the transformer core, silver-copper welding for leads, standard installation of accessories, and strict cleanliness control throughout the process.
• Three times of vacuum drying with qualified cumulative drying time to completely remove insulation moisture, enhancing insulation stability in high humidity environments.
• After final assembly, vacuum to ≤133Pa and hold for 24 hours, followed by vacuum oil filling to eliminate air bubbles and leakage, ensuring reliable internal insulation.

IV. Factory Acceptance Test (FAT) for the 3000kVA-34.5kV-13.2kV Pad-Mounted Transformer: Full Factory Compliance for Zero-Risk Delivery

1. Routine Tests

Full routine tests are mandatory for each unit before factory delivery to ensure qualified performance:

• Electrical Performance: Winding DC resistance, voltage ratio, and vector group testing.
• Insulation and Oil Quality: Insulation resistance, dielectric loss, oil breakdown voltage, moisture content, and chromatographic analysis.
• Operational Performance: No-load/load loss and temperature rise testing to verify efficiency under 60Hz operating conditions.
• Protection Function: Linkage testing of tap changers, fuses, and load switches.

2. Type and Special Tests

Customized special tests are conducted for American Samoa:

• Lightning Impulse Test: Resists strong lightning overvoltage on islands.
• Partial Discharge Measurement: Discharge ≤100pC for controllable insulation safety.
• Sound Level Measurement: Noise ≤60dB(A), suitable for residential and commercial areas.
• Environmental Simulation: Operation testing under high temperature, high humidity, and salt spray conditions to verify island reliability.

All data are archived, and a complete FAT report is issued and delivered with the equipment.

V. Packaging and Transportation of the 3000kVA-34.5kV-13.2kV Pad-Mounted Transformer: Island Cross-Sea Adaptation with Full Safety Control

1. Disassembly and Protection

• Disassemble accessories including radiators, elbow plugs, arresters, and cable connectors for separate packaging.
• Shock-absorbing buffers are installed on key components to withstand transportation bumps and impacts; 2 shock recorders are equipped for full-process monitoring.

2. Standardized Packaging

The main body is placed on a wooden cradle and covered with waterproof and rainproof cloth, while accessories are packed in solid wooden boxes. The boxes are marked with center of gravity, lifting points, moisture-proof, anti-inversion, and island transportation labels. A complete set of documents including certificates, FAT reports, operation manuals, and packing lists are included in the package.

3. Island Customized Transportation

Tailored to American Samoa’s cross-sea and land transportation characteristics, multi-axle semi-trailers are used. Transportation permits are obtained in advance, and optimal routes are planned to avoid weight-restricted sections. Three-dimensional shock recorders are installed throughout transportation to monitor vibration and impact in real time with traceable data, ensuring safe delivery to the site.

VI. On-Site Delivery and Installation of the 3000kVA-34.5kV-13.2kV Pad-Mounted Transformer: Standard Operation for One-Time Successful Commissioning

1. On-Site Unpacking and Acceptance

Joint handover with the owner: inspect appearance, leakage, and corrosion; verify accessories against the packing list; test nitrogen pressure and shock data; check certification documents and test reports to ensure compliance with American standards and local power grid requirements.

2. Standard Installation Procedures

• Positioning: Hydraulic equipment for precise positioning, ensuring levelness and installation height.
• Accessory Installation: Assemble radiators, bushings, and distribution modules per drawings, connect cables and control circuits.
• Vacuum Oil Filling: Use transformer oil adapted to island climate, strictly control oil temperature and filling speed.
• Static Exhaust: Hold for 48 hours after oil filling with multiple exhausts to eliminate internal air bubbles.

3. Site Acceptance Test (SAT)

Conduct tests in accordance with American Samoa power grid standards and international specifications:

• Re-inspect insulation and oil quality.
• Recheck winding DC resistance, voltage ratio, and vector group.
• Calibrate protection, cooling, and gas relays.
• Perform AC withstand voltage and winding deformation tests, compare with factory data to ensure no damage during transportation and installation.

4. Energization and Commissioning

After passing tests, perform 5 no-load closing operations to monitor excitation inrush current and protection action. After 24 hours of no-load operation without abnormalities, conduct load commissioning with on-site technical personnel on duty to ensure smooth grid connection.

VII. Full-Process Quality Control for the 3000kVA-34.5kV-13.2kV Pad-Mounted Transformer: Traceable at All Nodes

• Design: 100% compliance review with American standards and local requirements.
• Production: Material re-inspection, process testing, and cleanliness control.
• Factory Delivery: Full FAT acceptance; non-compliant units are not delivered.
• Transportation: Full-process shock data monitoring with archived traceable records.
• On-Site: SAT tests compared with factory data for undiminished performance.

Chinese-English technical documents are delivered, including certificates, FAT/SAT reports, installation and maintenance manuals, accessory instructions, and electronic drawings to support local operation and maintenance.

VIII. Solution Summary

Hengfengshuai Electric’s complete solution for the 3000kVA-34.5kV-13.2kV pad-mounted transformer in American Samoa is not just equipment delivery, but a customized power supply guarantee solution deeply aligned with American Samoa’s power grid standards, tropical marine climate, and island logistics conditions. With a mature manufacturing system, strong R&D capabilities, global delivery experience, and full international certifications, we provide safe, efficient, durable, and maintenance-free distribution equipment for American Samoa, supporting local power grid upgrades and economic development.
For customized inquiries, quotations, and technical solutions for pad-mounted transformers in American Samoa and the South Pacific region, please contact us for exclusive services. (hfs@hengfengshuai.com)
